Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

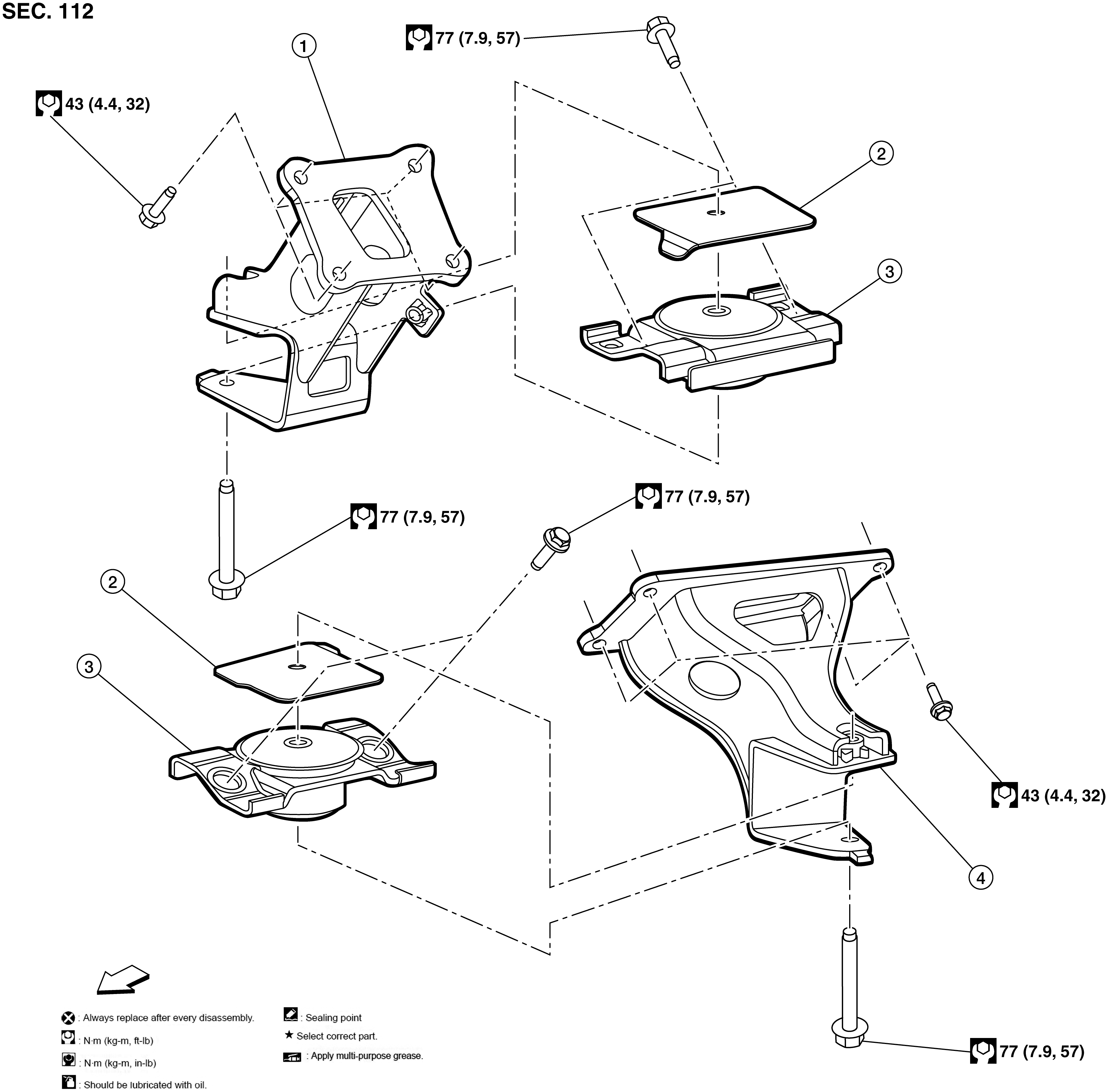

Fig 1: Engine Assembly With Torque Specifications
GNSAWBIA2854Z-854Courtesy of NISSAN NORTH AMERICA, INC.

1.

Engine mounting bracket (RH)

2.

Engine mounting insulator

3.

Heat shield plate

4.

Engine mounting bracket (LH)

SYMBOL

Front
