Thrust Distance

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

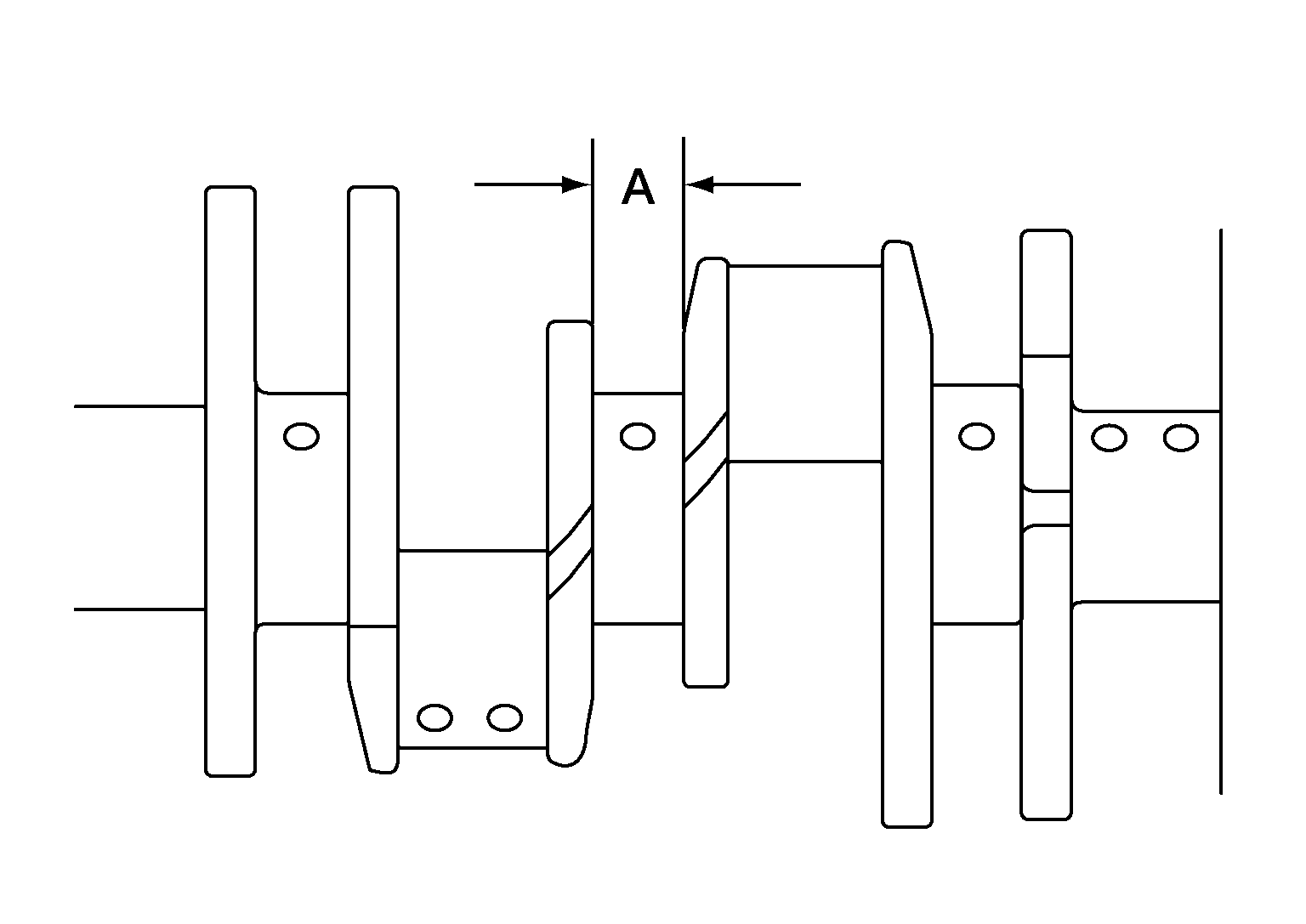

Measure the thrust distance.

GNSALBIA2555Z-555

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

If the thrust distance (A) is not within specifications, the crankshaft must be replaced.
Oversize thrust bearings are not available. If the thrust distance is not within specifications, replace the crankshaft.
The thrust bearing surfaces are located at the number 3 crankshaft main bearing journal.

Standard

: Refer to CRANKSHAFT .
