Crankshaft Journal Diameter

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

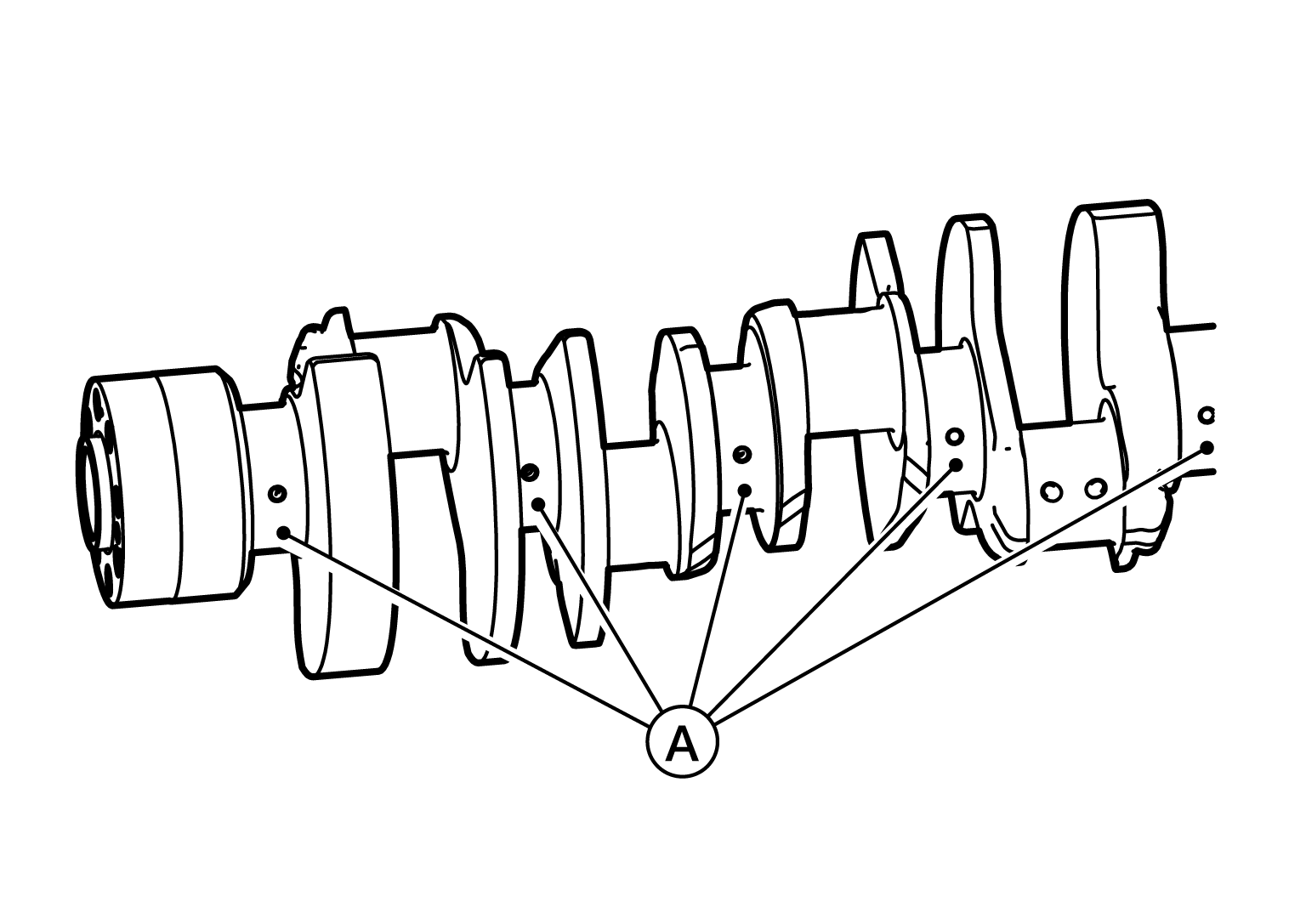

Measure diameter of crankshaft journals (A).

Courtesy of NISSAN NORTH AMERICA, INC.

Standard

: Refer to CRANKSHAFT .

If measurement is out of standard, measure the main bearing oil clearance. Then use the undersize bearing.

Use a suitable tool to measure all crankshaft journals.

Courtesy of NISSAN NORTH AMERICA, INC.

Standard

: Refer to CRANKSHAFT .

NOTE: If the crankshaft connecting rod journals are not within the given specifications, the crankshaft must be replaced. Oversize connecting rod or main bearings are not available.

Check the bearing clearance of the connecting rod to the crankshaft.

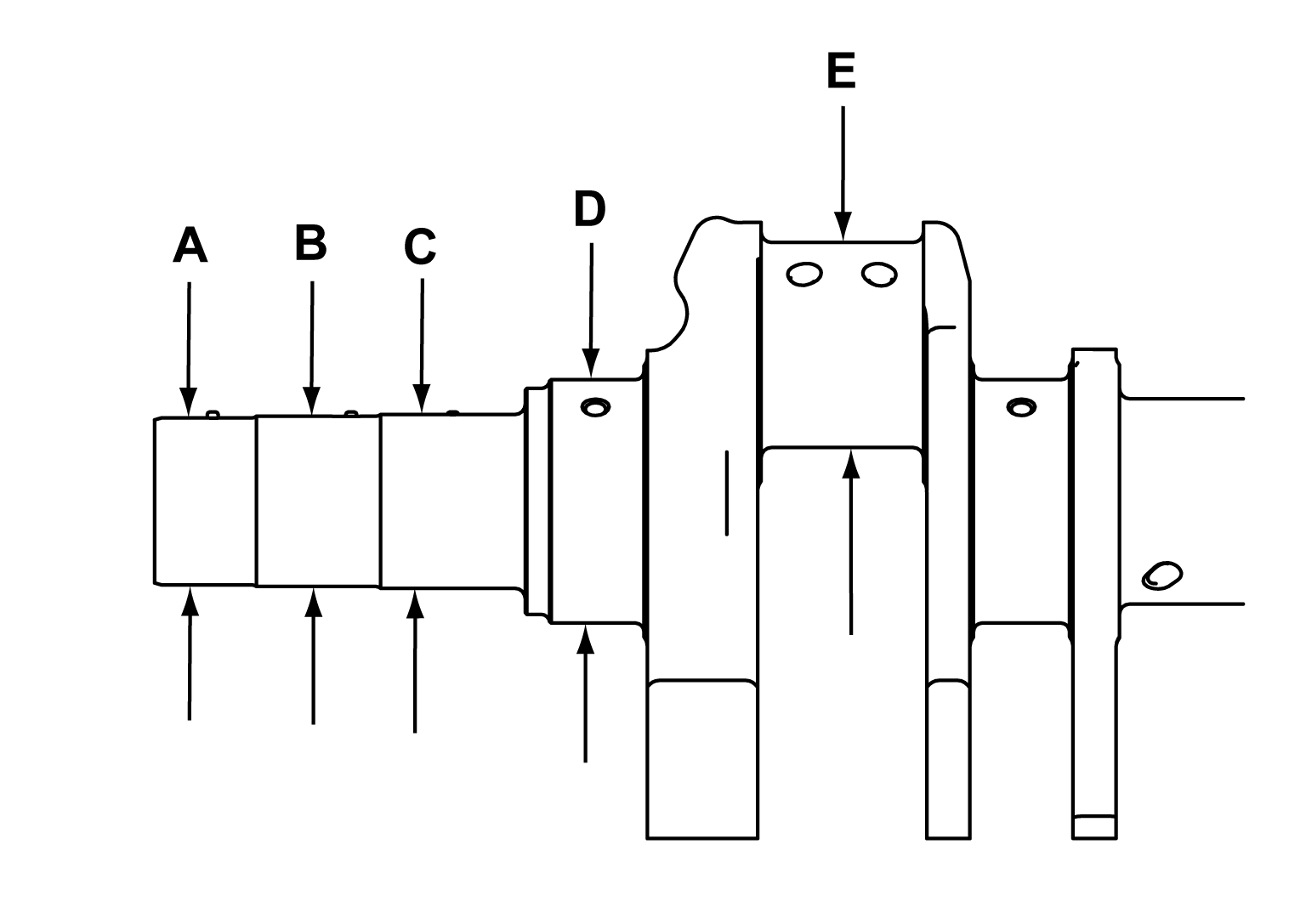

(A)	: Crankshaft vibration damper journal
(B)	: Crankshaft sprocket (oil/fuel pump) journal
(C)	: Crankshaft sprocket (camshaft) journal
(D)	: Main bearing journal
(E)	: Connecting rod journal

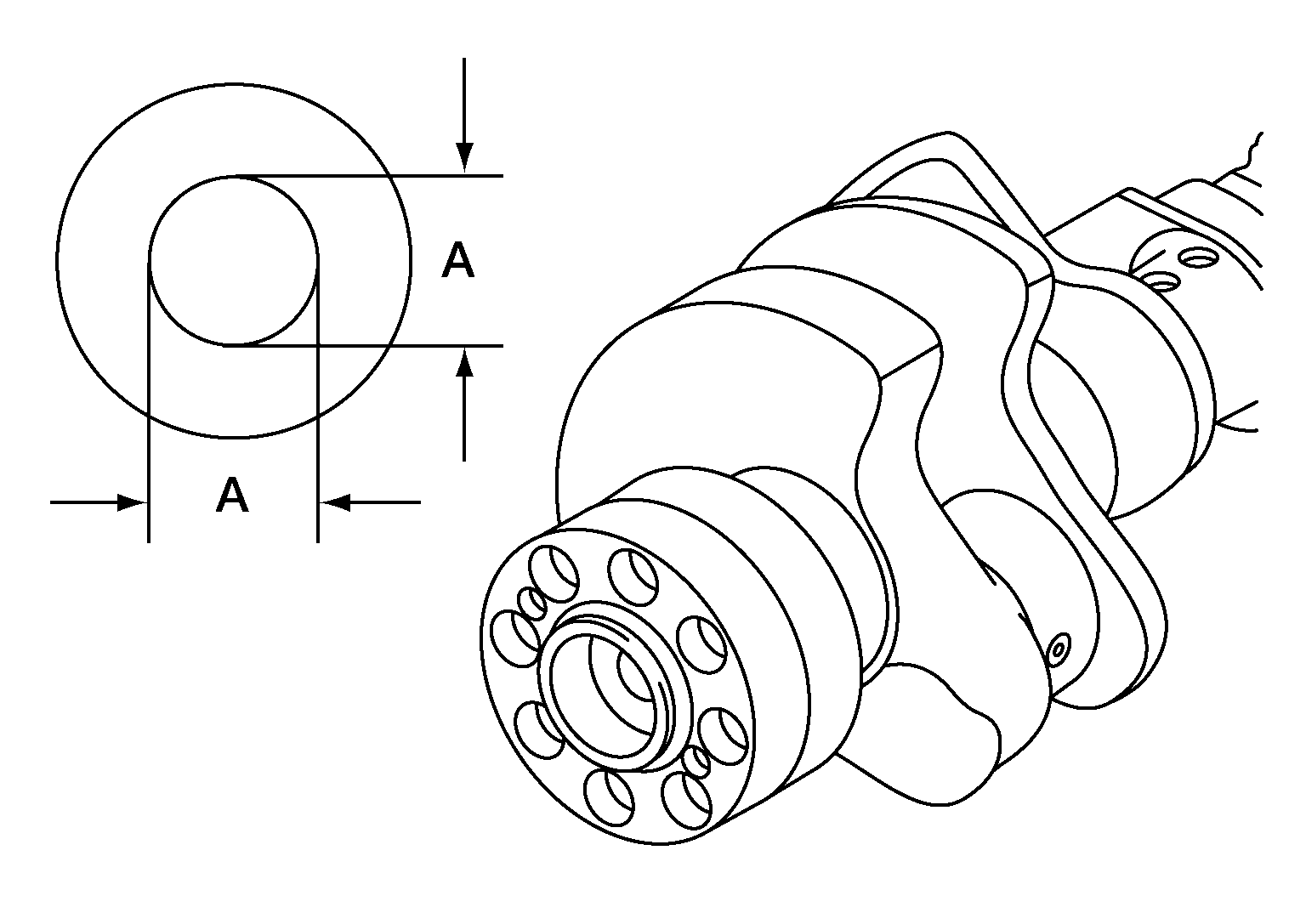

Measure the rear oil seal flange outside diameter (A).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: If the rear seal flange area is not within specifications, replace the crankshaft.

Standard

: Refer to CRANKSHAFT .
