Crankshaft End Play

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

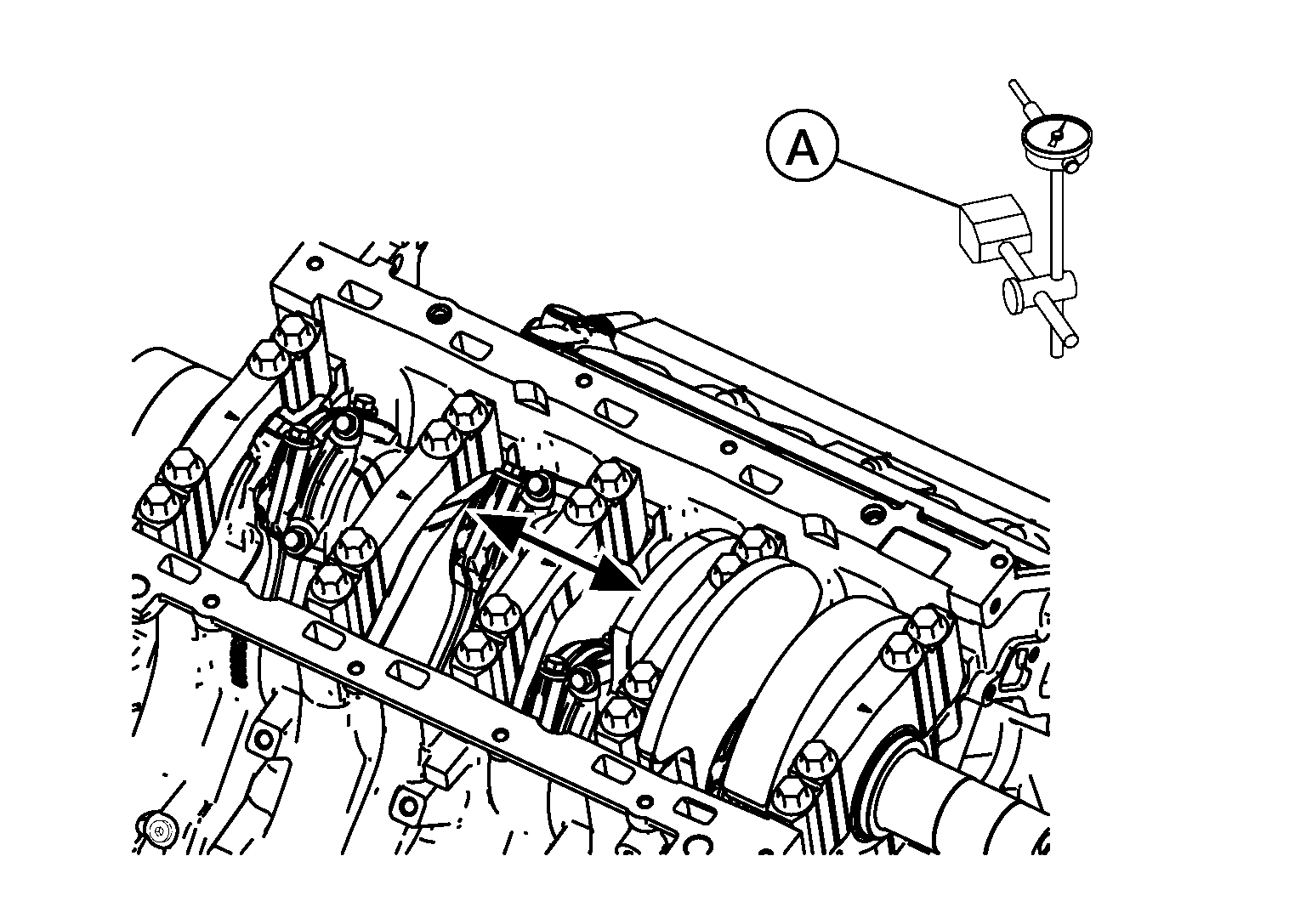

Measure the crankshaft end clearance using suitable tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

Measurements can be taken from either the front or rear face of the crankshaft.
The dimensions of the thrust bearing and crankshaft journal determine end clearance.
If the crankshaft end clearance is not within specification, make sure to inspect the crankshaft and thrust bearing surfaces for damage.
If measured value exceeds the specification, replace the thrust bearings and measure again. If it still exceeds the specification, replace crankshaft also.

Standard

: Refer to CRANKSHAFT .
