Connecting Rod Bushing Oil Clearance (Small End)
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Connecting Rod Bushing Inner Diameter (Bushing Installed)

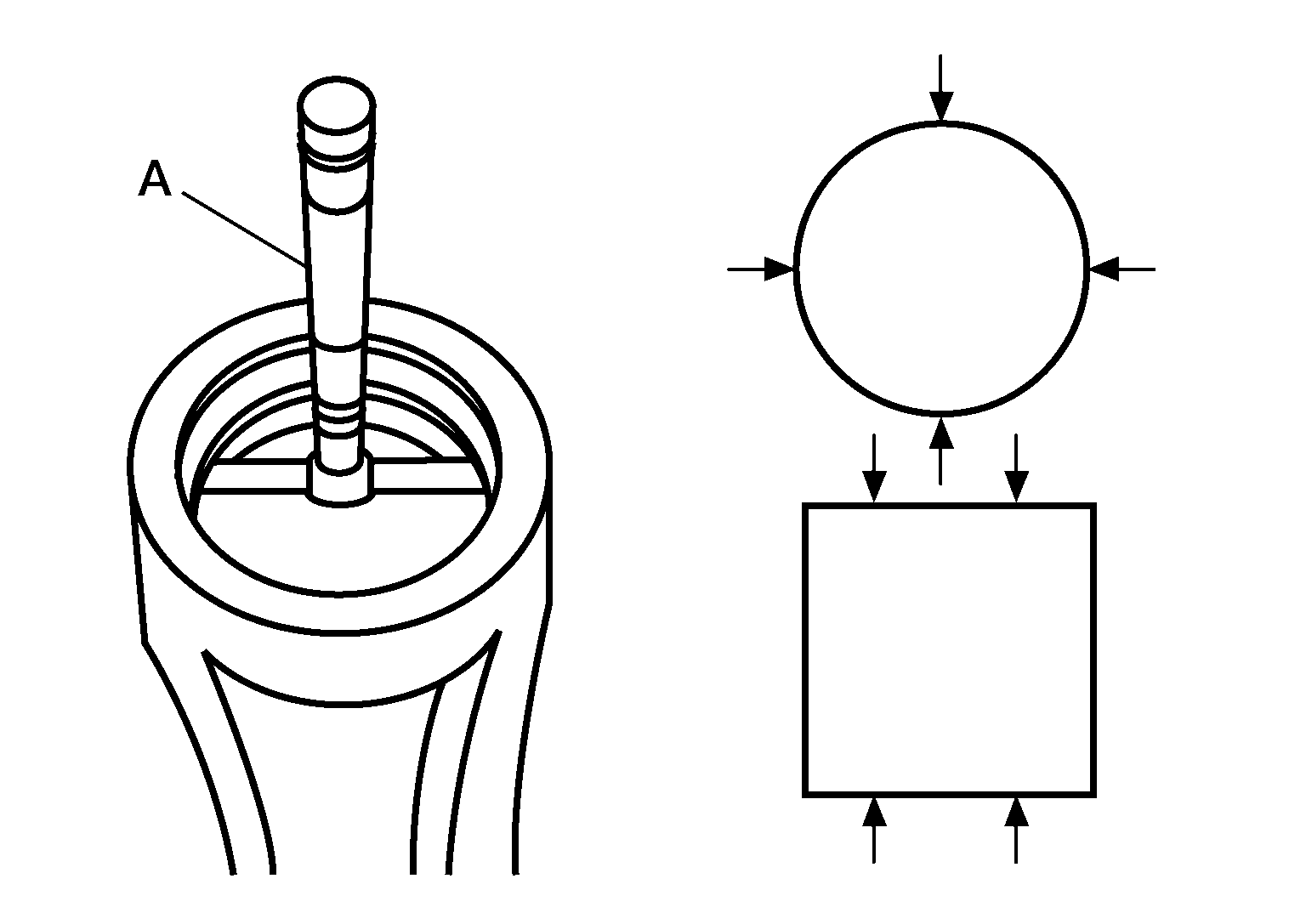

- Measure the connecting rod piston pin bushing inside diameter using suitable tool (A).
Standard
: Refer to CONNECTING ROD .
NOTE: If the bushing is found to be damaged or out of specification, replace the connecting rod assembly.
Connecting Rod Bushing Oil Clearance (Small End)
(Connecting rod small end oil clearance) = (Inside diameter of connecting rod small end) - (Piston pin diameter)
|
Standard |
: Refer to CONNECTING ROD . |
