Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

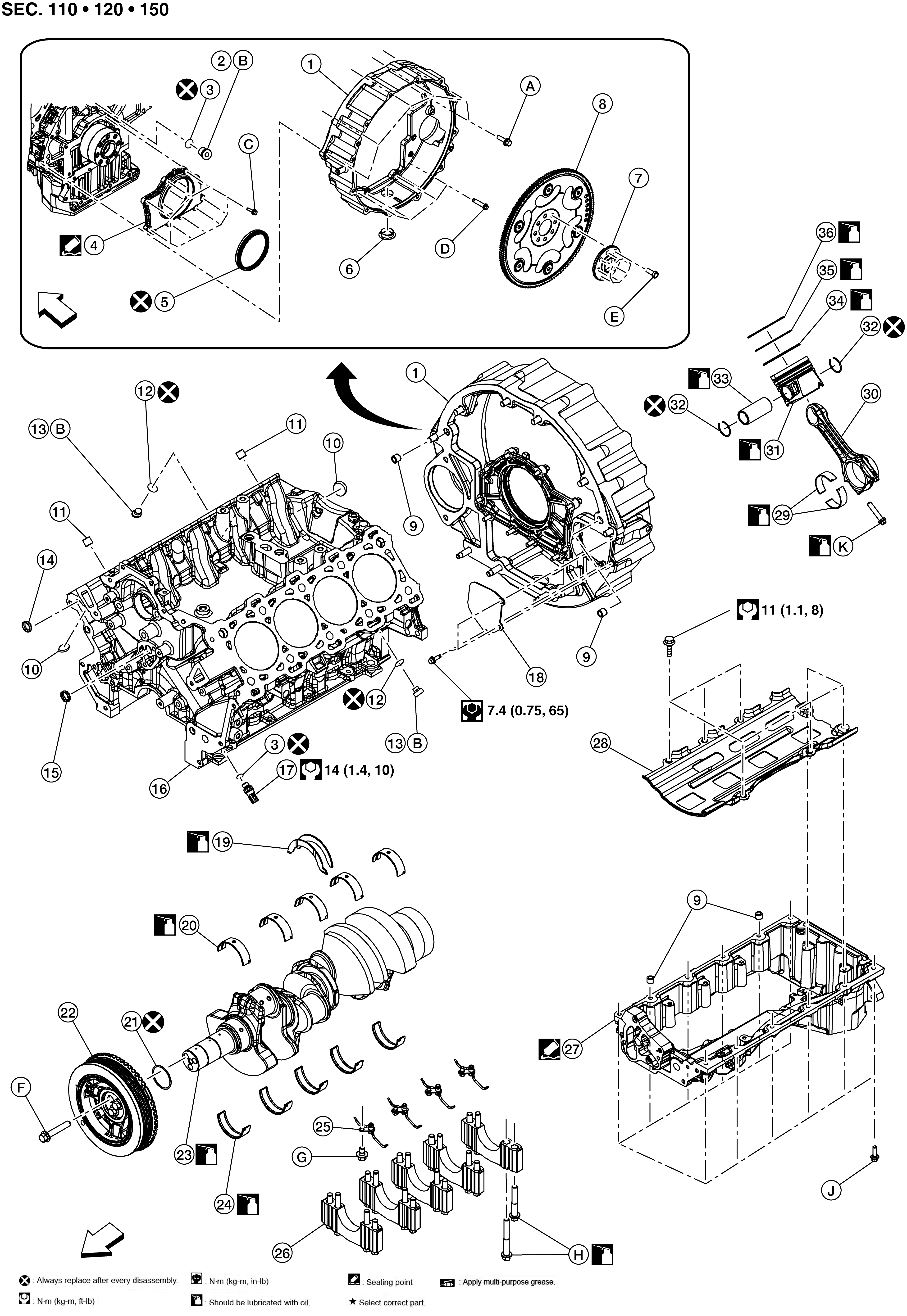

Fig 1: Engine Unit With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Flywheel housing	2.	Drain plug	3.	O-ring
4.	Seal carrier	5.	Rear oil seal	6.	Plug
7.	Spacer	8.	Flexplate	9.	Dowel
10.	Welch plug	11.	Dowel pin	12.	O-ring
13.	Drain plug	14.	Welch plug	15.	Welch plug
16.	Cylinder block	17.	Oil pressure sensor	18.	Access cover
19.	Thrust bearing	20.	Main bearing (upper)	21.	O-ring
22.	Vibration damper	23.	Crankshaft	24.	Main bearing (lower)
25.	Oil jet	26.	Main bearing cap	27.	Block stiffening plate
28.	Windage tray	29.	Connecting rod bearing	30.	Connecting rod
31.	Piston	32.	Snap ring	33.	Piston pin
34.	Oil ring	35.	Second ring	36.	Top ring
A.	Refer to Removal and Installation .	B.	Refer to ASSEMBLY	C.	Refer to Removal and Installation .
D.	Refer to Removal and Installation .	E.	Refer to Removal and Installation .	F.	Refer to Removal and Installation .
G.	Refer to ASSEMBLY	H.	Refer to ASSEMBLY	J.	Refer to Removal and Installation .
K.	Refer to ASSEMBLY		Front
