Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This valve guide seal replacement procedure is to be completed one cylinder at a time.

Remove the rocker arm. Refer to Removal and Installation .

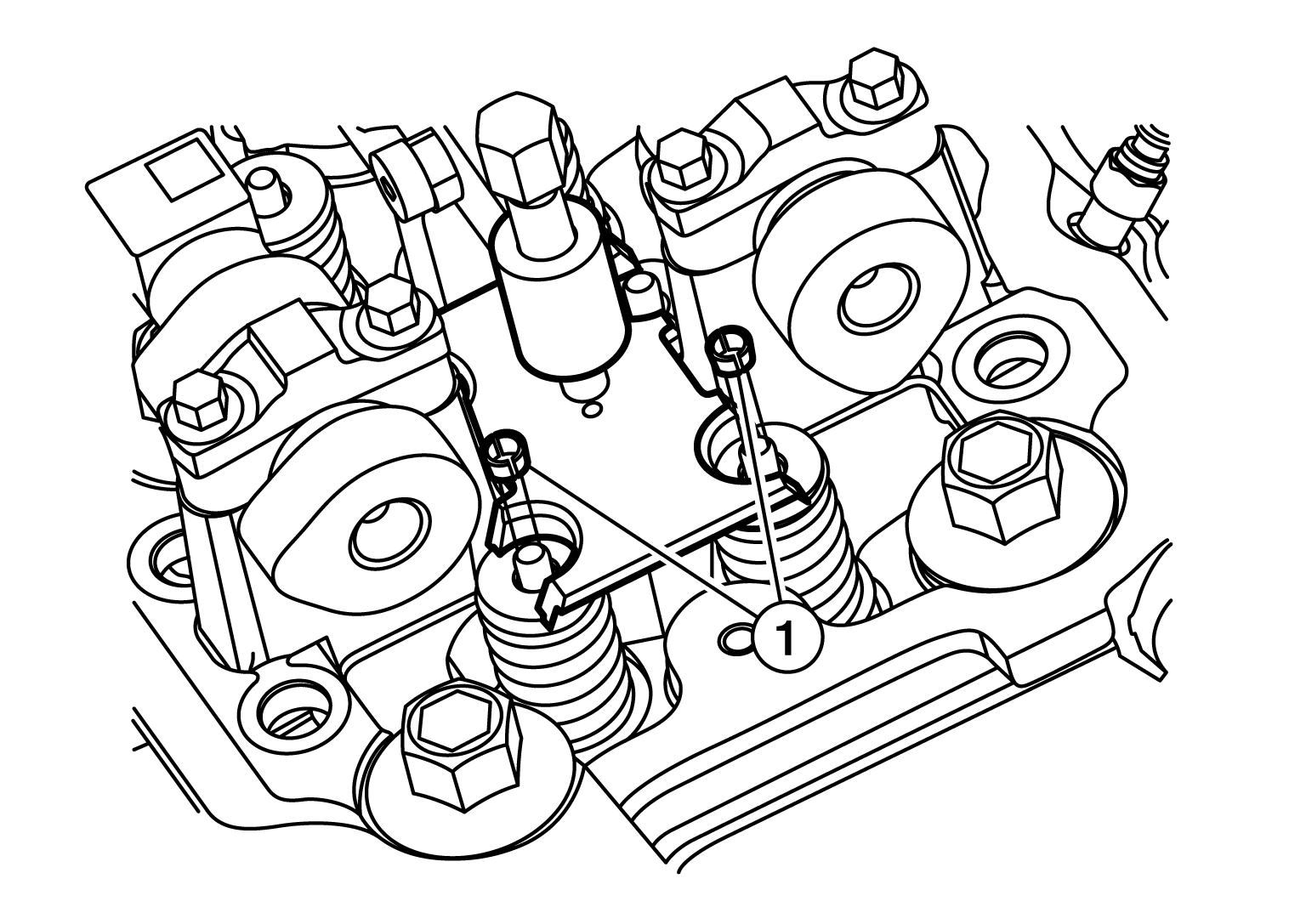

Remove the valve collets (1) with a magnetic tool. Use care not to drop the valve collets into the cylinder head.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: To avoid possible damage to the valves, do not bar the engine over while the valve collets are removed.

NOTE: Use a lint-free cloth to cover openings in the cylinder head to prevent the valve collets from falling into the engine.

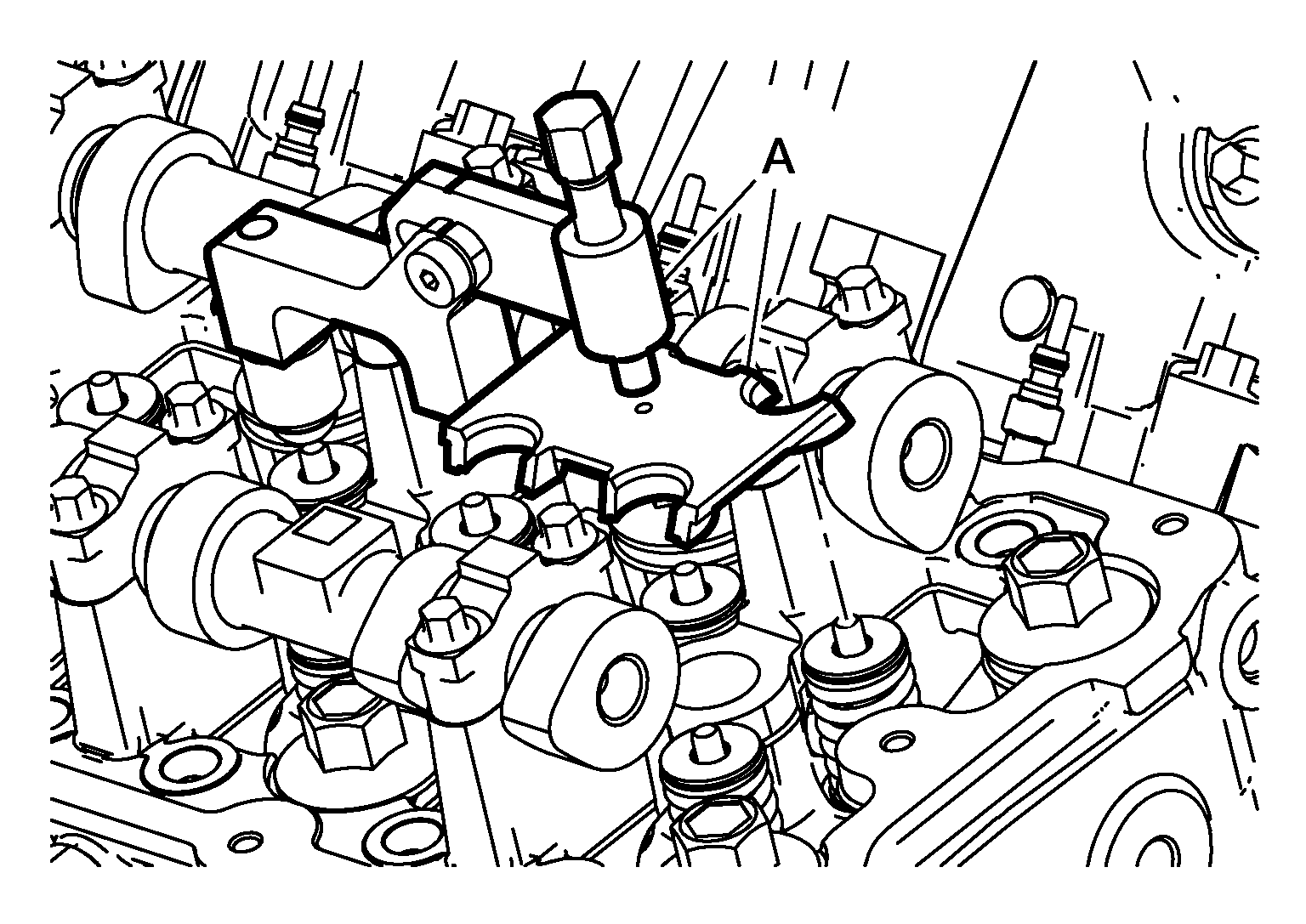

Remove the suitable tool (A).

Courtesy of NISSAN NORTH AMERICA, INC.

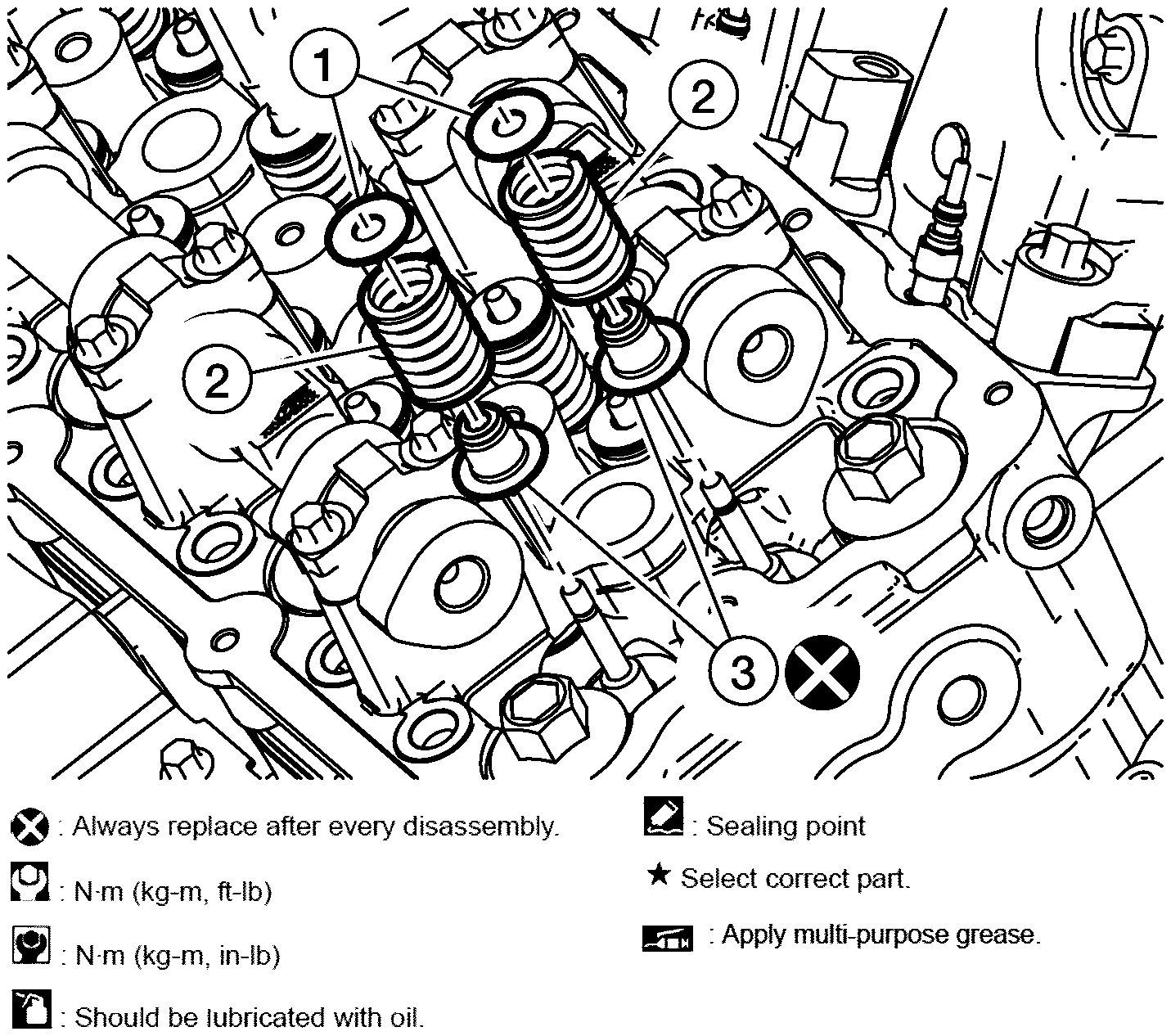

Remove the valve spring retainers (1) and valve springs (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the valve guide seals (3).
CAUTION: Do not reuse valve guide seal.
