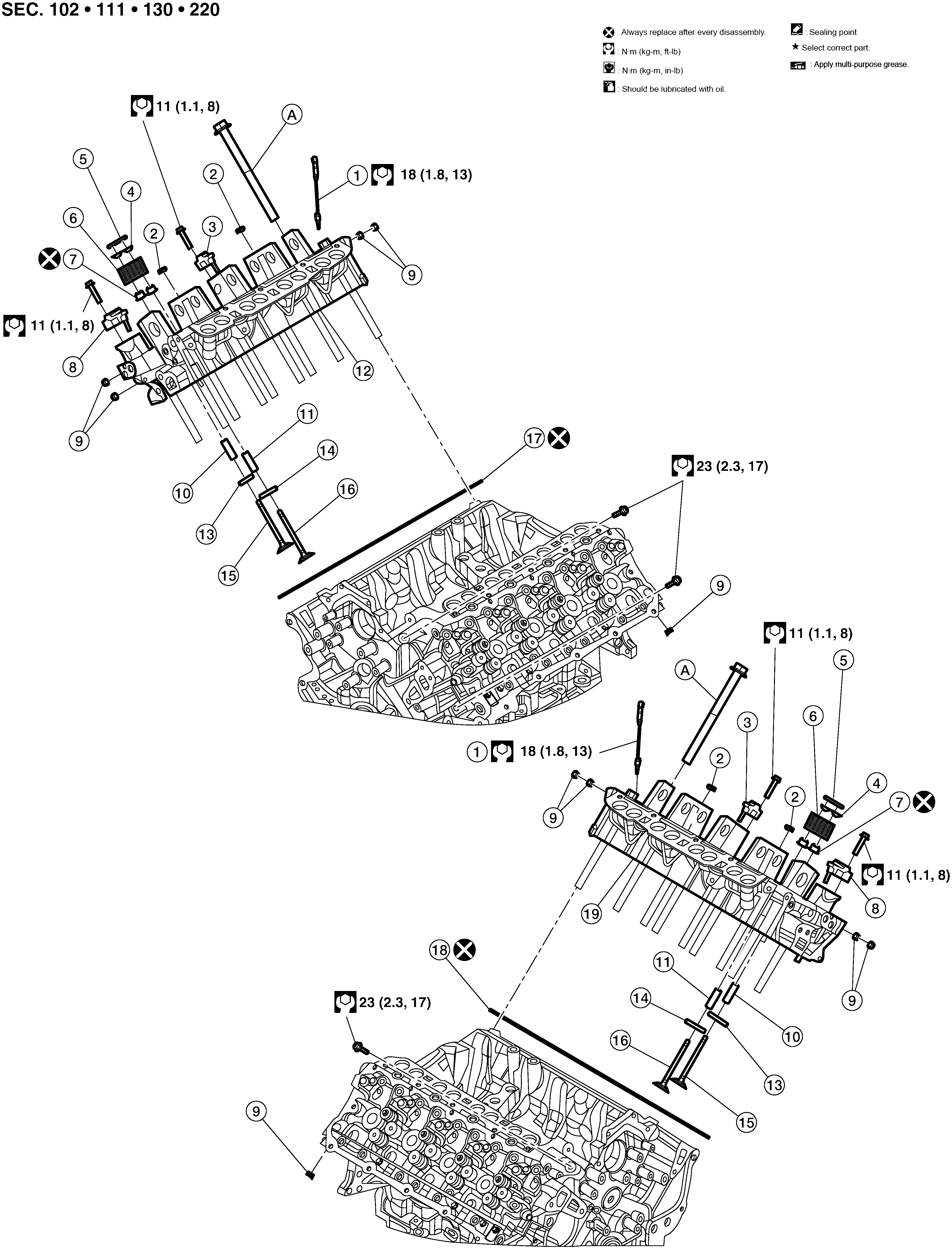

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Glow plug |
2. |
Welch plug |
3. |
Camshaft cap |
|
4. |
Valve spring retainer |
5. |
Valve collet |
6. |
Valve spring |
|
7. |
Valve guide seal |
8. |
Camshaft cap |
9. |
Welch plug |
|
10. |
Exhaust valve stem guide |
11. |
Intake valve stem guide |
12. |
Cylinder head (bank 1) |
|
13. |
Exhaust valve insert |
14. |
Intake valve insert |
15. |
Exhaust valve |
|
16. |
Intake valve |
17. |
Cylinder head gasket (bank 1) |
18. |
Cylinder head gasket (bank 2) |
|
19. |
Cylinder head (bank 2) |
A. |
Refer to INSTALLATION |
CAUTION:
Valve collet and valve (intake or exhaust) are serviced as an assembly.
