Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Remove the fan spacer and fan pulley. Refer to Removal and Installation .

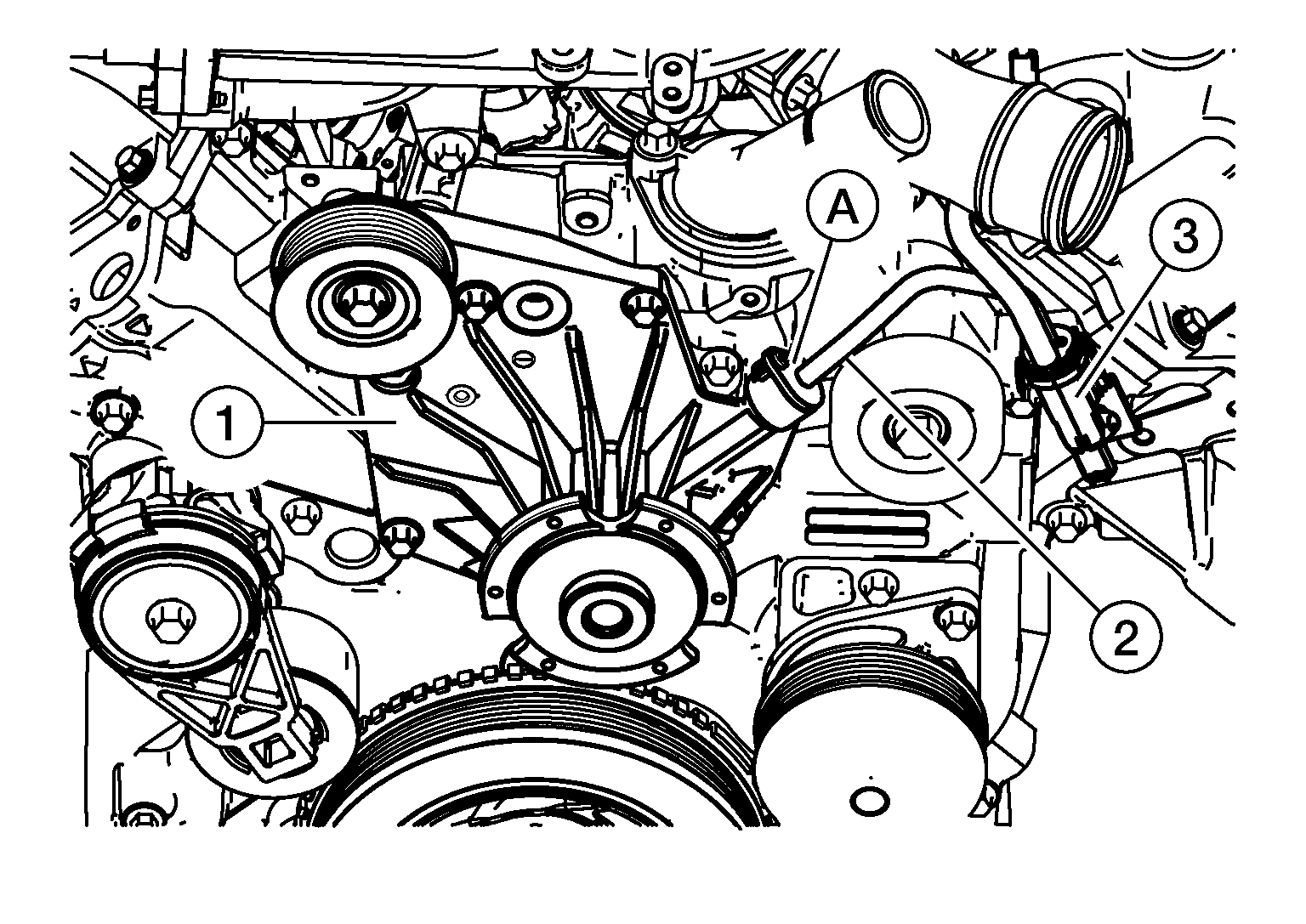

Disconnect the vacuum hose (2) from the vacuum pump port (A).

Courtesy of NISSAN NORTH AMERICA, INC.

(1)

: Vacuum pump assembly
If necessary, disconnect the vacuum tube from the turbocharger compressor bypass solenoid (3).

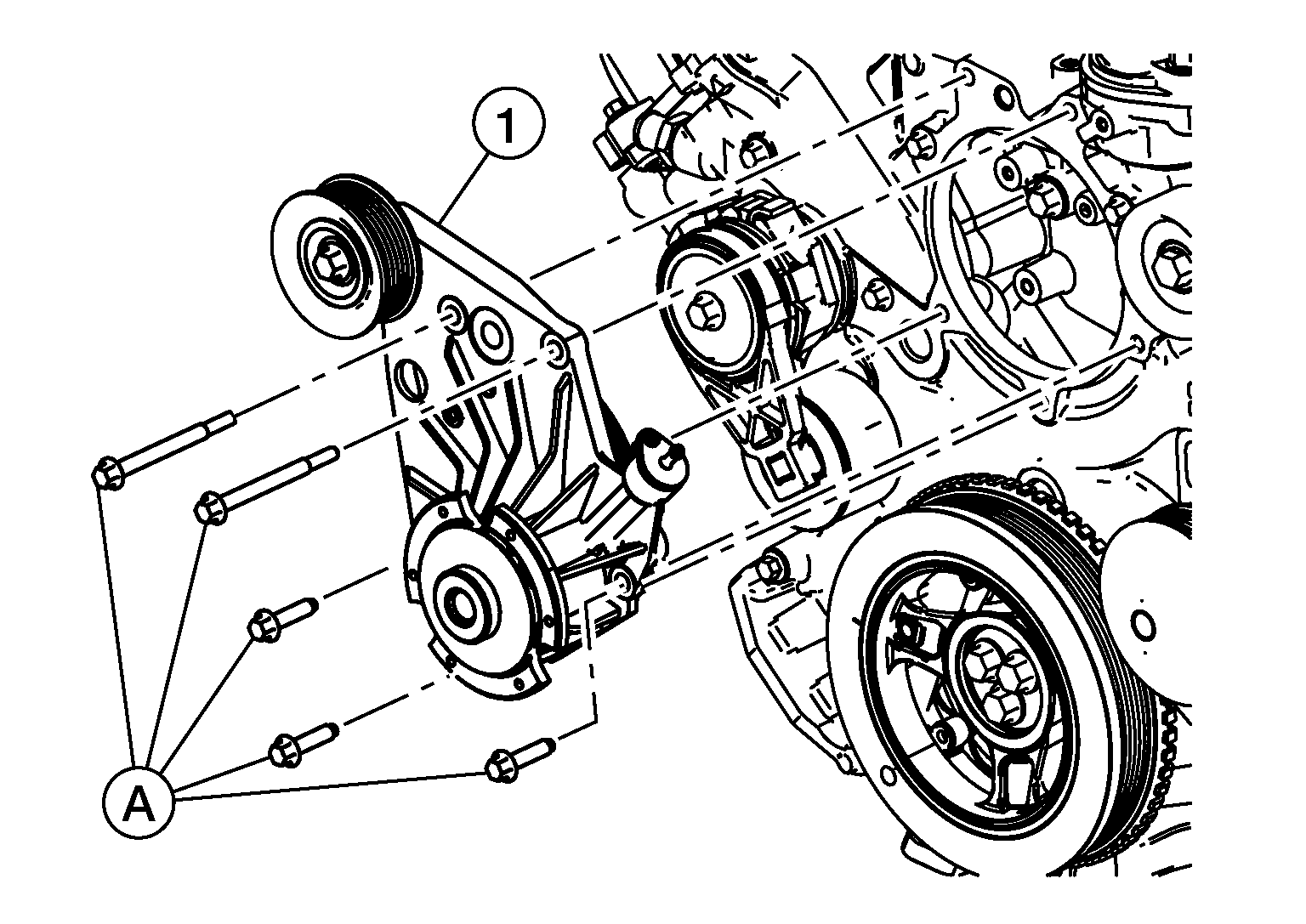

Remove the bolts (A) and remove the vacuum pump assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the idler pulley (if necessary).
