Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

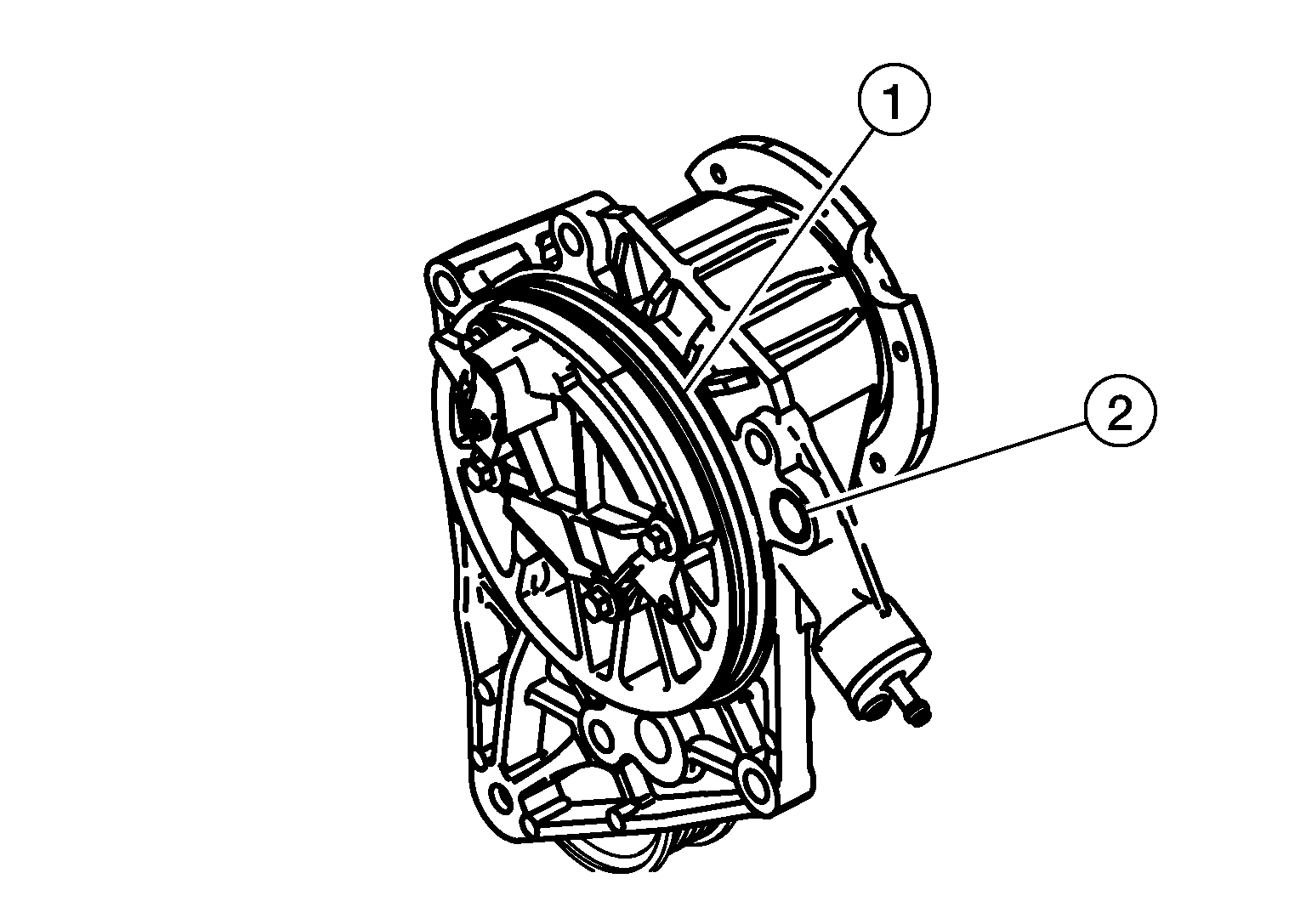

Apply clean engine oil to the vacuum pump O-ring (1) and install a new gasket (2).

Courtesy of NISSAN NORTH AMERICA, INC.

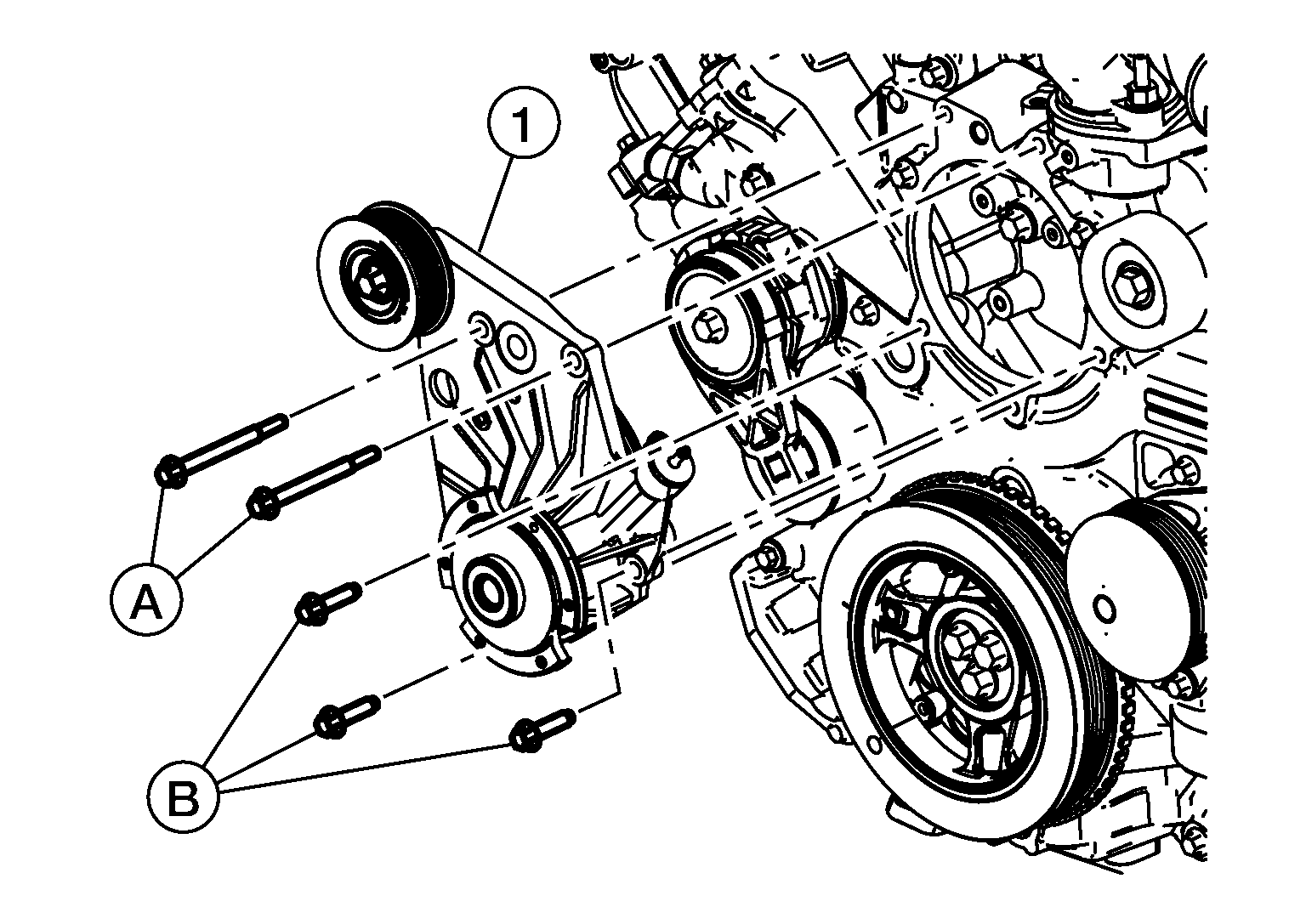

Install the vacuum pump (1) into the front cover and hand start the bolts (A and B).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: During installation of vacuum pump assembly, press the pump straight into the bore. Do not allow pump to rock back and forth from side-to-side as this can damage the O-ring.

NOTE:

Before installing the bolts, apply Loctite 242 or equivalent to the threads of the vacuum pump bolts.

Bolts (A)	: 18 N.m (1.8 kg-m, 13 ft-lb)
Bolts (B)	: 23 N.m (2.3 kg-m, 17 ft-lb)

Connect the vacuum hose (2) to the vacuum pump port (A).

Courtesy of NISSAN NORTH AMERICA, INC.

Reconnect the vacuum hose to the turbocharger compressor bypass solenoid (3) (if necessary).

(1)

: Vacuum pump assembly

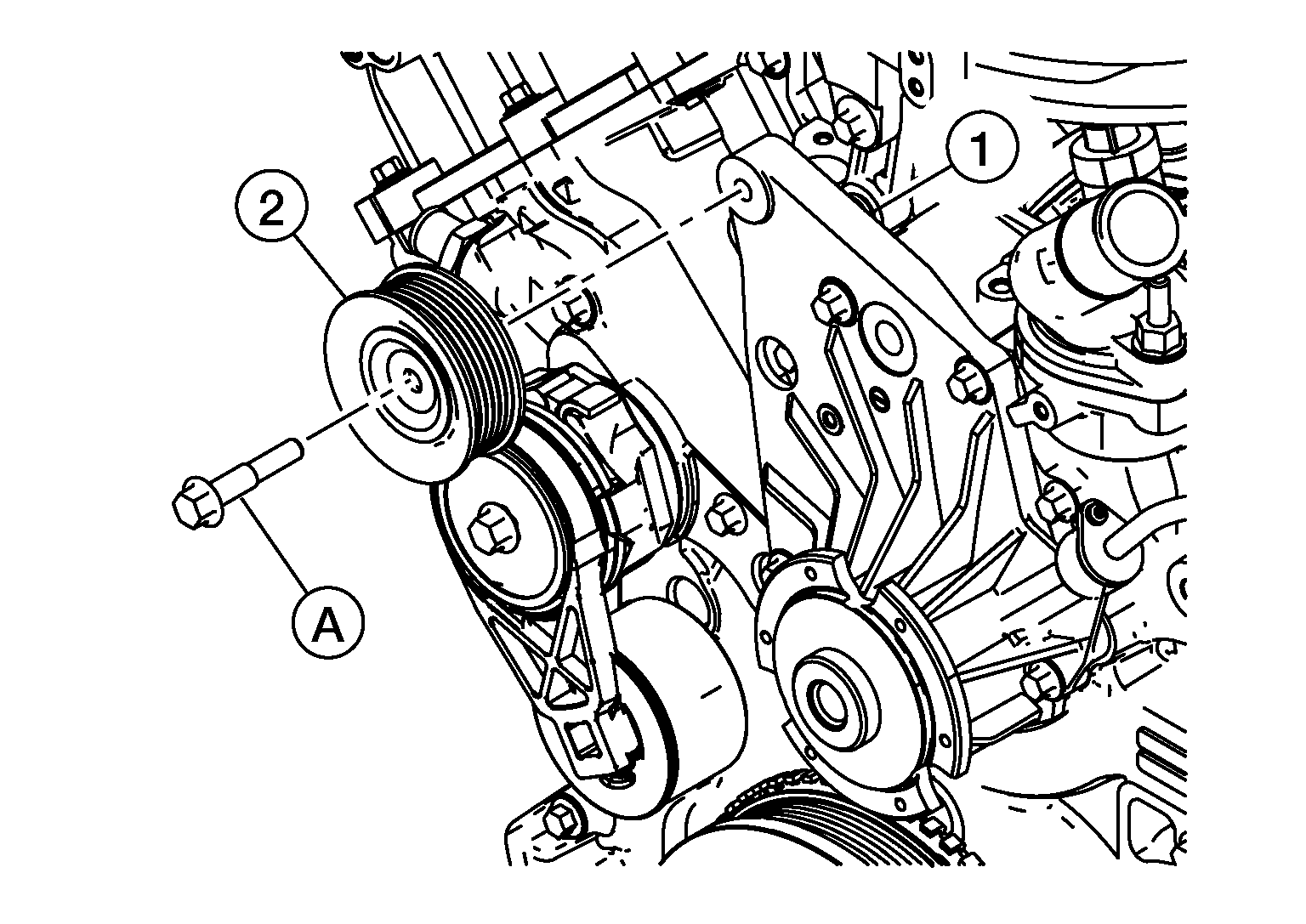

If the idler pulley (2) was removed, install the idler pulley and bolt (A) onto the vacuum pump assembly (1).

Courtesy of NISSAN NORTH AMERICA, INC.

Bolt (A)

: 35 N.m (3.6 kg-m, 26 ft-lb)

Installation of the remaining components is in the reverse order of removal.
