Inspection Before Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

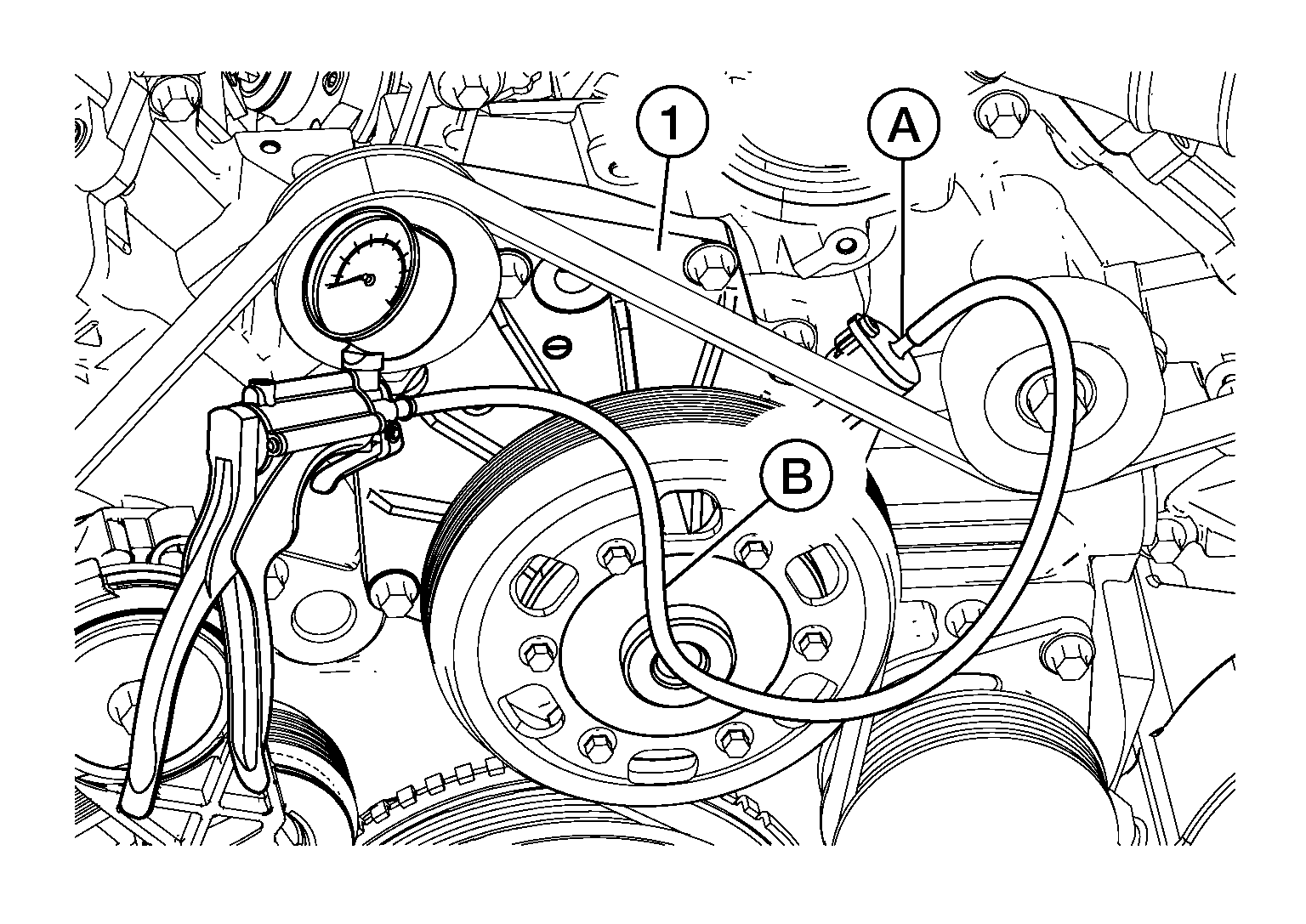

The vacuum pump (1) must produce enough vacuum to overcome the compressor bypass valve actuator spring. If the vacuum pump does not produce enough vacuum, the compressor bypass valve will not open.

Courtesy of NISSAN NORTH AMERICA, INC.
Connect a suitable tool (B) to the vacuum pump inlet (A).

Start the engine. With the engine running at idle, observe the vacuum produced by the pump.

Required Vacuum (minimum)

: -40 kPa (-0.41 kg/cm ² , -5.8 psi)
