Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

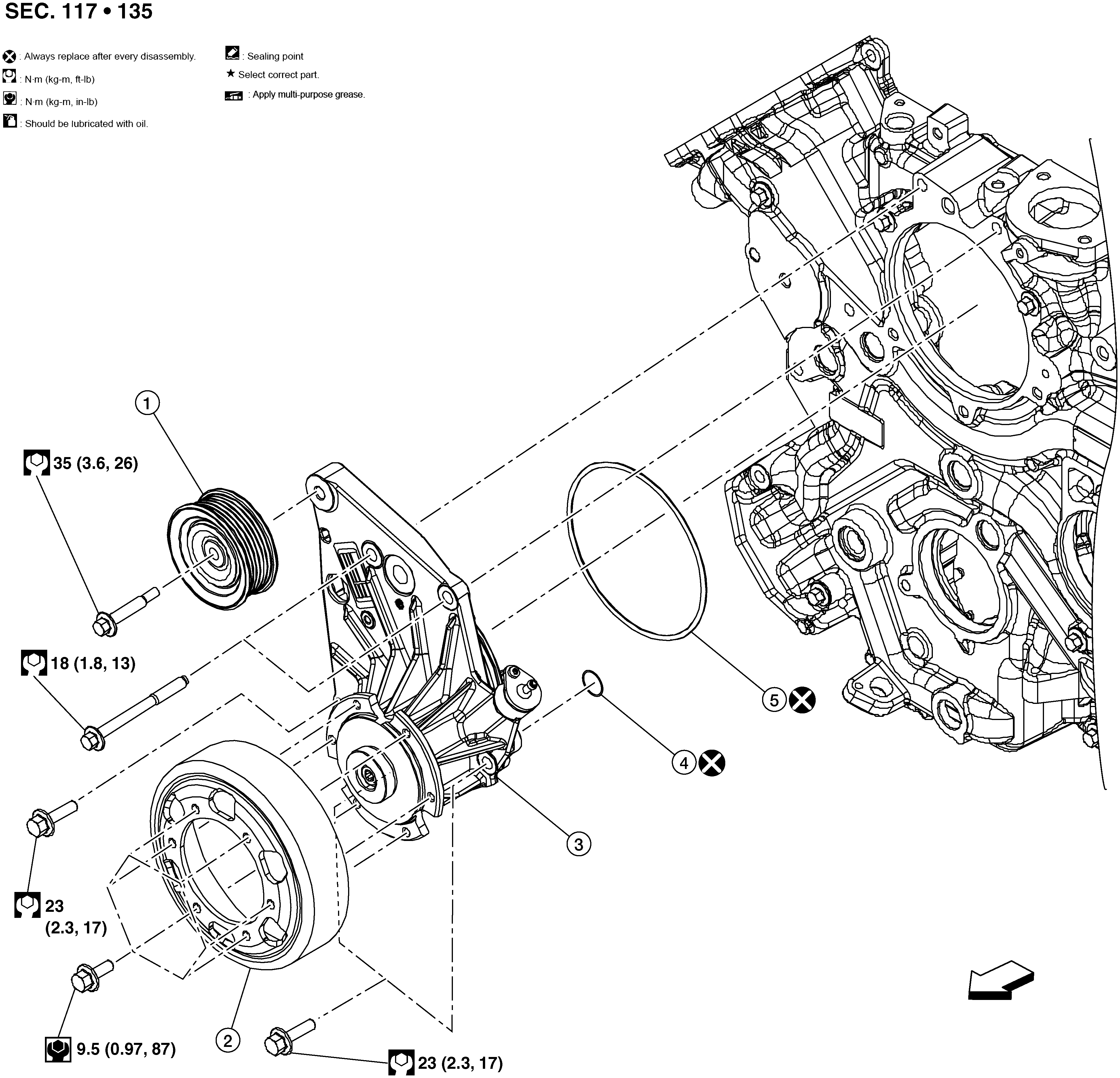

Fig 1: Vacuum Pump With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Idler pulley	2.	Fan spacer and pulley	3.	Vacuum pump
4.	O-ring	5.	O-ring		Front
