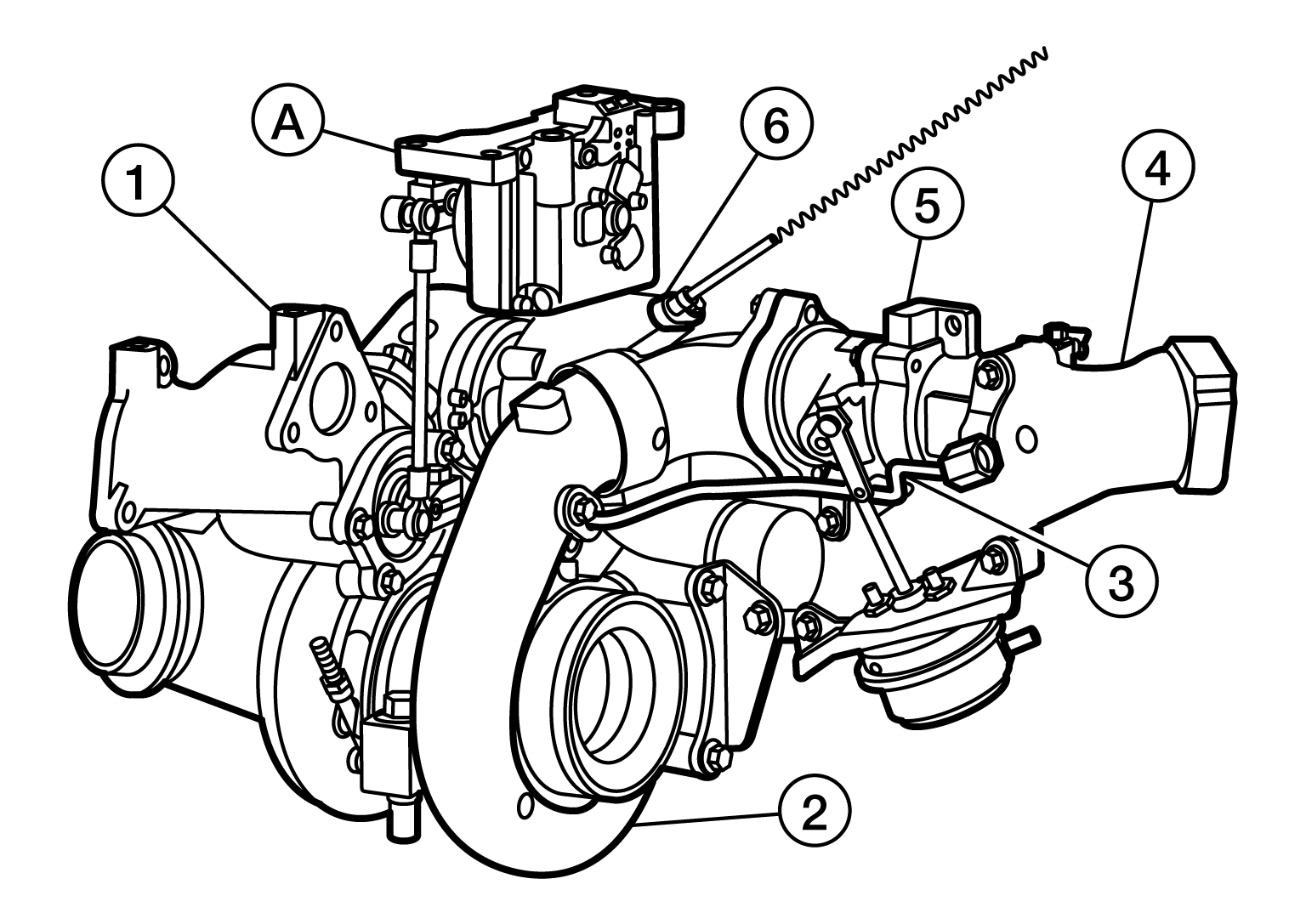

- The turbocharger assembly is a compound system composed of two turbochargers and contains the following components:
(1)
: High-pressure turbocharger
(2)
: Low-pressure turbocharger
(3)
: Low-pressure turbocharger boost pressure sensor tube
(4)
: Turbocharger compressor outlet connection
(5)
: Turbocharger compressor bypass valve
(6)
: Turbocharger speed sensor
(A)
: Rotary turbine control valve (non-serviceable component of the low-pressure turbocharger exhaust housing)
- The turbocharger's axial and radial clearances can not be inspected because the compressor and/or turbine wheel can not be accessed.CAUTION: To avoid possible engine and turbocharger damage, do not operate the engine with the charge-air piping removed.
