Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

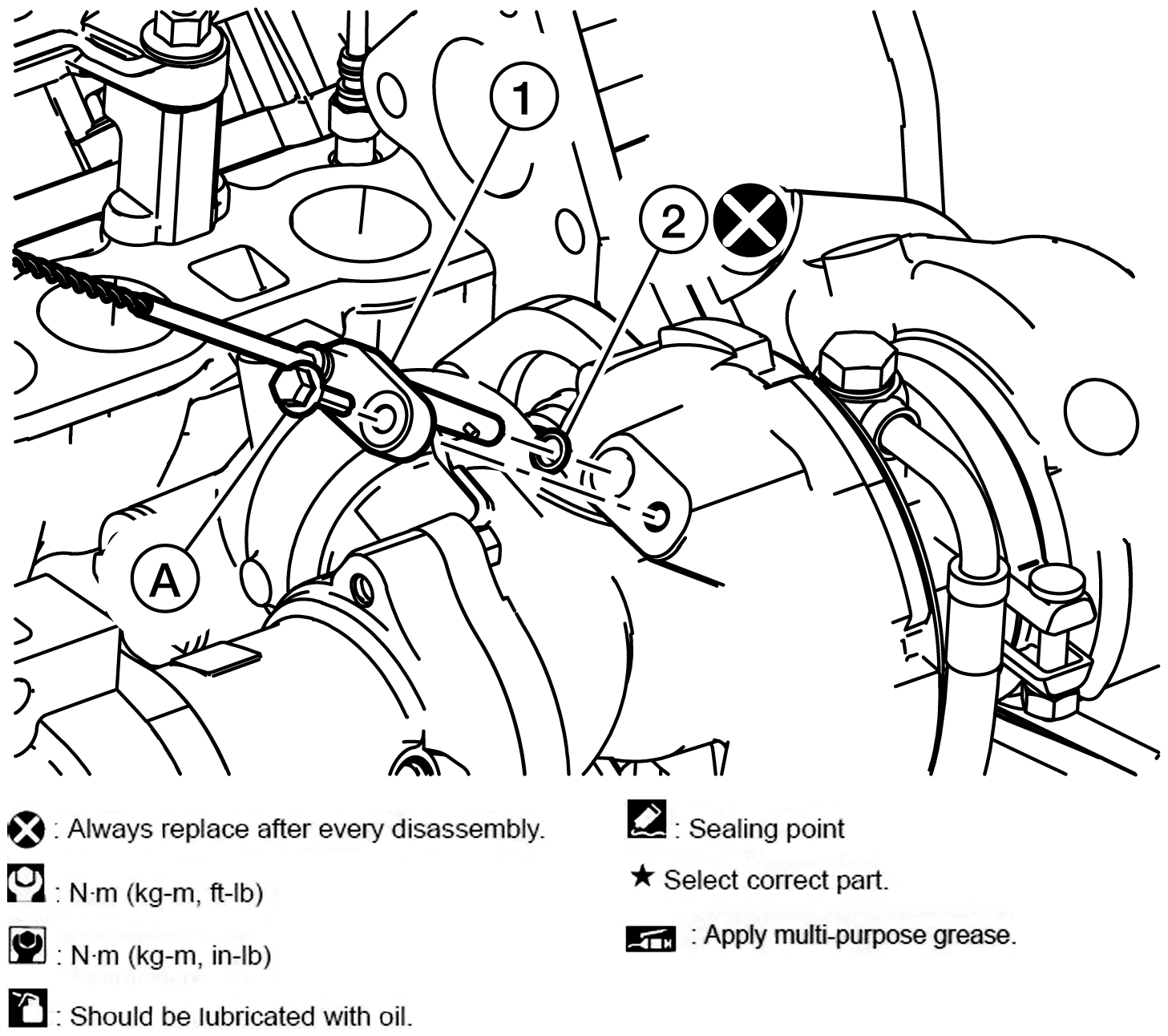

- Install the turbocharger speed sensor (1) and tighten the bolt (A).
Turbocharger speed sensor bolt (A)
: 5.5 N.m (0.56 kg-m, 49 in-lb)
CAUTION:- To avoid possible damage to the wiring harness, ensure it is tied up and away from heat sources, hard and/or sharp surfaces.
- Do not reuse O-ring
NOTE:- Use the same routing that was noted during removal of the sensor.
- Secure the turbocharger speed sensor wiring harness to the engine harness.
- Install the air intake manifold. Refer to Removal and Installation .
- Connect the battery or batteries. Refer to Battery Disconnect
.WARNING: Battery acid and battery acid fumes are extremely dangerous and can cause severe burns and explosion. To help reduce the risk of personal injury:
- Wear appropriate goggles and protective clothing.
- Always properly ventilate the area where the service is being performed.
- Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces.
- To avoid arcing, remove the negative (-) battery cable first and attach the negative (-) battery cable last.
- If acid contacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.
- Operate the engine and check for leaks.
