Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the turbocharger assembly. Refer to Removal and Installation .

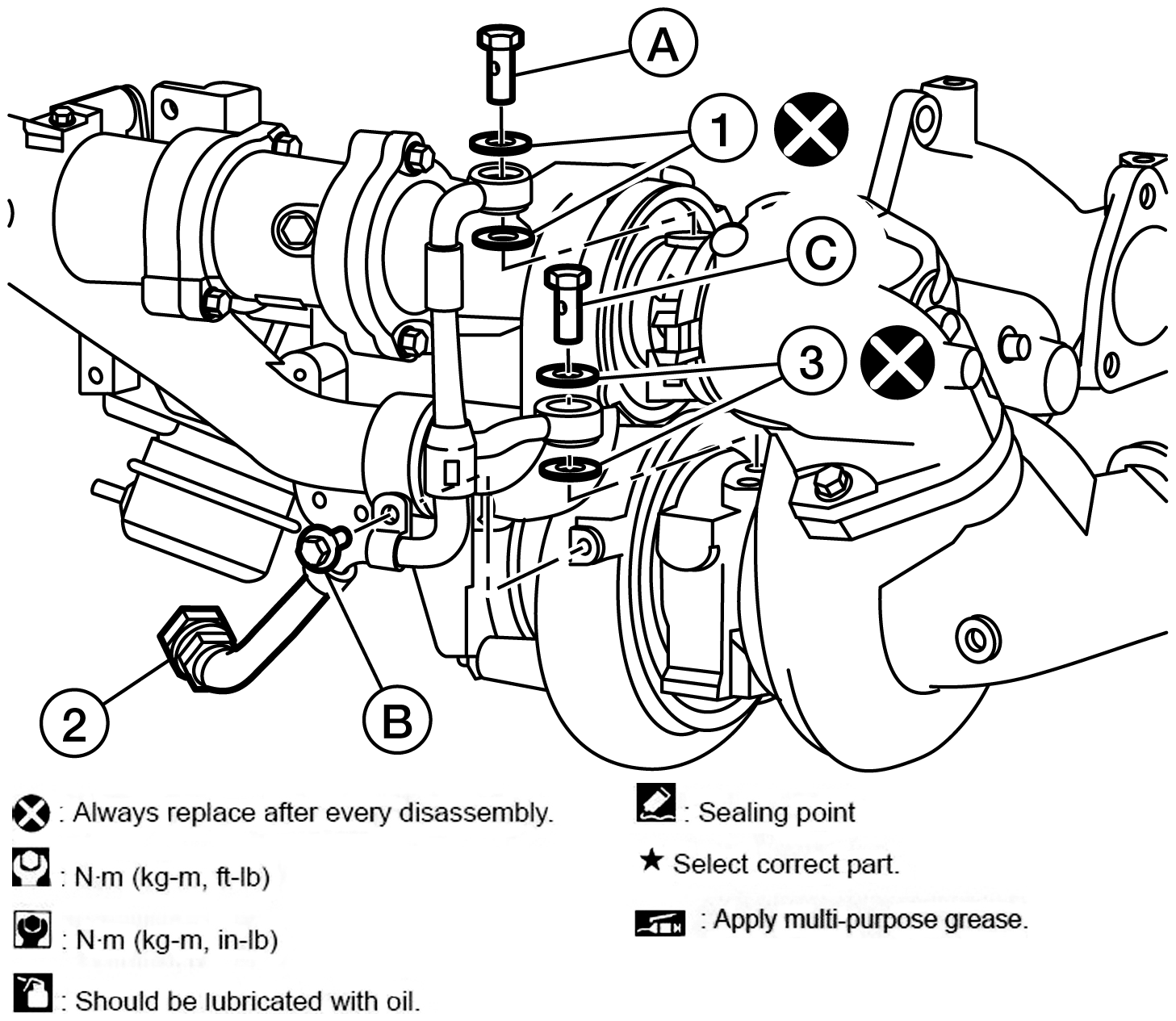

    GNSALBIA2026Z-026Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove the turbocharger oil supply line bolt (B).
  3. Remove the high-pressure banjo bolt (A).
  4. Remove the high-pressure banjo bolt sealing washers (1).
    CAUTION: Do not reuse the copper sealing washers
  5. Remove the low-pressure banjo bolt (C).
  6. Remove the low-pressure banjo bolt sealing washers (3).
    CAUTION: Do not reuse the copper sealing washers
  7. Remove the turbocharger oil supply line (2) from the turbocharger.
    CAUTION: Do not remove the oil supply fitting from the block unless damaged. If fitting is required to be removed, vacuum all loose dirt from around the area of the oil supply fitting to avoid oil system contamination and potential engine damage.
