Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

If fitting was removed:

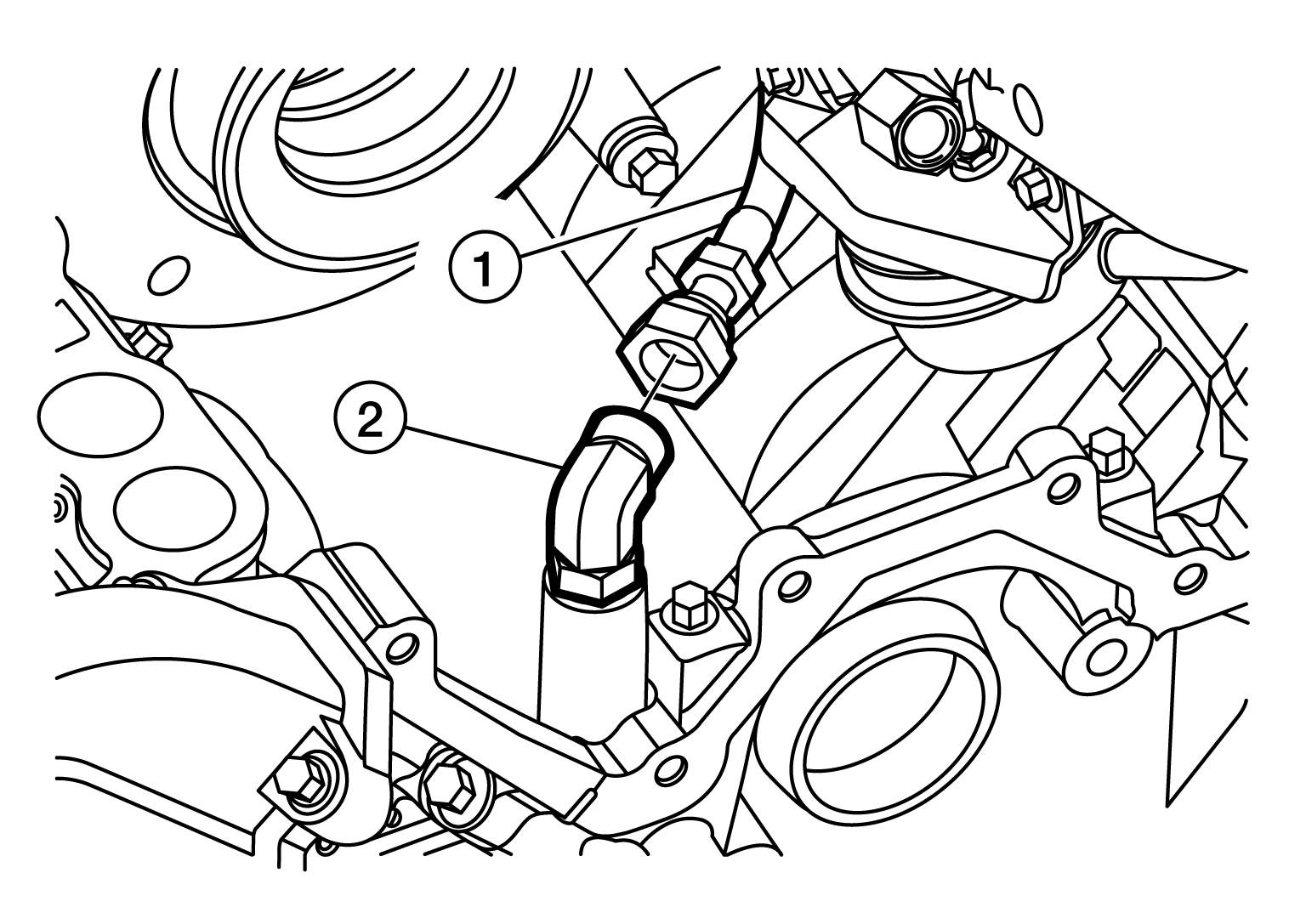

Tighten the cylinder block fitting (2), to the cylinder block to specification.

Courtesy of NISSAN NORTH AMERICA, INC.

Cylinder block fitting (2)

: 34 N.m (3.5 kg-m, 25 ft-lb)

Tighten the male union for the turbocharger oil supply line connection (1) to the cylinder block fitting (2) to specification.

Turbocharger oil supply line connection (1)

: 22 N.m (2.2 kg-m, 16 ft-lb)

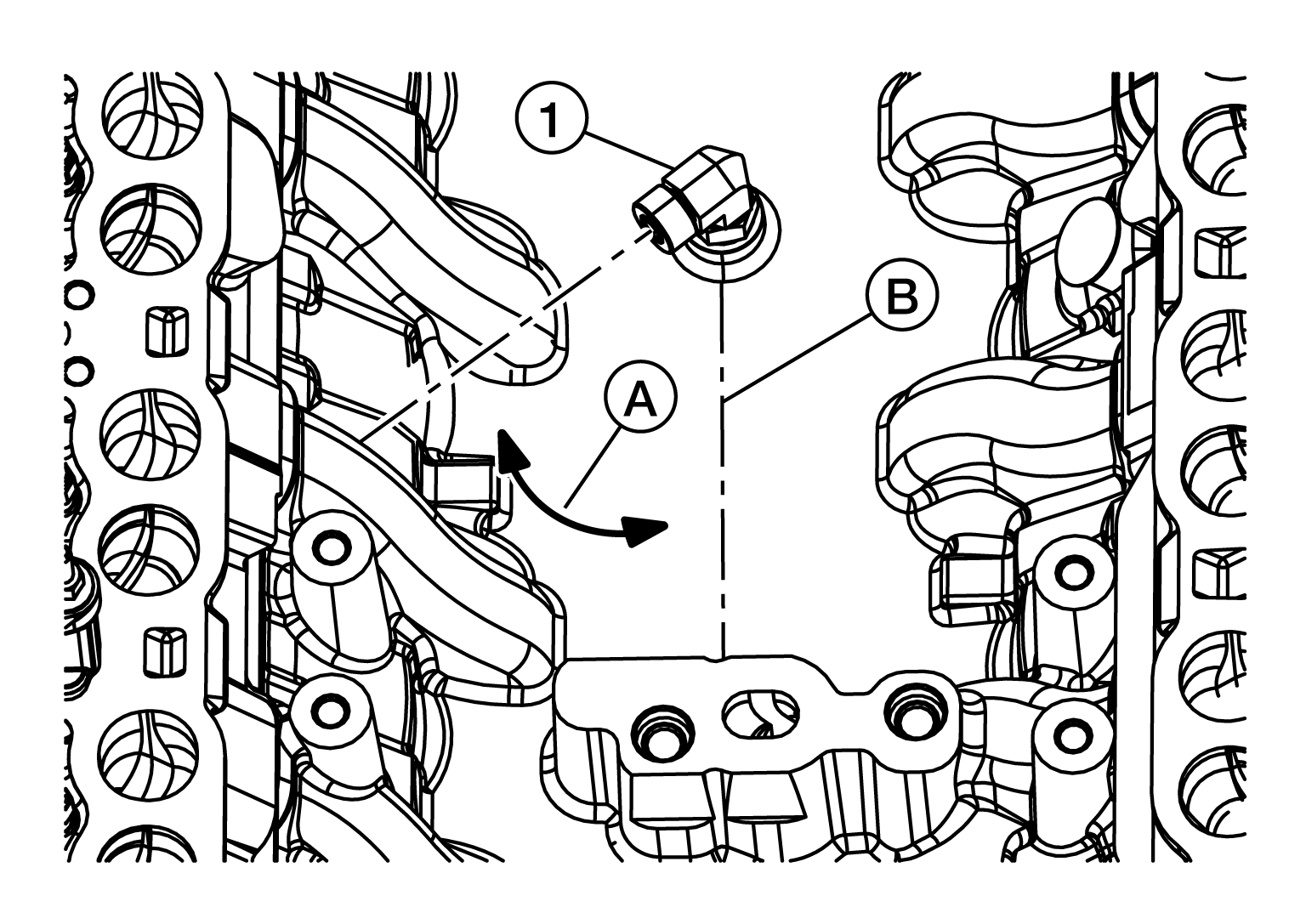

CAUTION: Confirm that the male union for the cylinder block fitting (1) to the cylinder block is in place and properly aligned. The fitting should be oriented 45 degrees (A) from the crankshaft axis (B), toward the rear, left of the engine.
