General Information
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

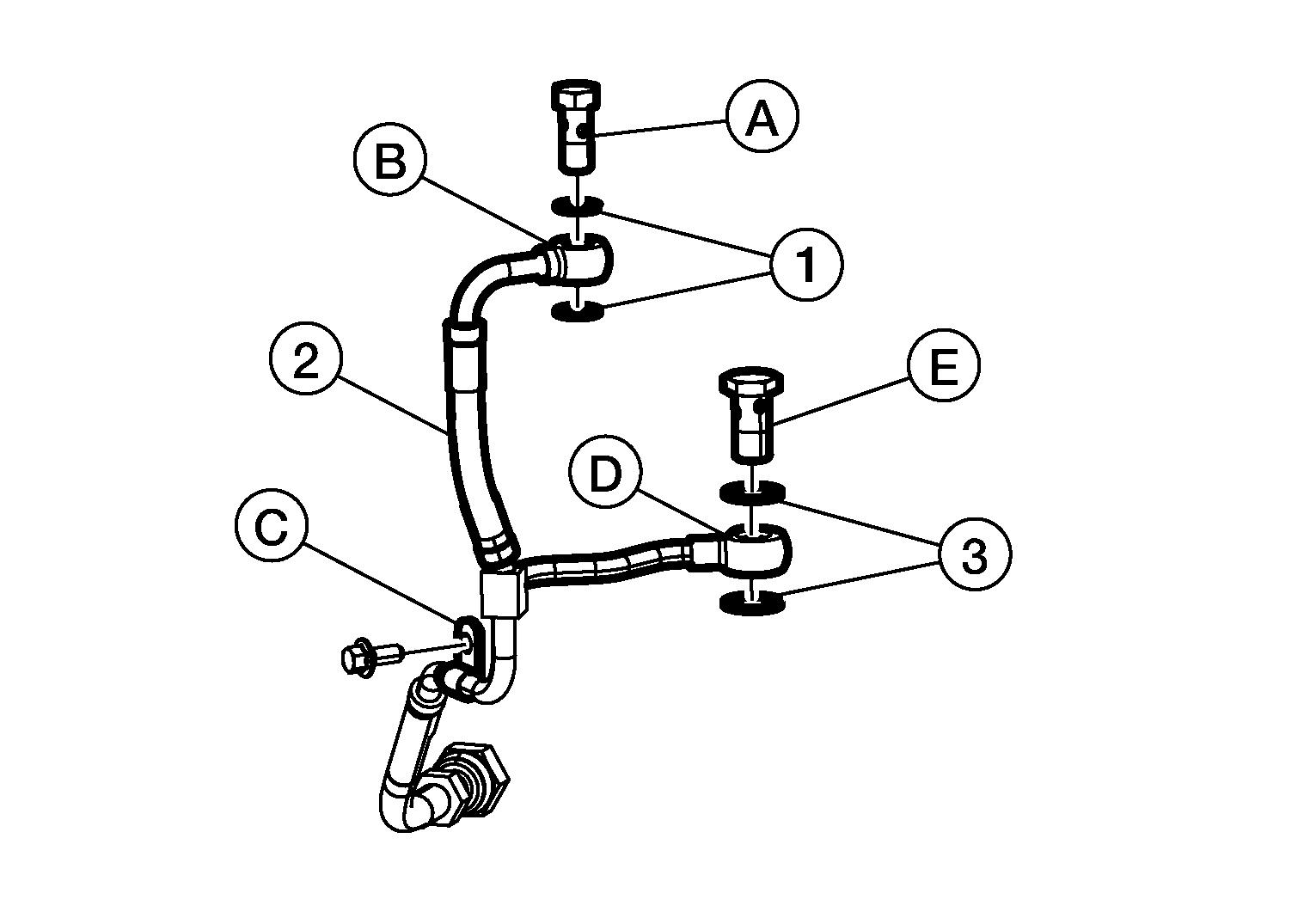

Oil from the engine cylinder block flows though the turbocharger oil supply line to the high-pressure and low-pressure turbochargers.
|
(1) |
: High-pressure turbocharger banjo copper washers |
|
(2) |
: Turbocharger oil supply line |
|
(3) |
: Low-pressure turbocharger banjo copper washers |
|
(A) |
: High-pressure turbocharger banjo bolt |
|
(B) |
: High-pressure turbocharger banjo fitting |
|
(C) |
: Turbocharger oil supply line bracket |
|
(D) |
: Low-pressure turbocharger banjo fitting |
|
(E) |
: Low-pressure turbocharger banjo bolt |
