General Information
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

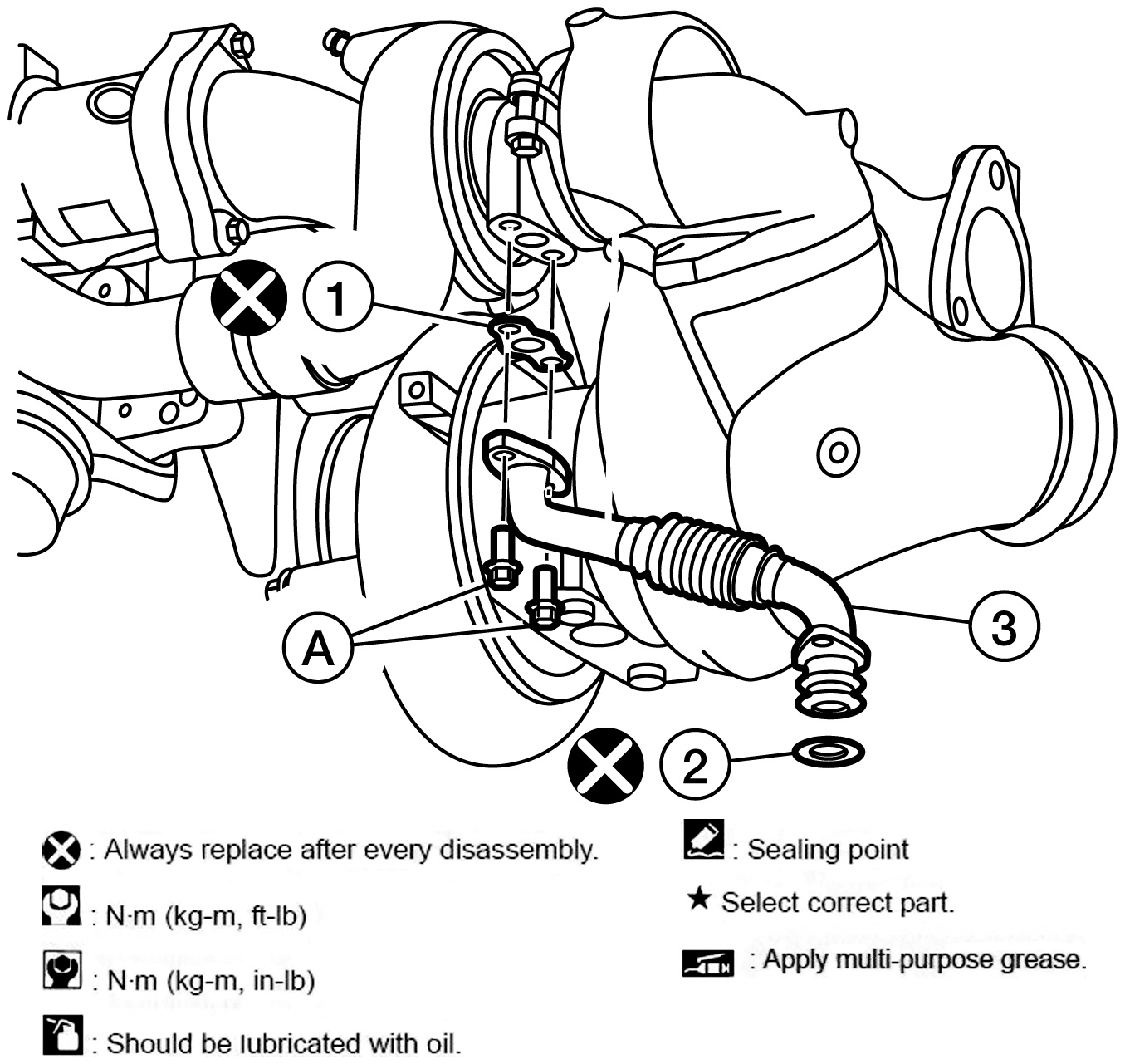

The turbocharger oil drain line (3), drains oil from the high-pressure turbocharger. The low pressure turbocharger oil drain is integrated into the bearing housing and drains directly into the engine cylinder block.
CAUTION:
Do not reuse the turbocharger oil drain line gasket (1) or O-ring (2).
|
(A) |
: Bolt |
