Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

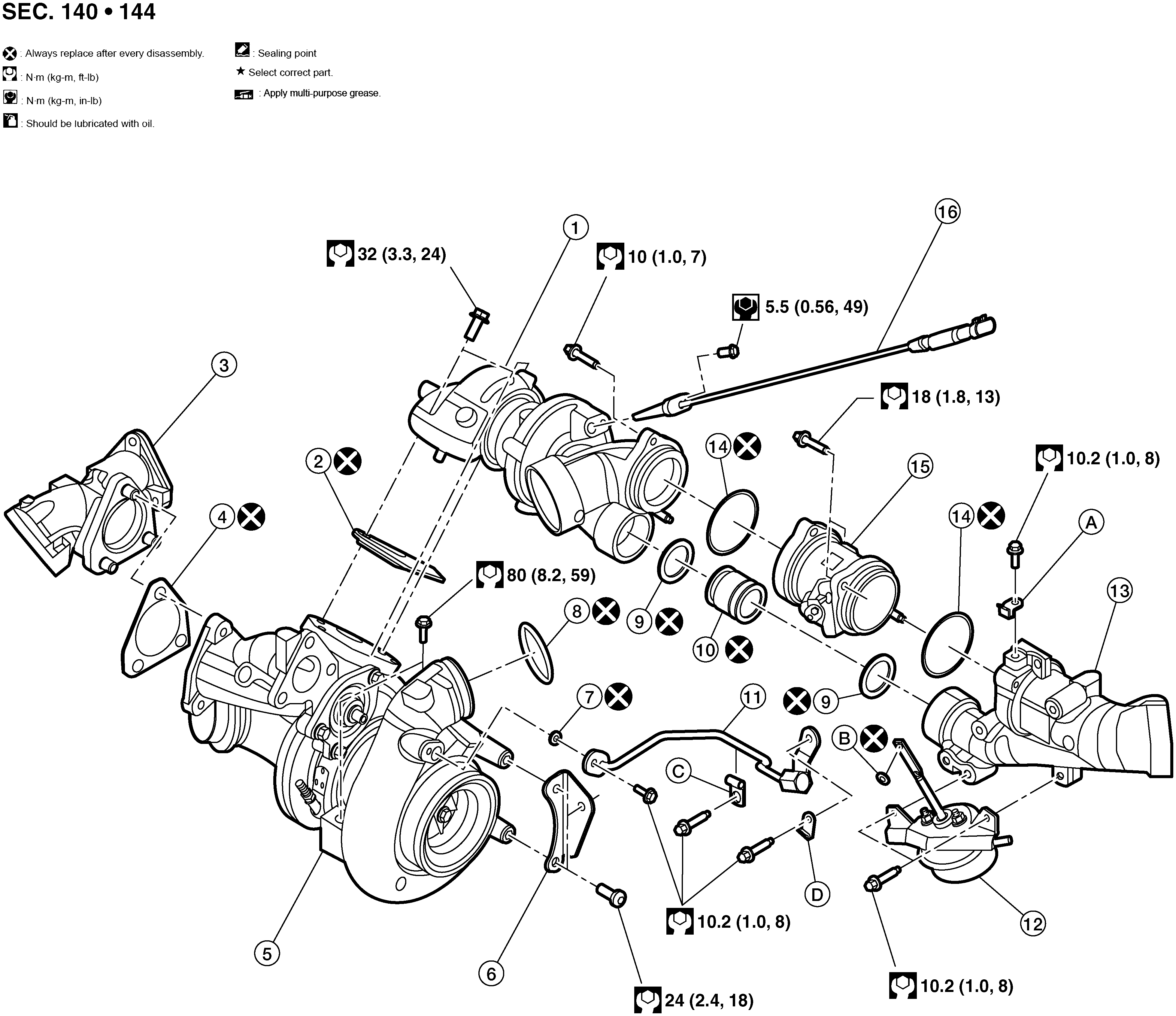

Fig 1: Turbocharger Compressor Outlet Connection With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	High-pressure turbocharger*	2.	High-pressure turbocharger gasket*	3.	Exhaust manifold collector pipe
4.	Exhaust manifold collector pipe gasket	5.	Low-pressure turbocharger*	6.	Support bracket*
7.	O-ring*	8.	O-ring*	9.	O-ring*
10.	Jumper tube*	11.	Low-pressure turbocharger boost pressure sensor tube*	12.	Turbocharger compressor bypass valve actuator*
13.	Turbocharger compressor outlet connection*	14.	O-ring*	15.	Turbocharger compressor bypass valve*
16.	Turbocharger speed sensor	A.	Clip*	B.	Retaining clip*
C.	Clip*	D.	Clip*

*: Always check with parts department for the latest parts information.
