Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: When using compressed air for cleaning, to avoid the risk of personal injury from flying debris and dirt:

Do not exceed 207 kPa (2.111 kg/cm ² , 30 psi).
Wear appropriate eye protection and protective clothing including gloves.

CAUTION: To avoid possible damage to the rotary turbine control valve, it must be disconnected from the wiring harness before removal.

Clean the area around the rotary turbine control valve linkage and dry with compressed air.

Loosen the bolt (A) that connects the rotary turbine control valve linkage (3) to the rotary turbine control valve actuator (2).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Use care while removing the linkage as damage can result.

: Front

NOTE: It is not necessary to completely remove the rotary turbine control valve linkage bolts to remove the rotary turbine control valve actuator linkage.

Loosen bolt (B) that connects the rotary turbine control valve linkage (3) to the turbocharger assembly (1).
NOTE: If the turbine valve side of the rotary turbine control valve linkage is disconnected from the turbine valve shaft, the rotary turbine control valve linkage must be replaced.

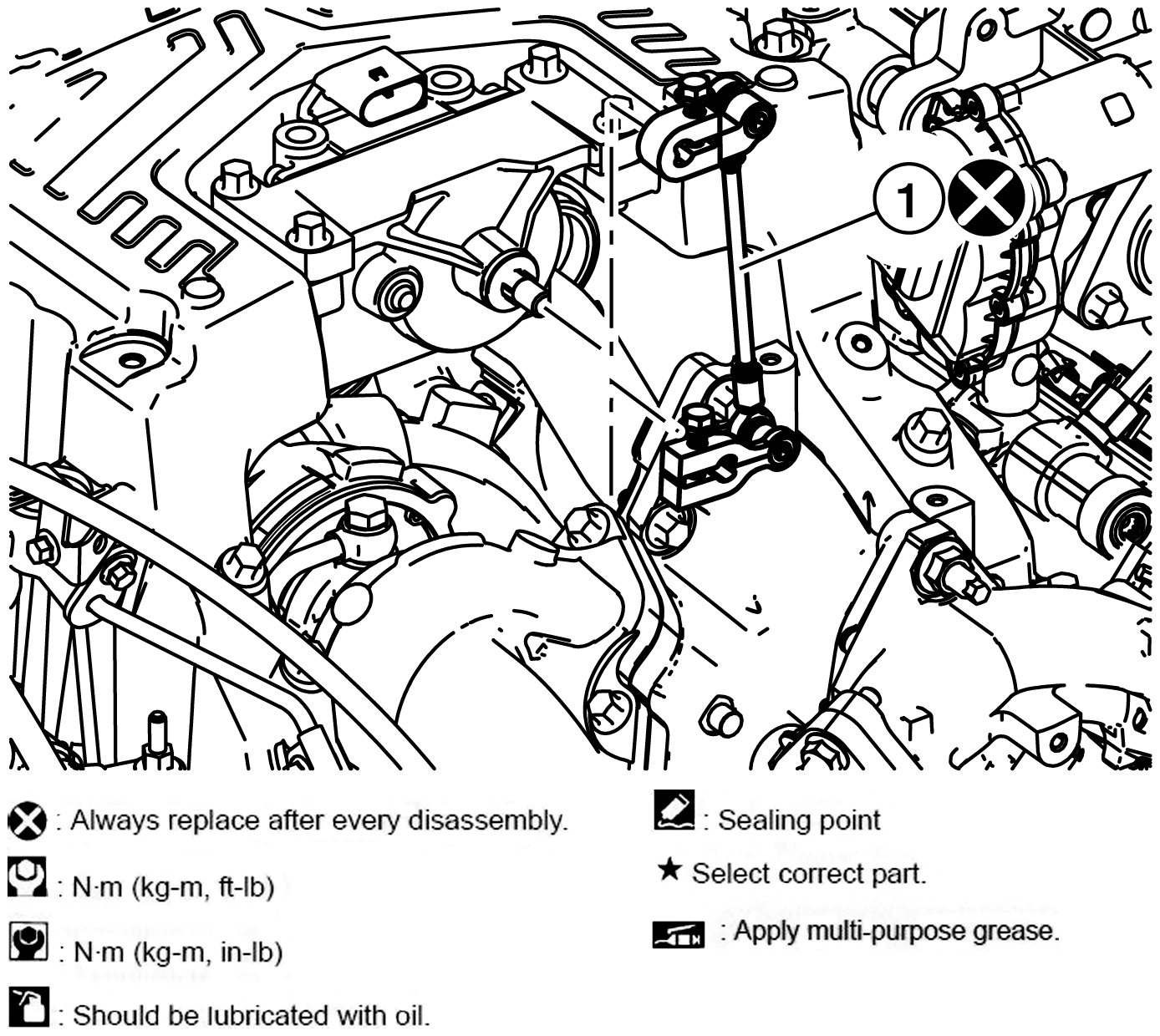

Remove the rotary turbine control valve linkage (1).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse the rotary turbine control valve linkage.
