Removal (Without Removing Rear Seal Carrier)

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Remove the flexplate. Refer to Removal and Installation .

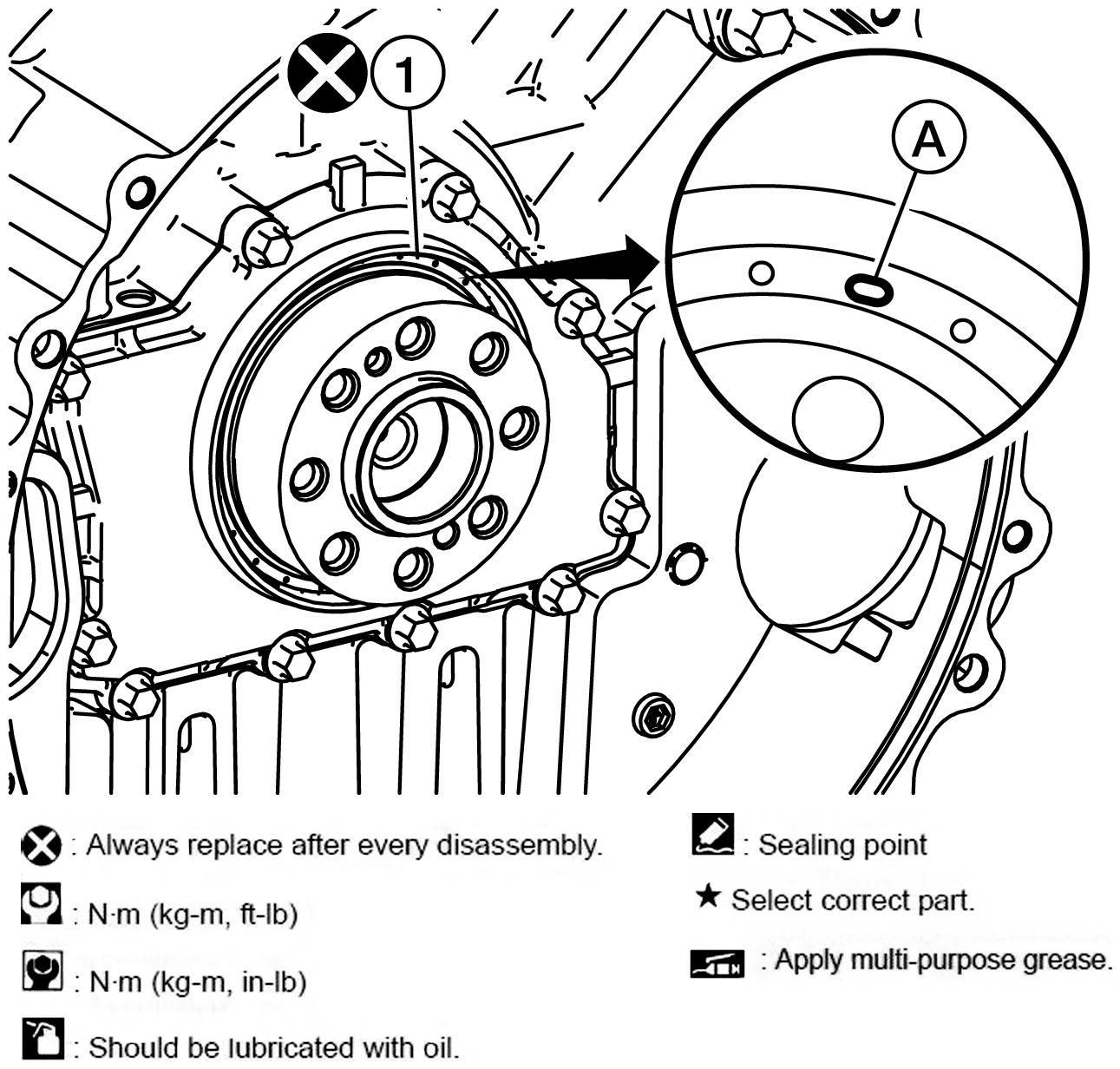

This engine features a rear oil seal (1) with pre-drilled slots (A) in the casing, covered with rubber molding. These slots are designed into the seals to aid with removal, so drilling of the seals is not necessary.

Courtesy of NISSAN NORTH AMERICA, INC.
Clean the surface of the rear oil seal.

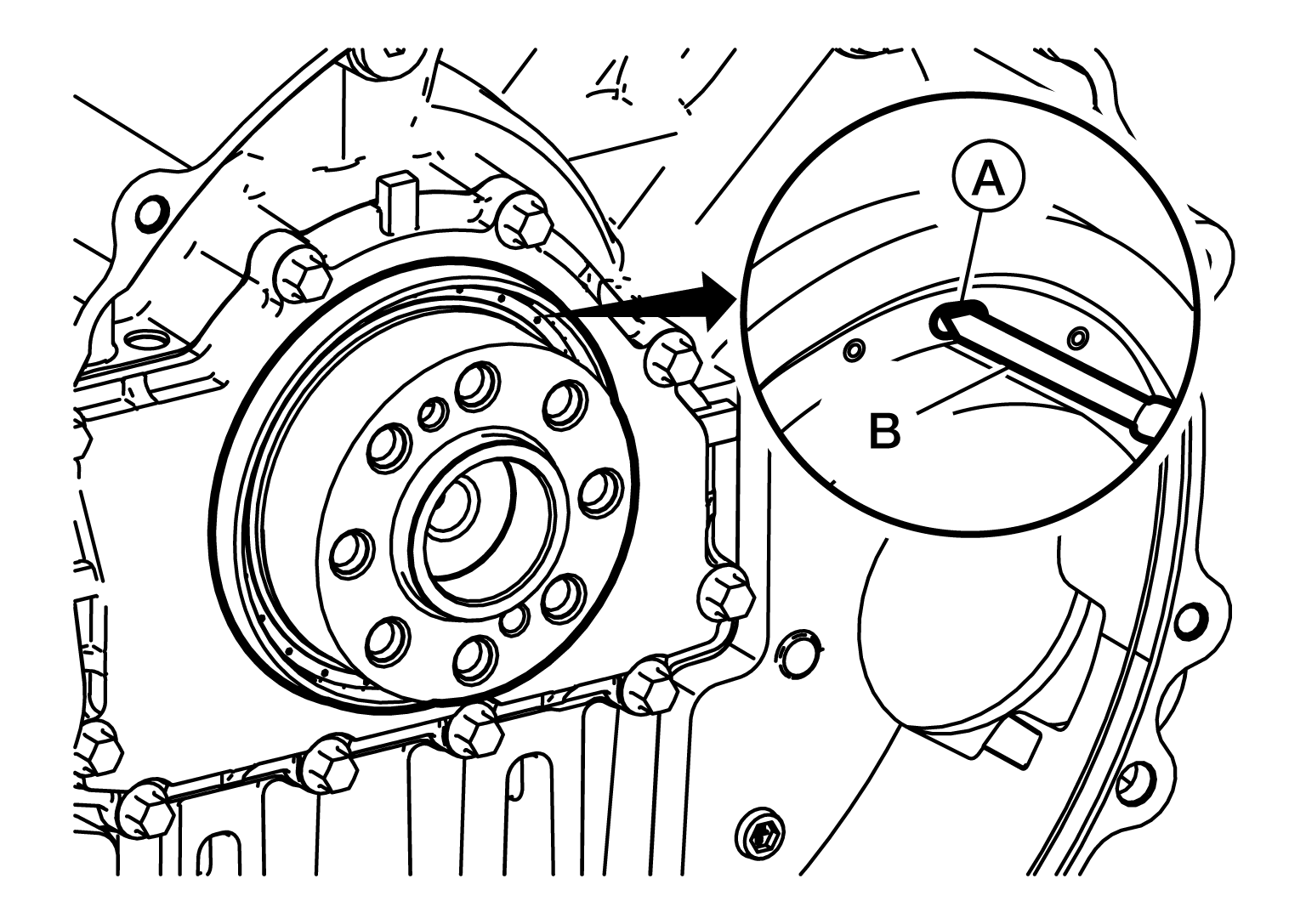

Push a suitable tool (B) through the dimples (A) to further identify the locations of the pre-drilled slots.

Courtesy of NISSAN NORTH AMERICA, INC.

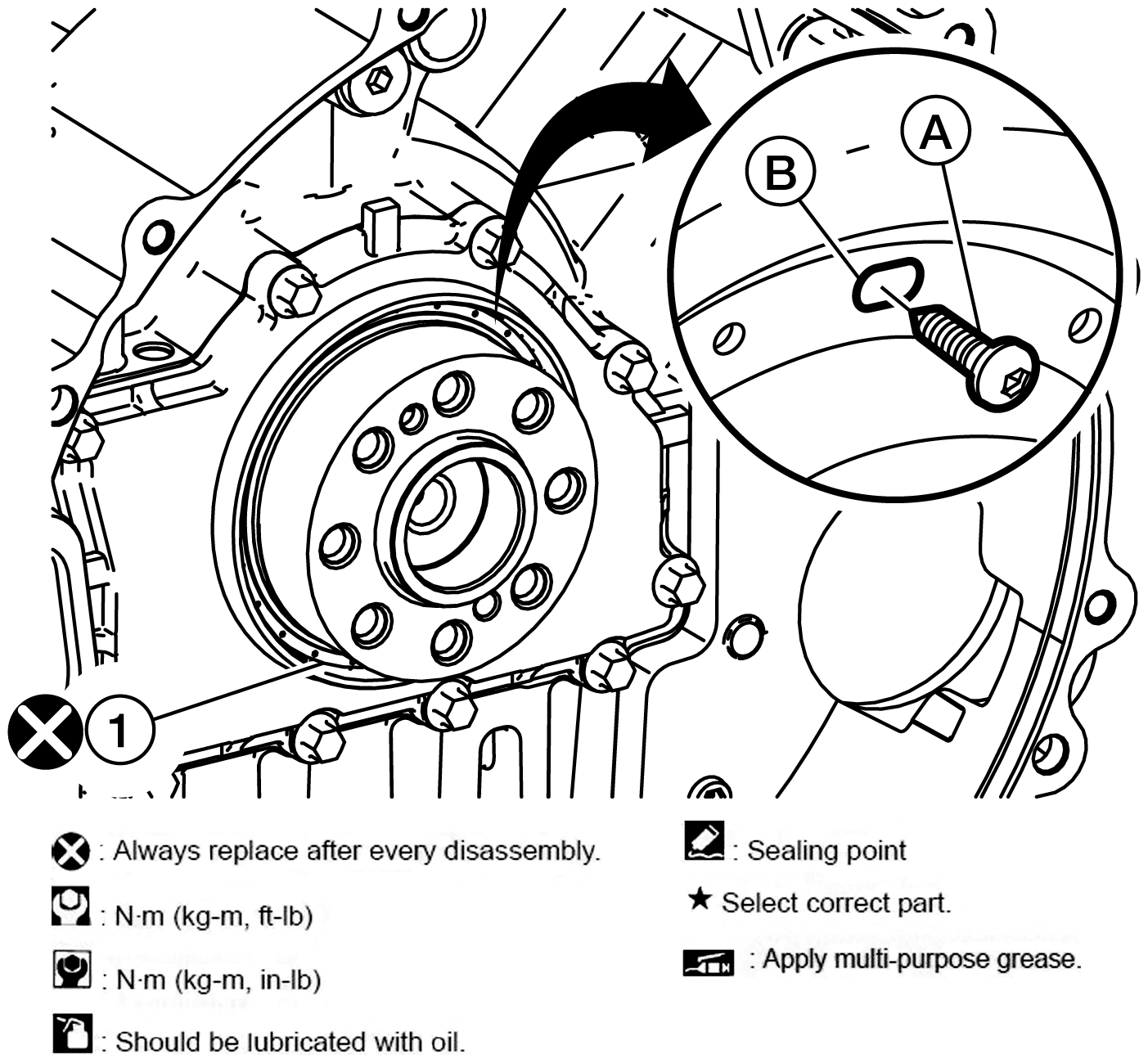

Install 3.5 x 50 mm (0.14 x 1.97 in) self-tapping screws (A) into the pre-drilled slots (B) in the rear oil seal (1).

Courtesy of NISSAN NORTH AMERICA, INC.

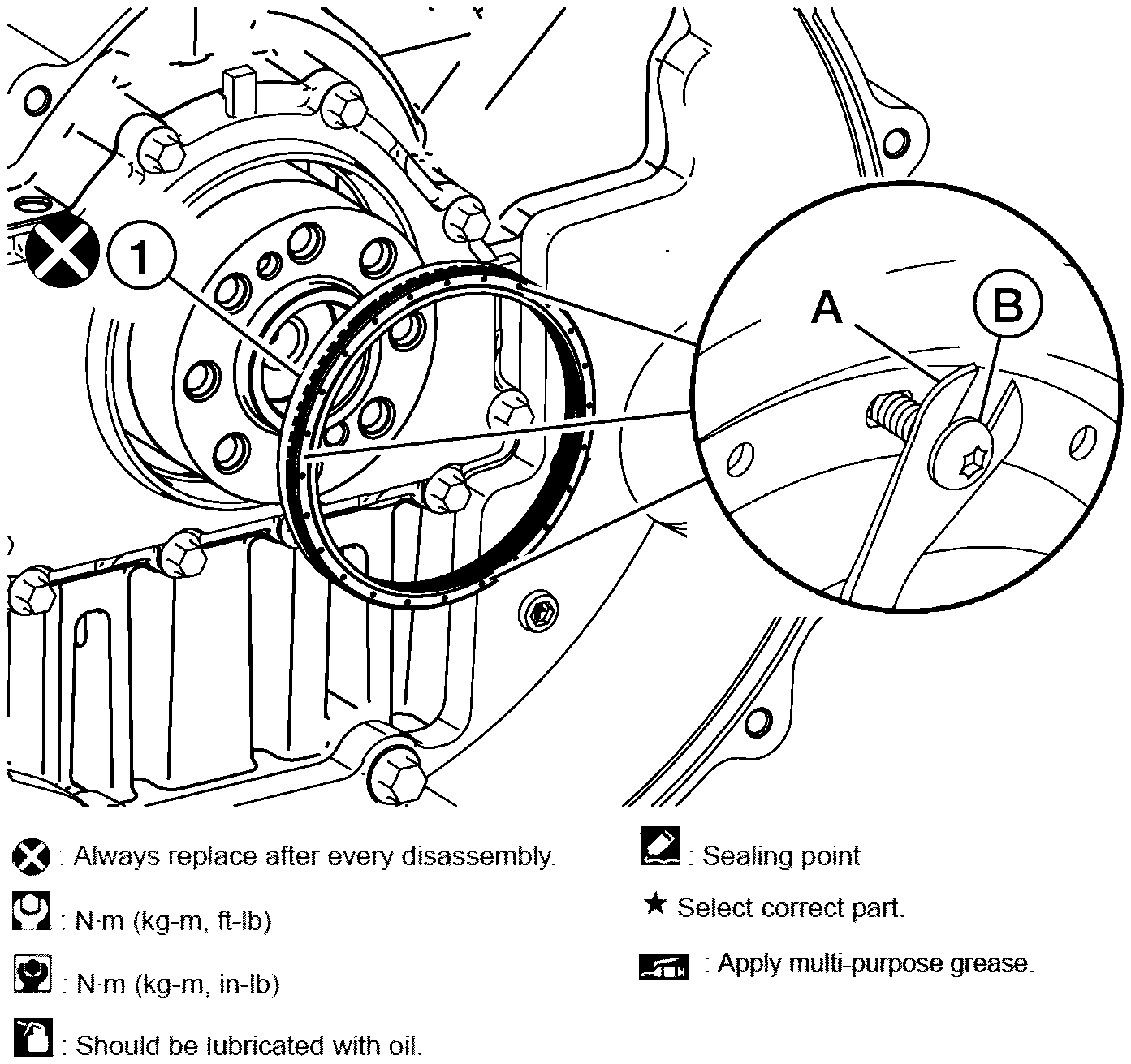

Use a suitable tool (A) to grip the screws (B) and pull the rear oil seal (1) out.

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse the rear oil seal.
