Removal (With Removing Rear Seal Carrier)

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: This optional method should only be used if damage has occurred to the rear seal carrier or if the rear seal carrier must be removed for other service procedures that require the removal of the rear seal carrier.

Remove the flexplate. Refer to Removal and Installation .
Remove the bolts (A) from the rear seal carrier (1) and remove the rear seal carrier from the engine block (2).

Courtesy of NISSAN NORTH AMERICA, INC.

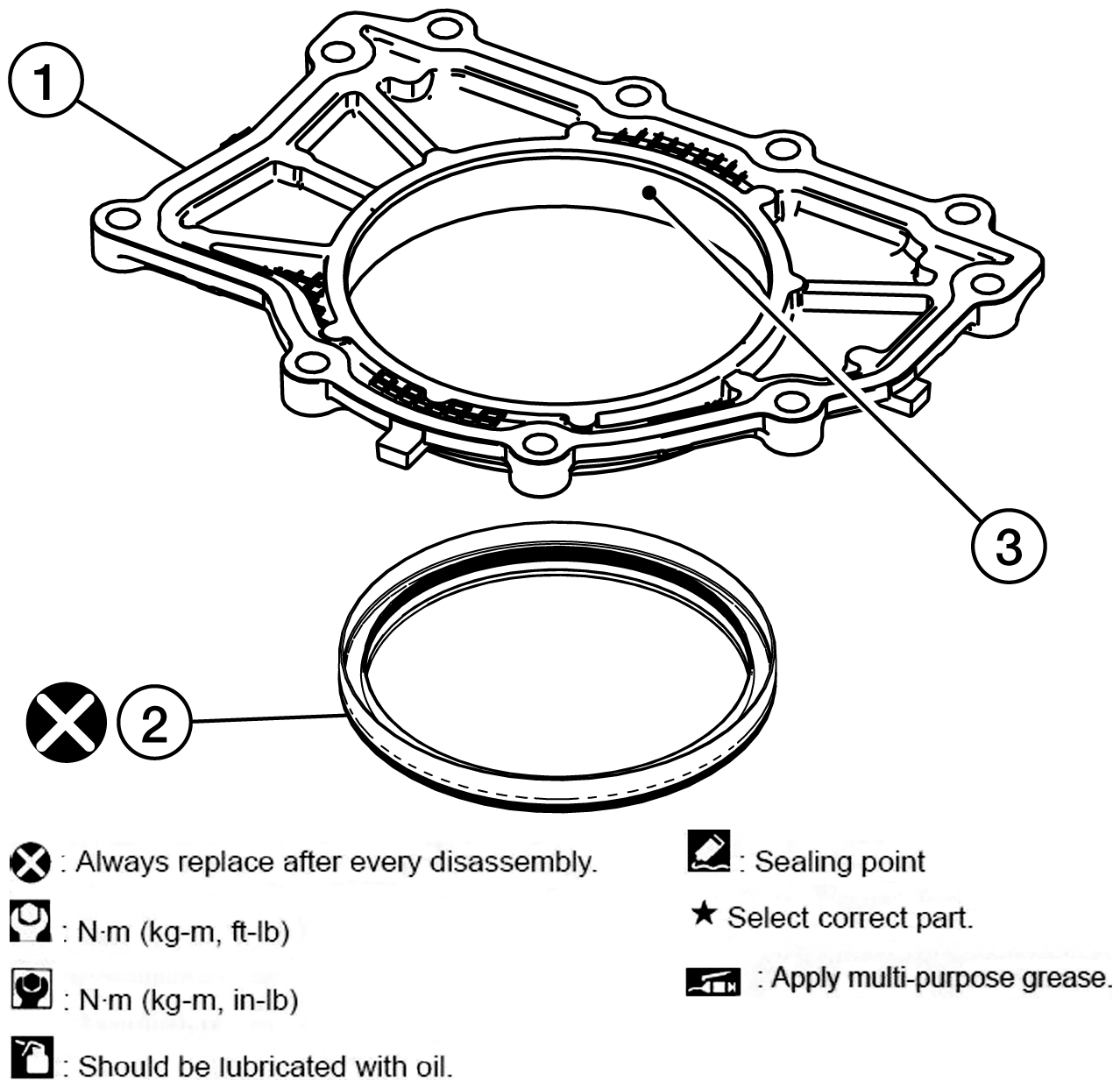

Holding the seal carrier (1) face down, use a suitable tool to drive the rear oil seal (2) out of the carrier boss (3).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Do not reuse the rear oil seal.
