Removal and Installation - Front Oil Seal: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the vibration damper. Refer to Removal and Installation .

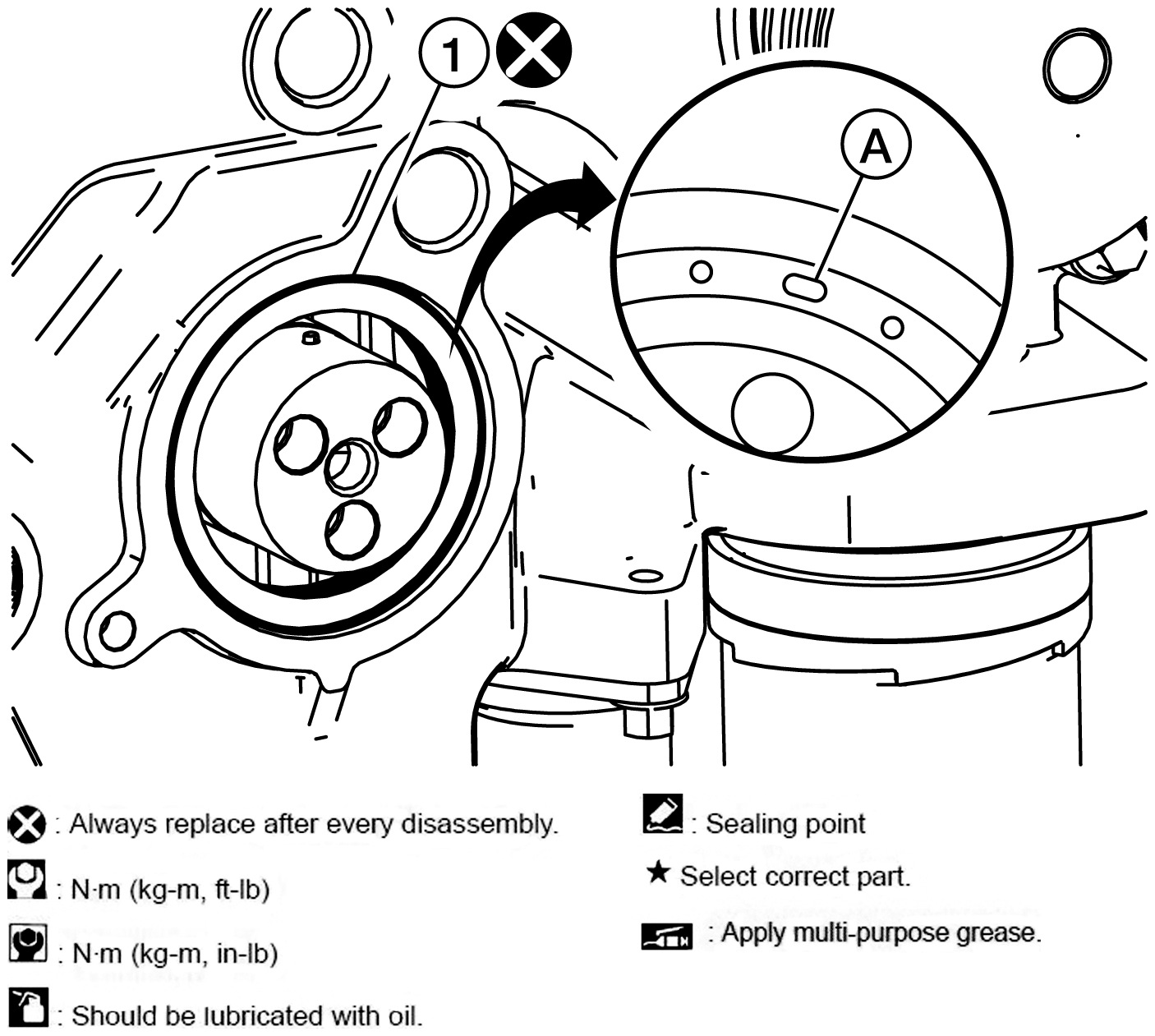

  2. This front oil seal (1) has pre-drilled slots (A) in the casing, covered with rubber molding. These slots are designed into the seals to aid with removal, so drilling of the seals is not necessary.
    GNSALBIA2463Z-463Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The front cover does not need to be removed to remove and install the front oil seal.
  3. Clean the surface of the front oil seal.

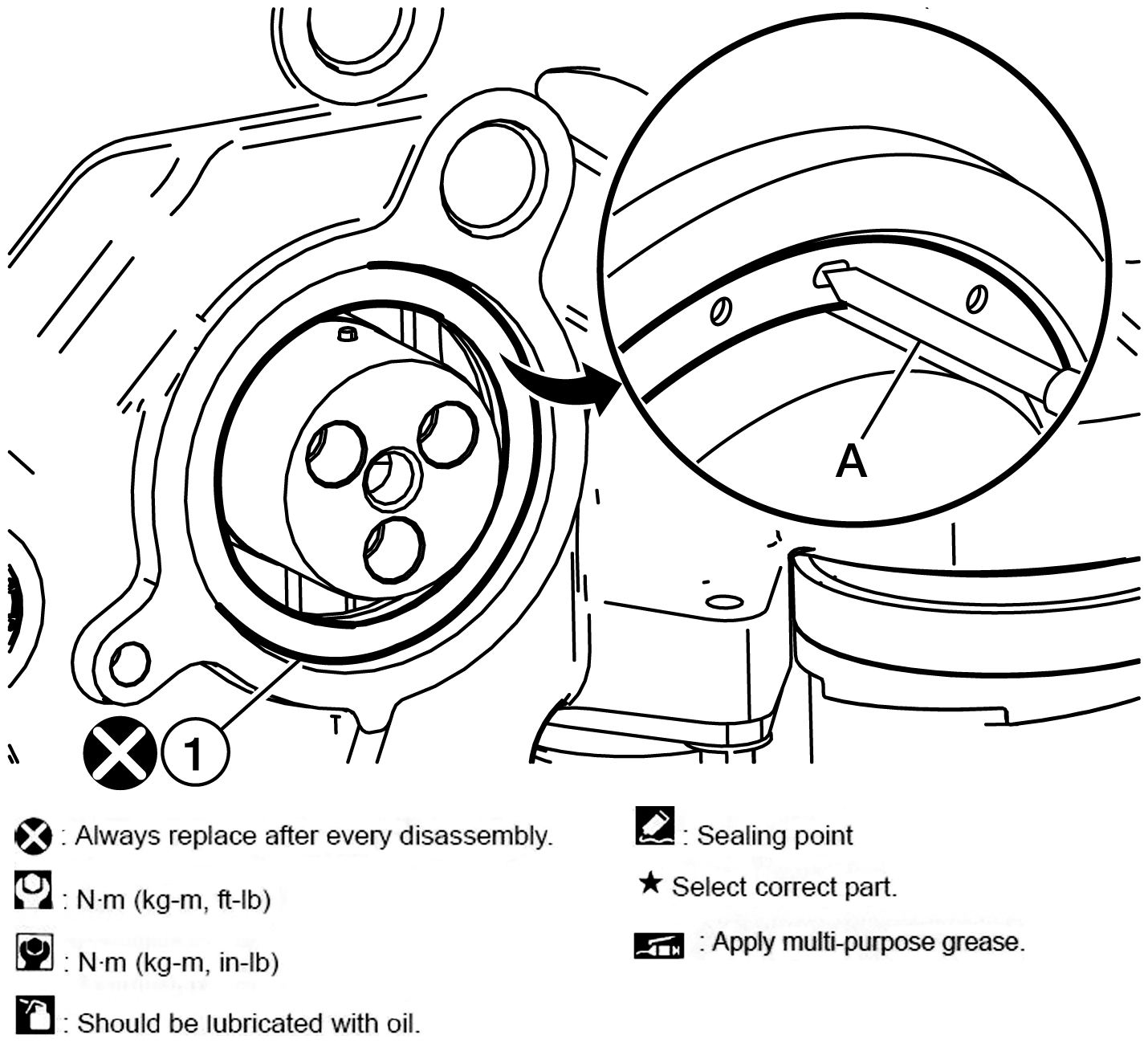

  4. Push a suitable tool (A) through the dimples to further identify the locations of the pre-drilled slots in the front oil seal (1).
    GNSALBIA2464Z-464Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:
    • The rubber molding over the pre-drilled slots in the seal casing is recessed. "Dimples" that identify the pre-drilled slots are visible on the front oil seal surface.
    • Be certain that debris does not fall into the front gear cover.

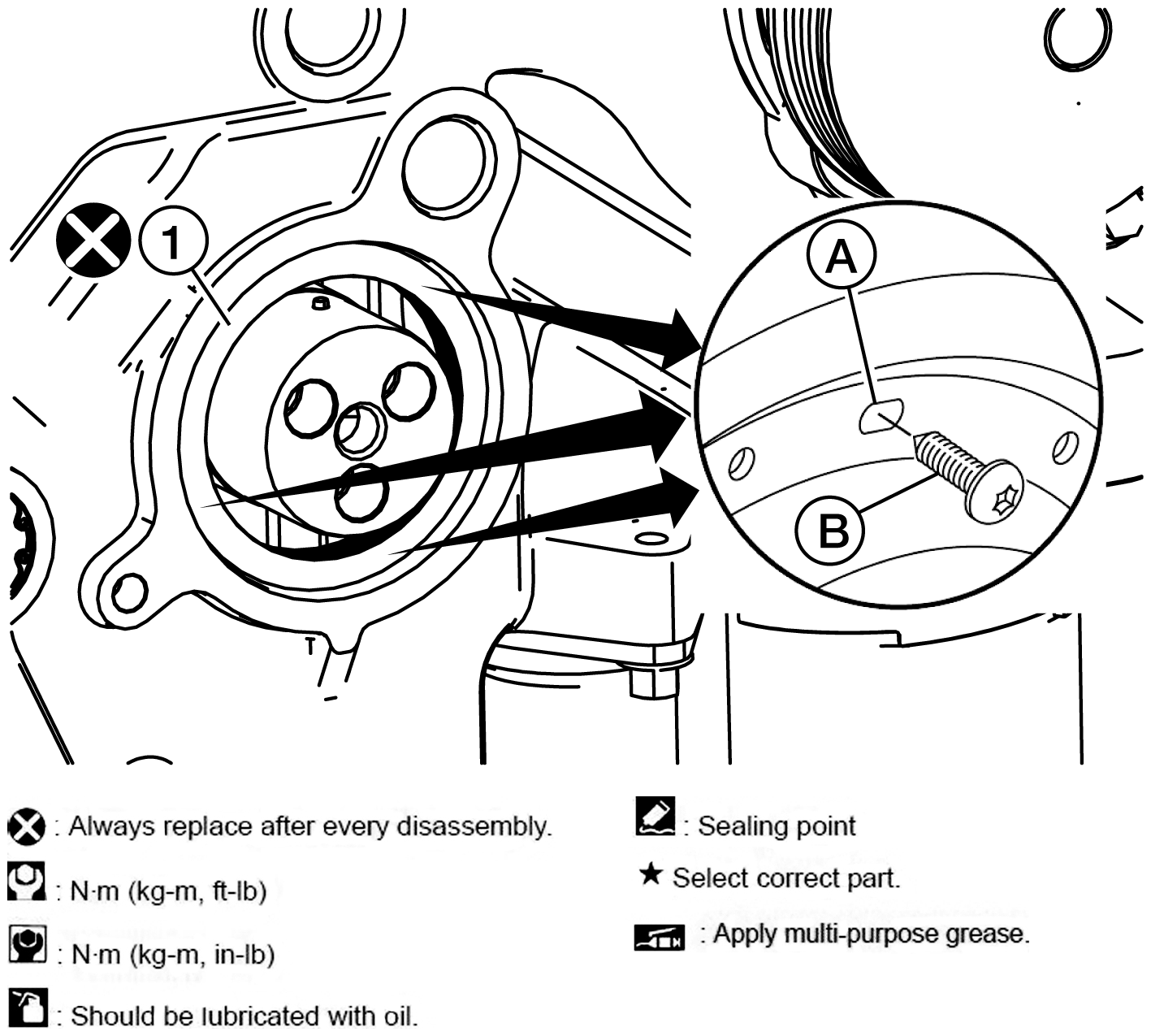

  5. Install 3.5 x 35 mm (0.14 x 1.38 in) self-tapping screws (B) into the pre-drilled slots (A) in the front oil seal (1).
    GNSALBIA2465Z-465Courtesy of NISSAN NORTH AMERICA, INC.

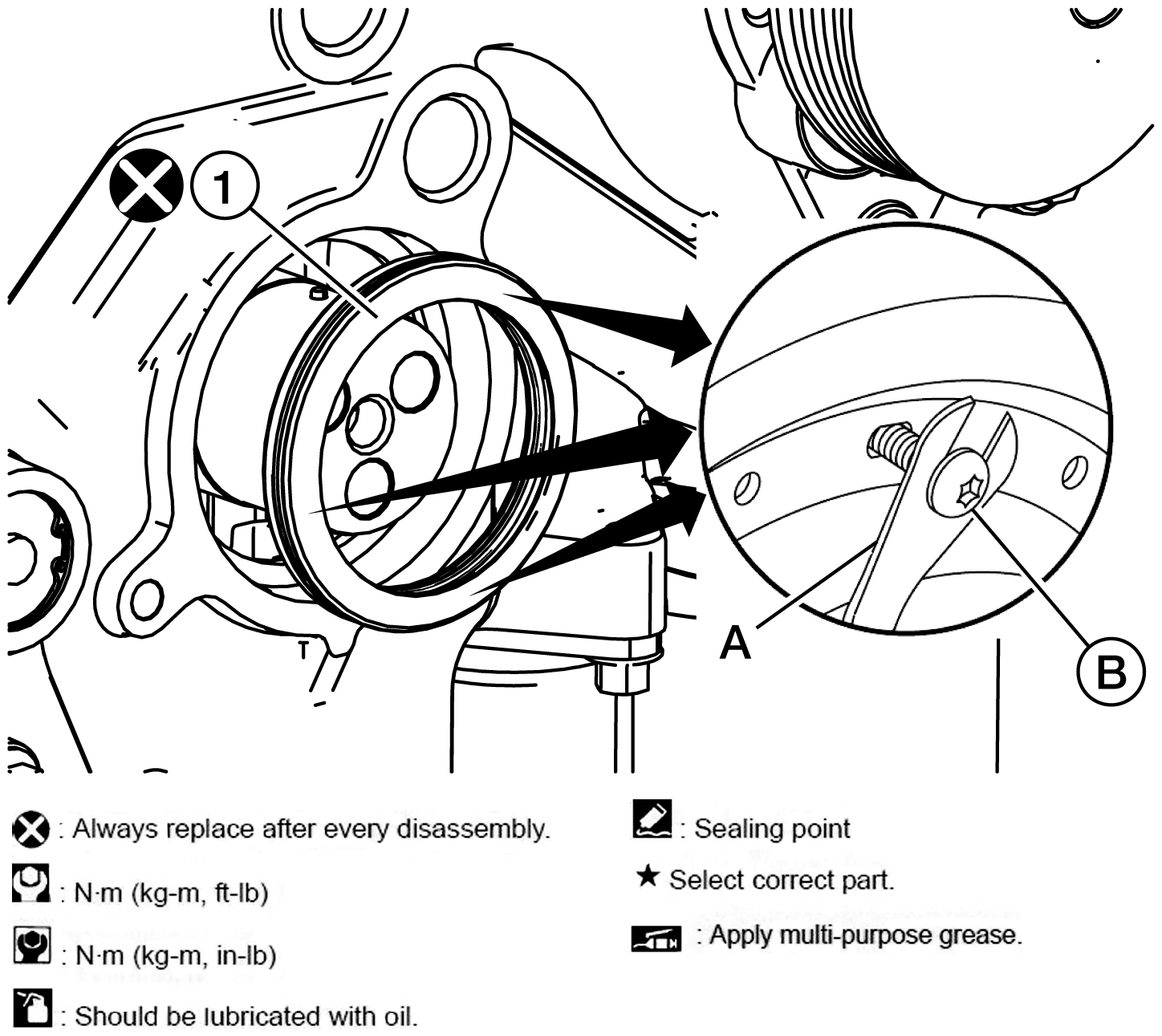

  6. Use a suitable tool (A) to grip the screws (B) and pull the front oil seal (1) out.
    GNSALBIA2466Z-466Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse the front oil seal.
