General Information
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

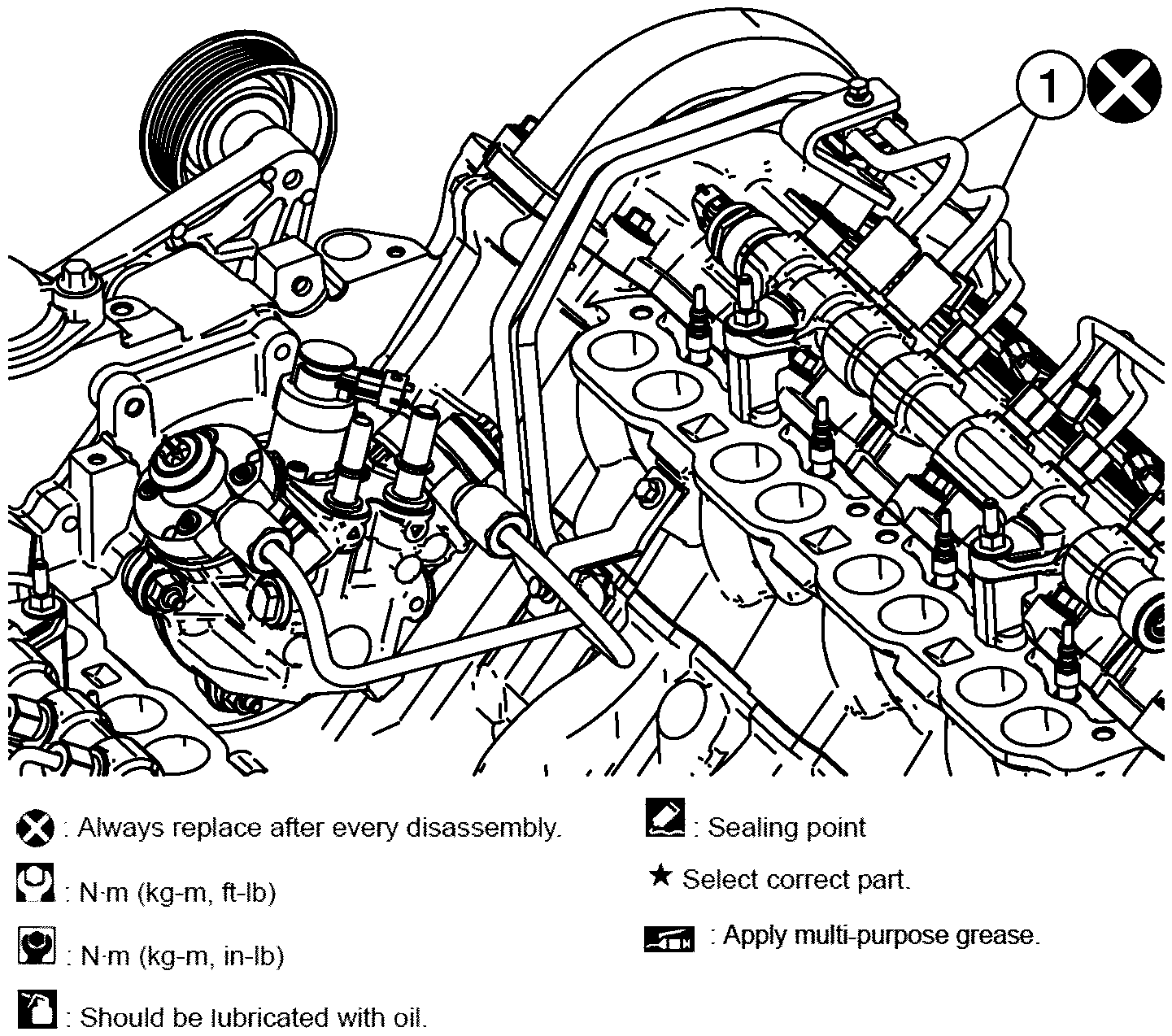

The fuel rail supply line [high pressure (1)] connects the fuel pump to the fuel rail (bank 1), containing high-pressure fuel.
WARNING:
The fuel system (fuel pump, fuel rail supply line (high-pressure), fuel rail, injectors) contain very high pressure fuel. To avoid the risk of personal injury or fire:
- Do not loosen any fittings while engine is running.
- Wait at least 10 minutes after shutting down the engine before loosening any fittings in the high-pressure fuel system to allow pressure to decrease to a lower level.
- Wear appropriate eye protection and protective equipment as high-pressure fuel spray can penetrate the skin.
- Never smoke or allow sparks or flames (such as pilot lights, electrical switches, or welding equipment) in the work area. Never allow diesel fuel to spill onto a hot exhaust manifold which can cause a fire.
CAUTION:
Do not reuse fuel rail supply lines [high-pressure) (1)].
