Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

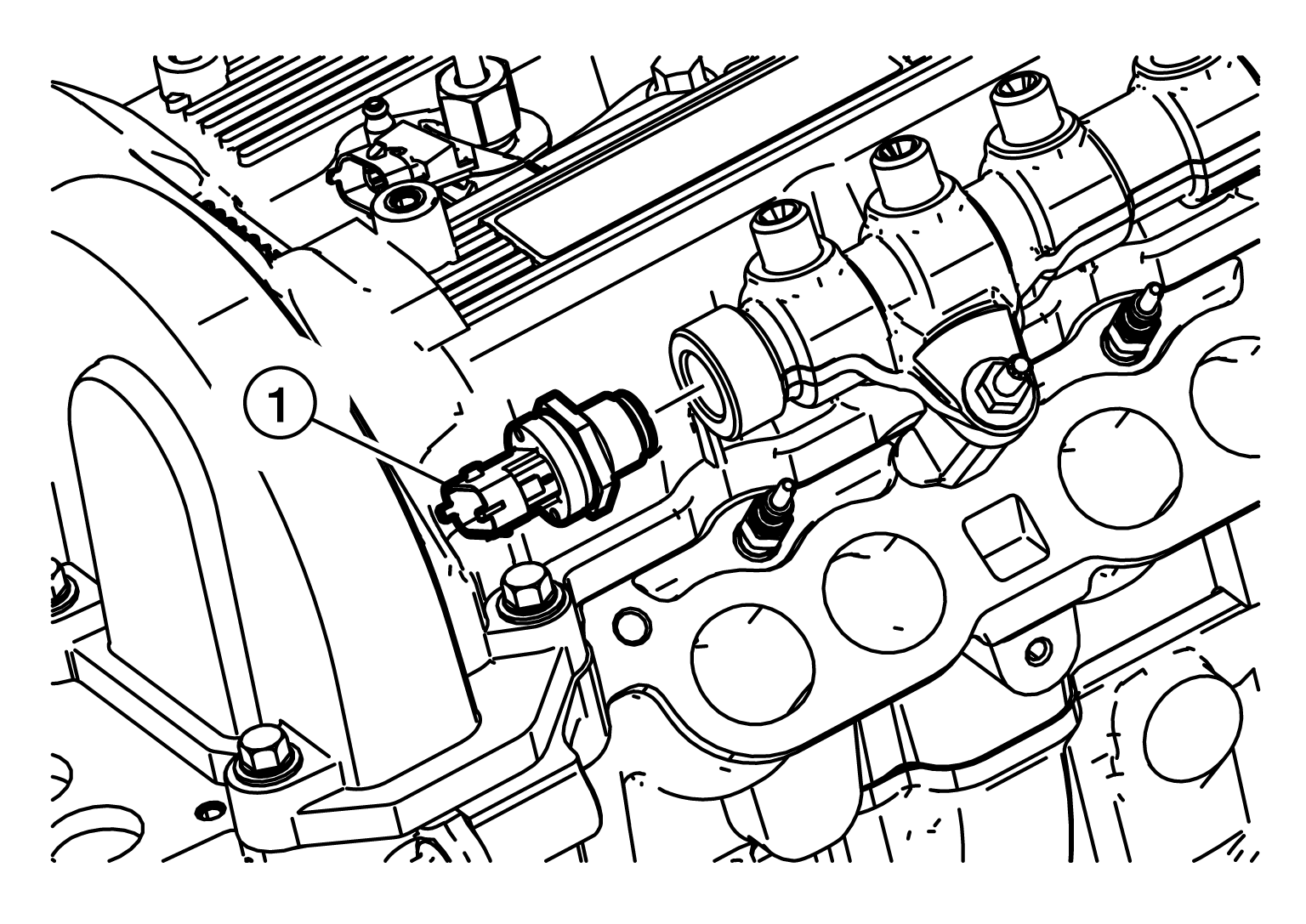

Install the rail fuel pressure sensor (1).

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: Lubricate the threads of the rail fuel pressure sensor with Bosch Lubricant FT1-V27 or equivalent.
Connect the rail fuel pressure sensor to the engine harness.
NOTE: Make sure the electrical harness is not under tension.
Install the EGR cooler. Refer to Removal and Installation .
Connect the battery or batteries. Refer to Battery Disconnect .
WARNING:
Battery acid and battery acid fumes are extremely dangerous and can cause severe burns and explosion. To help reduce the risk of personal injury:
- Wear appropriate goggles and protective clothing.
- Always properly ventilate the area where the service is being performed.
- Never allow battery fluid to come in contact with skin, eyes, fabrics, or painted surfaces.
- To avoid arcing, remove the negative (-) battery cable first and attach the negative (-) battery cable last.
- If acid contacts eyes, skin or clothing, immediately flush with water for 15 minutes and seek medical attention.
Operate the engine and check for leaks.
NOTE:
- Prime the fuel system. Refer to Priming .
- Run CONSULT High-Pressure Fuel System Leak Test. Refer to High-Pressure Fuel System Leak Test .
- If the fuel rail pressure sensor has been replaced, in CONSULT click the Rail Pres button on the Fuel or Timing System Table Reset in Work Support. Refer CONSULT Function .
