Engine Mechanical (CUMMINS 5.0L) (2 Of 2)

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

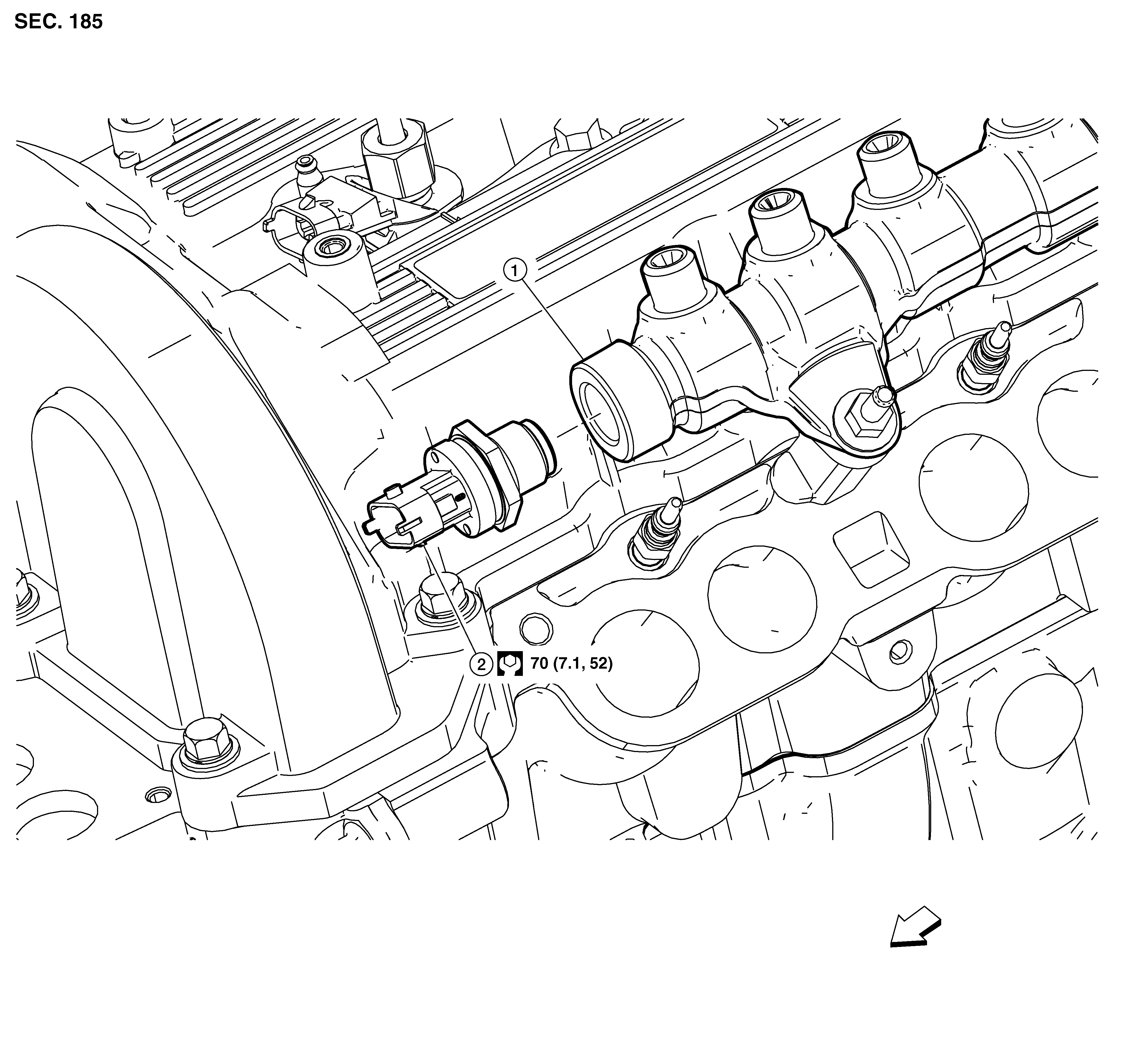

Fig 1: Fuel Rail Pressure Sensor With Torque Specifications
GNSAWBIA2993Z-993Courtesy of NISSAN NORTH AMERICA, INC.

1.

Fuel rail (bank 1)

2.

Fuel rail pressure sensor

SYMBOL

Front
