General Information
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

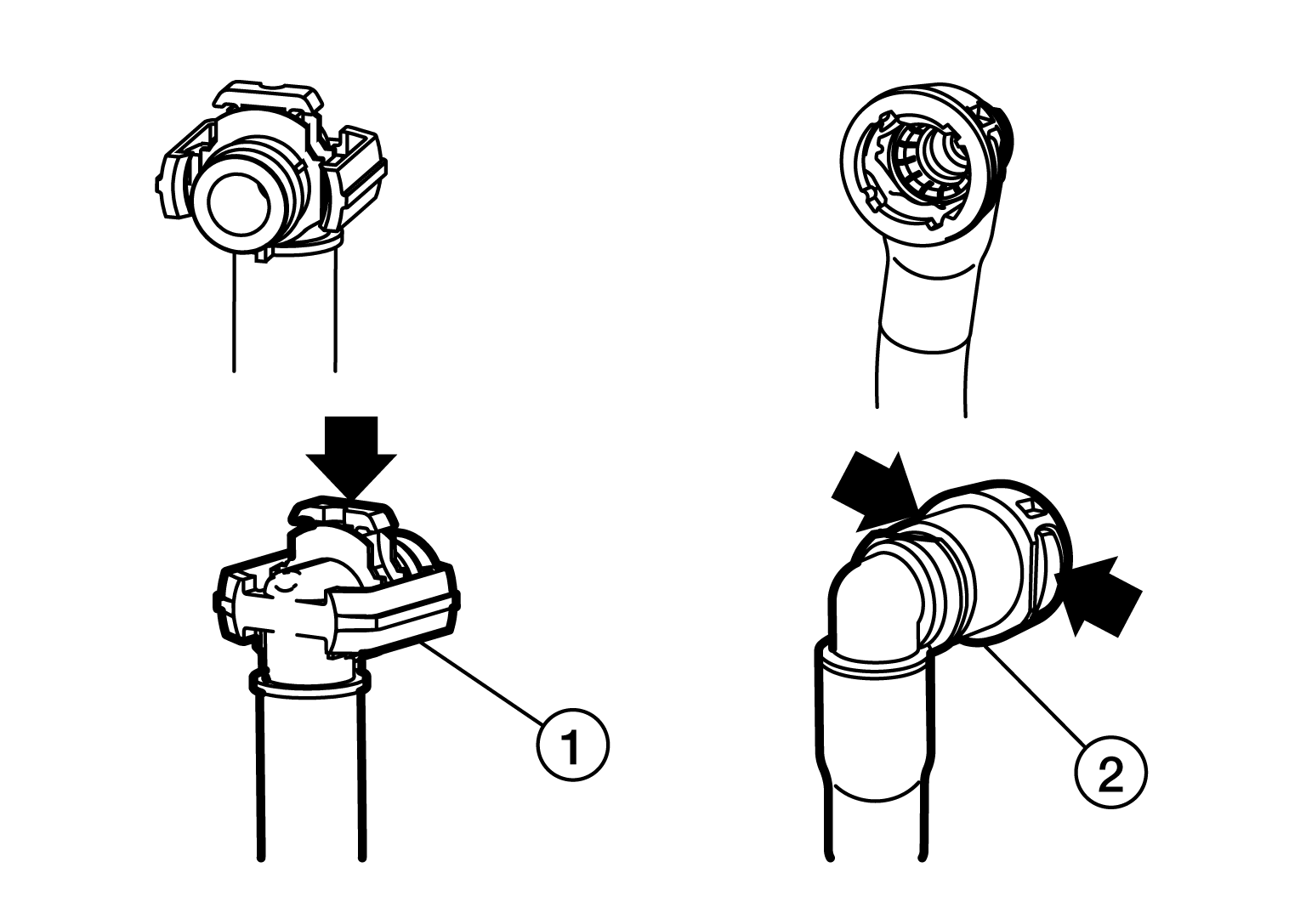

Directions for service of a one-button quick-disconnect connector (1):
- Disconnect the one-button quick-disconnect connector by pressing in the raised section of the clip on the connector.
- With the clip fully depressed, the fuel line can be removed from the mating female port.
- Connect the one-button quick-disconnect connector by pushing the connector into the female mating port until it clicks.
Direction for service of a two-button quick disconnect connector (2):
- Disconnect the two-button quick-disconnect connector by pressing in the locking tangs on both sides of the connector.
- After pressing the opposing locking tangs, the quick-disconnect connector can be removed from the male fuel fitting.
- Connect the two-button quick-disconnect connector by pushing the quick-disconnect connector onto the male fuel fitting until it clicks.
CAUTION:
To avoid possible damage to the fuel connector quick disconnect fitting, do not use a screwdriver or pliers on the fuel connector locking tabs.
Direction for service of an injector quick disconnect connect:

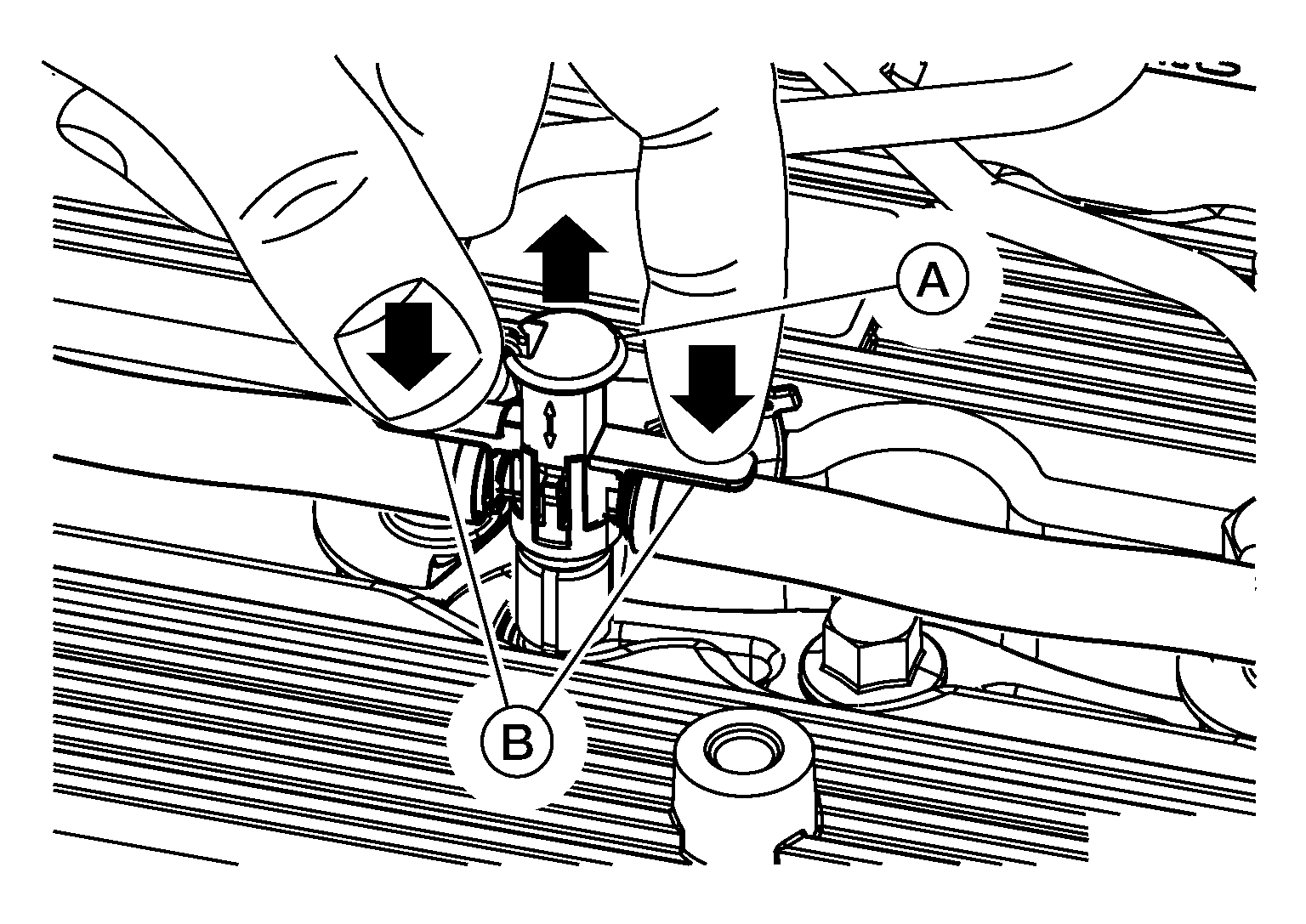

- Disconnect the injector quick disconnect connector by pressing down and holding the connector tabs (B), then pulling up on the center button (A) as shown in the illustration.
- Be sure the connector is fully disengaged before removing the connector from the injector drain port.
- To connect the injector quick disconnect connector, be sure the quick disconnect connector is in the release position (the button is up).
- Press only on the connector tabs to seat the drain line onto the injector drain port. An audible snap sound will be heard when the connector is seated. When the connector snaps into place, press the button to secure the connector.

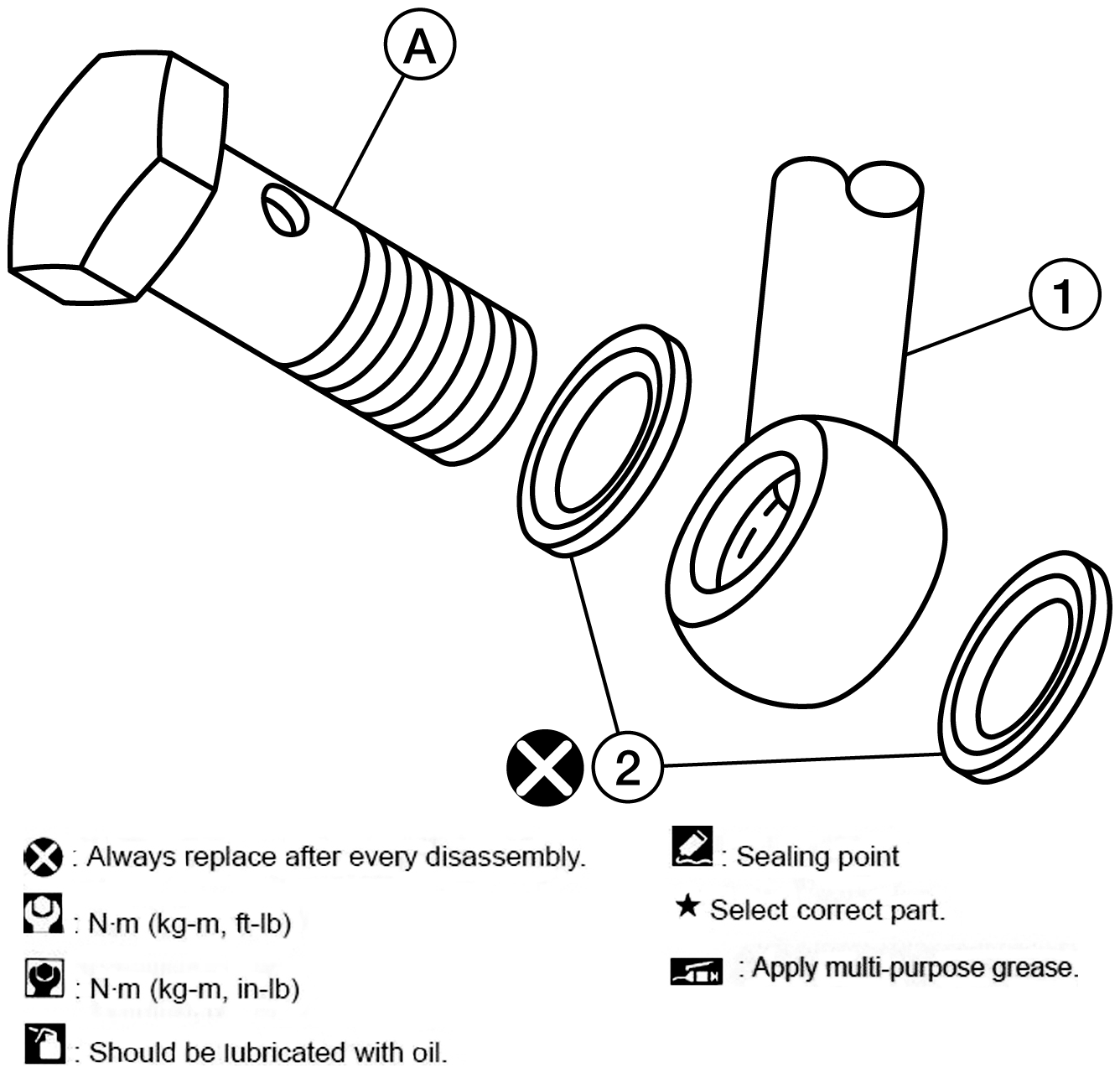

- Sealing washers (2) are used on each sides of a banjo fitting (1).
New sealing washers must be used when installing the banjo bolt (A).
