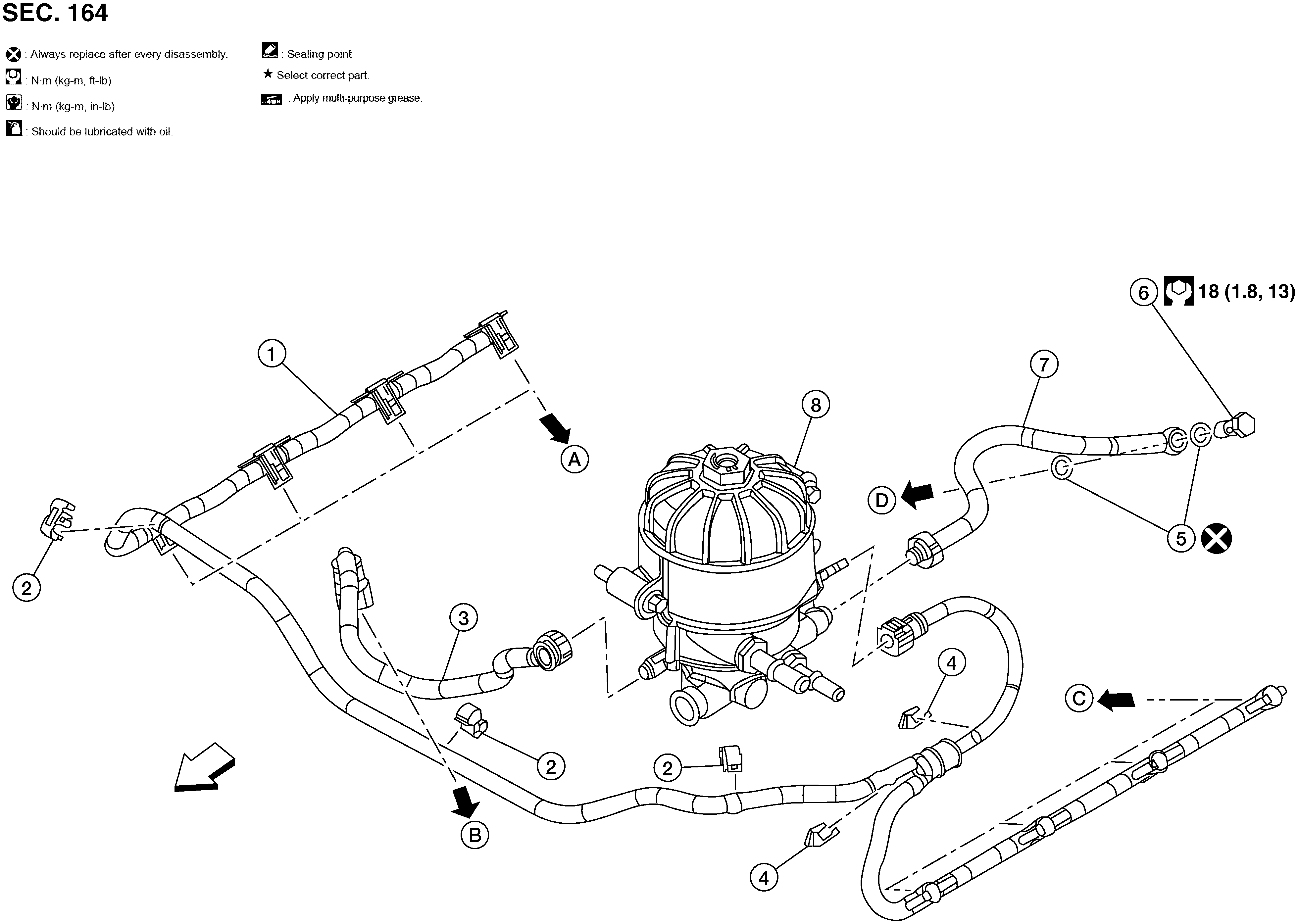

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Injector drain line
|
2.
|
Clip
|
3.
|
Fuel pump drain line
|
|
4.
|
Clip
|
5.
|
Sealing washer
|
6.
|
Banjo bolt
|
|
7.
|
Fuel pressure relief valve drain line
|
8.
|
Fuel filter
|
A.
|
To injectors (bank 1)
|
|
B.
|
To fuel pump
|
C.
|
To injectors (bank 2)
|
D.
|
To fuel rail (bank 2)
|
|
|
Front
|
