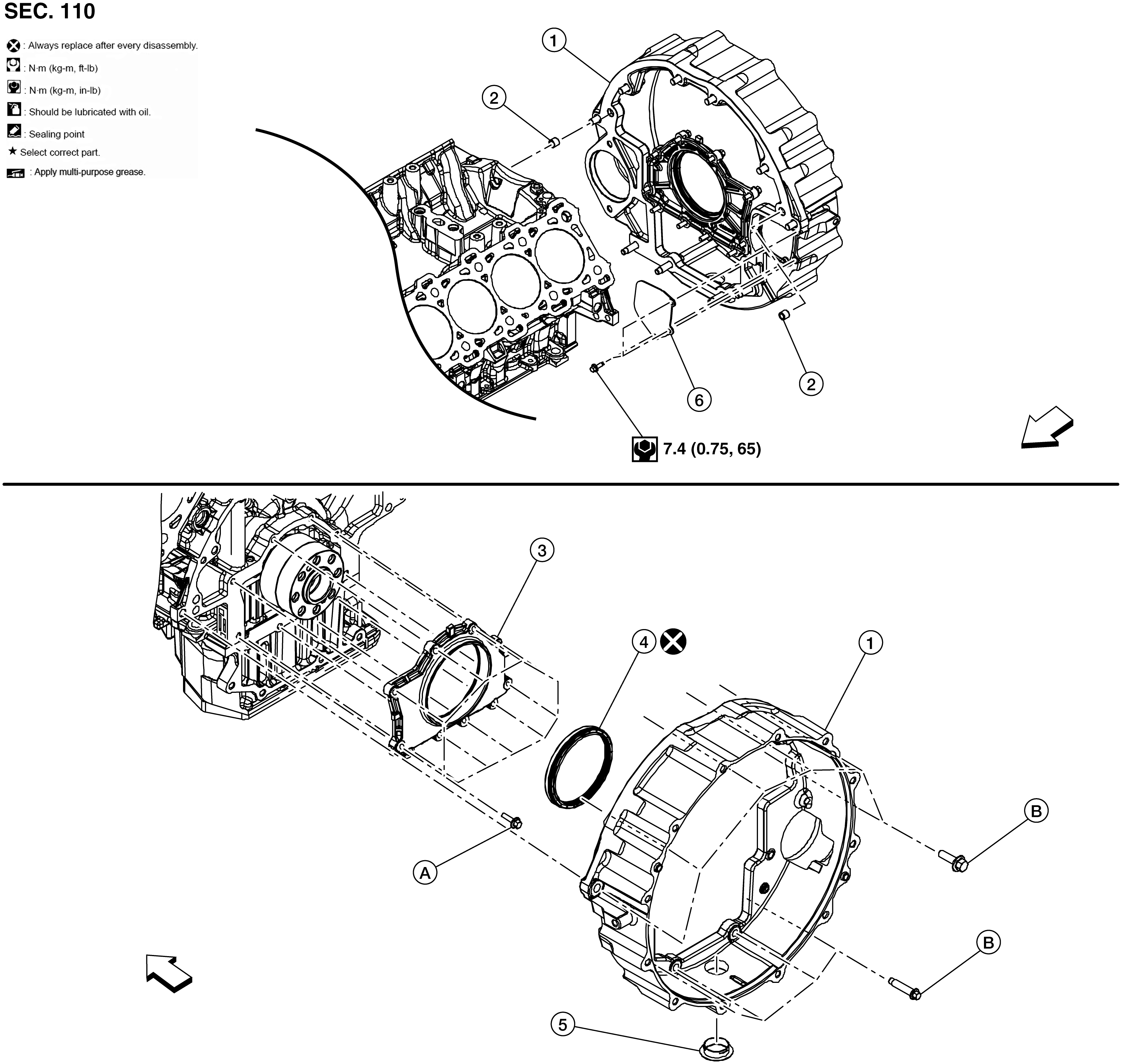

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Flywheel housing |
2. |
Dowel |
3. |
Seal carrier |
|
4. |
Rear oil Seal |
5. |
Plug |
6. |
Access cover |
|
A. |
Refer to Removal and Installation - Rear Oil Seal . |
B. |
Refer to INSTALLATION |
|
Front |
