Disassembly and Assembly: Disassembly

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

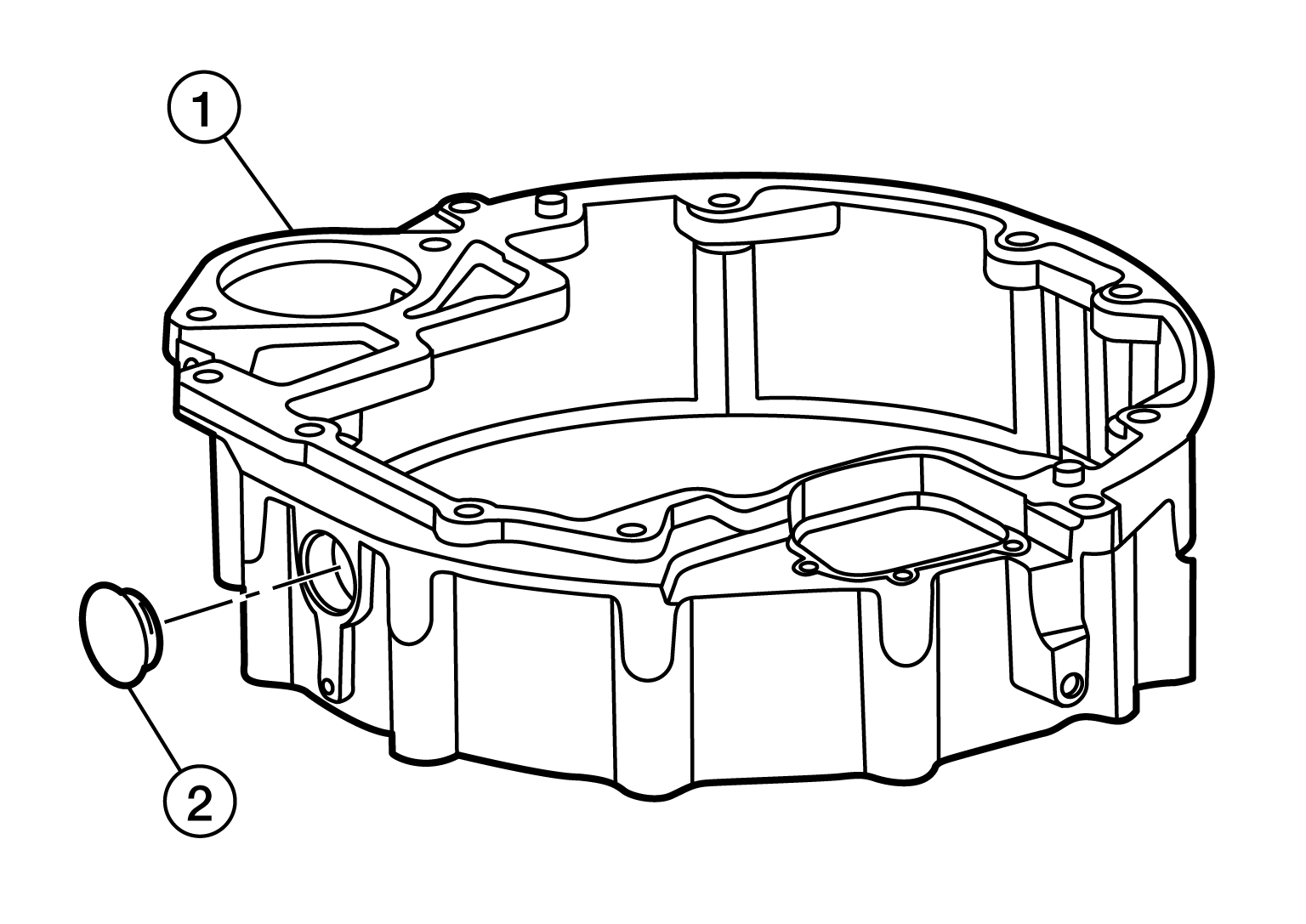

  1. Remove plug (2) in the flywheel housing (1).
    GNSALBIA2435Z-435Courtesy of NISSAN NORTH AMERICA, INC.
  2. Remove bolts (A) and remove the access plate (1).
    GNSALBIA2436Z-436Courtesy of NISSAN NORTH AMERICA, INC.
