Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

Install the flexplate (2) and spacer (1) and finger-tighten the bolts (A).

Courtesy of NISSAN NORTH AMERICA, INC.

(3)

: Flywheel housing

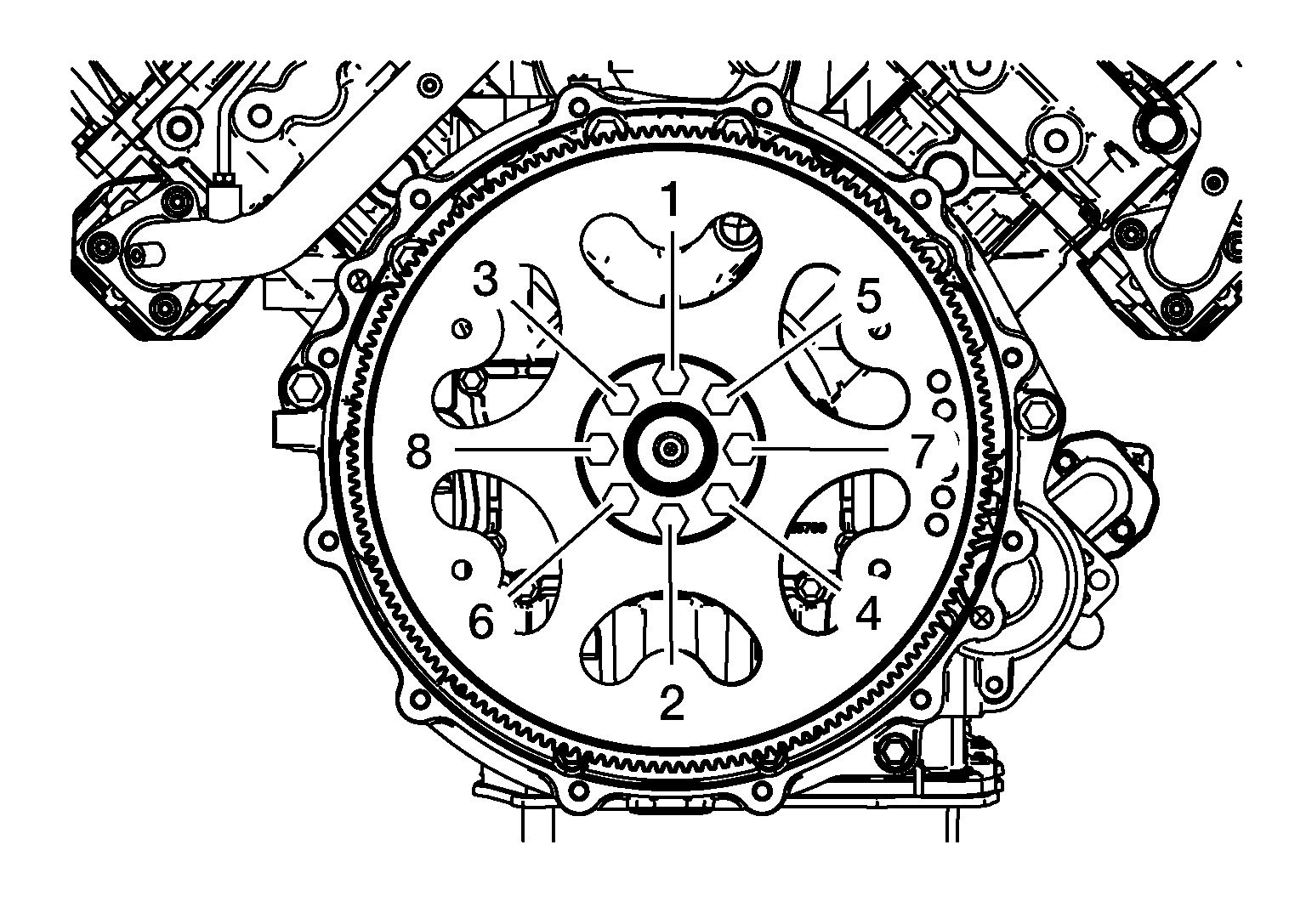

Tighten the bolts in the sequence shown to the specified torque.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE: To prevent the crankshaft from rotating while tightening the flexplate, hold the vibration damper using Tool.

Tool	:-- - (J-54424)

Step 1	: 56 N.m (5.7 kg-m, 41 ft-lb)
Step 2	: Tighten 60°

Installation of the remaining components is in the reverse order of removal.
NOTE: Operate the engine and check for leaks.
