General Information
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

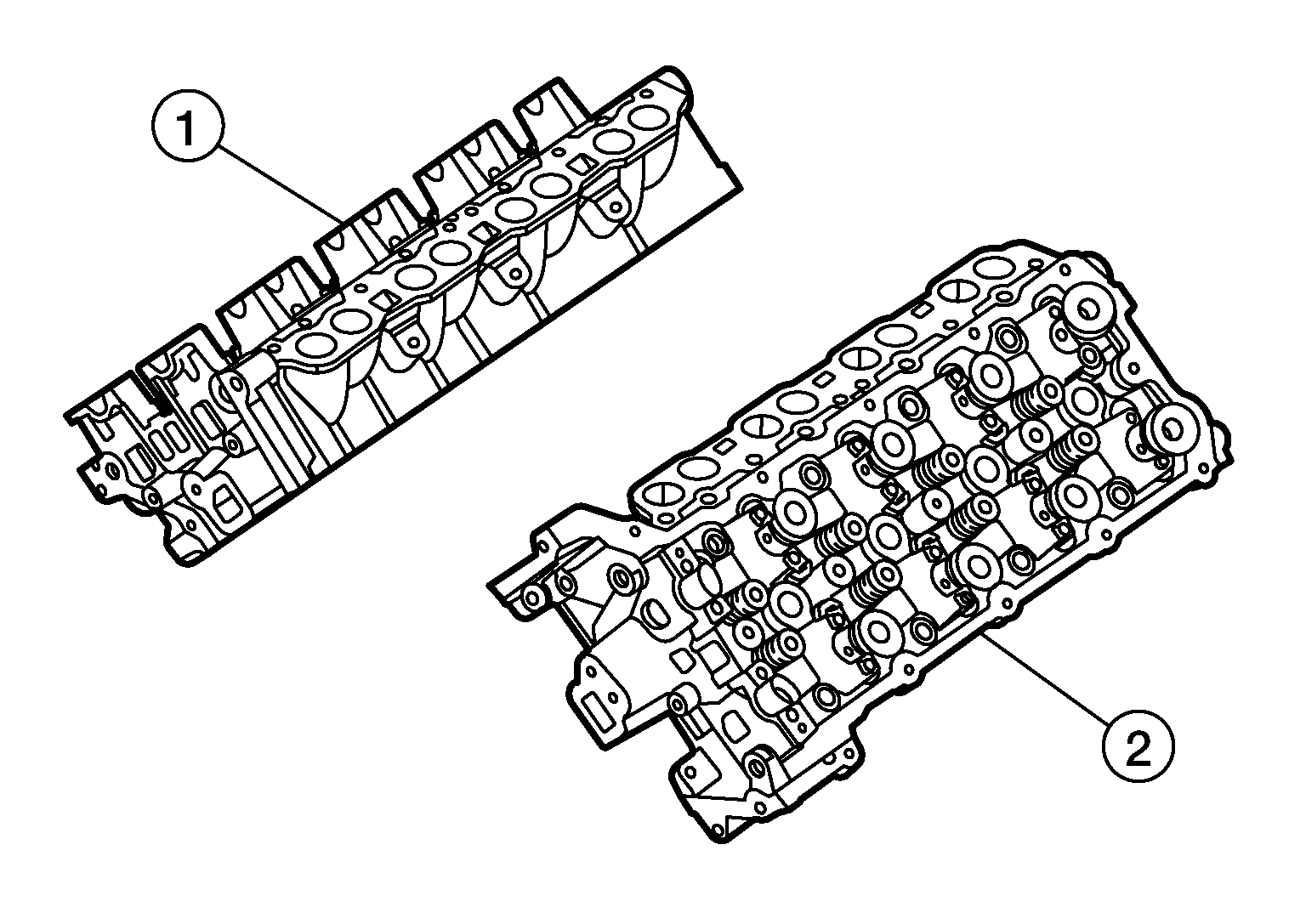

- The cylinder heads [bank 1 (1)] and [bank 2 (2)] are not interchangeable.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Use extreme caution when setting the cylinder heads down. Set the head upside down or on a soft, clean surface to prevent damage to the combustion face.
- Always use new sealing washers when installing the injectors.
