Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. If the crankshaft has been removed or rotated after timing chain drive removal, follow these steps to place the crankshaft at TDC for cylinder number 1.

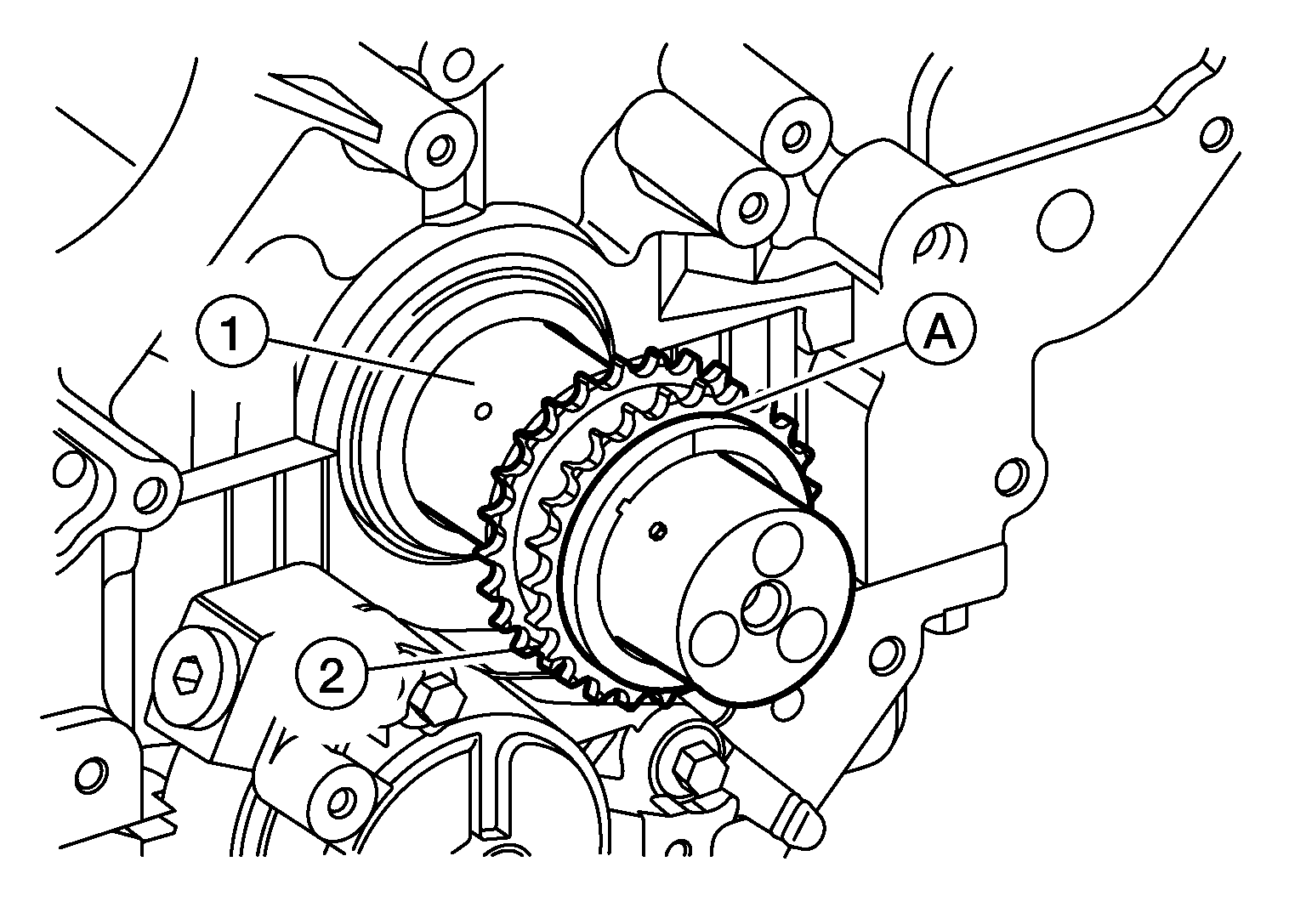

    GNSALBIA2372Z-372Courtesy of NISSAN NORTH AMERICA, INC.
    1. Install the crankshaft sprocket (oil/fuel pump) (2) on the crankshaft (1).
    2. Use Tool to rotate the crankshaft until the mark (A) on the crankshaft sprocket (oil/fuel pump) (2) is at the top.

      Tool

      :-- - (J-54401)

    3. Remove the crankshaft sprocket (oil/fuel pump) (2).
      CAUTION: To avoid possible rocker lever damage, camshafts must only be installed when cylinder #1 is at top dead center.

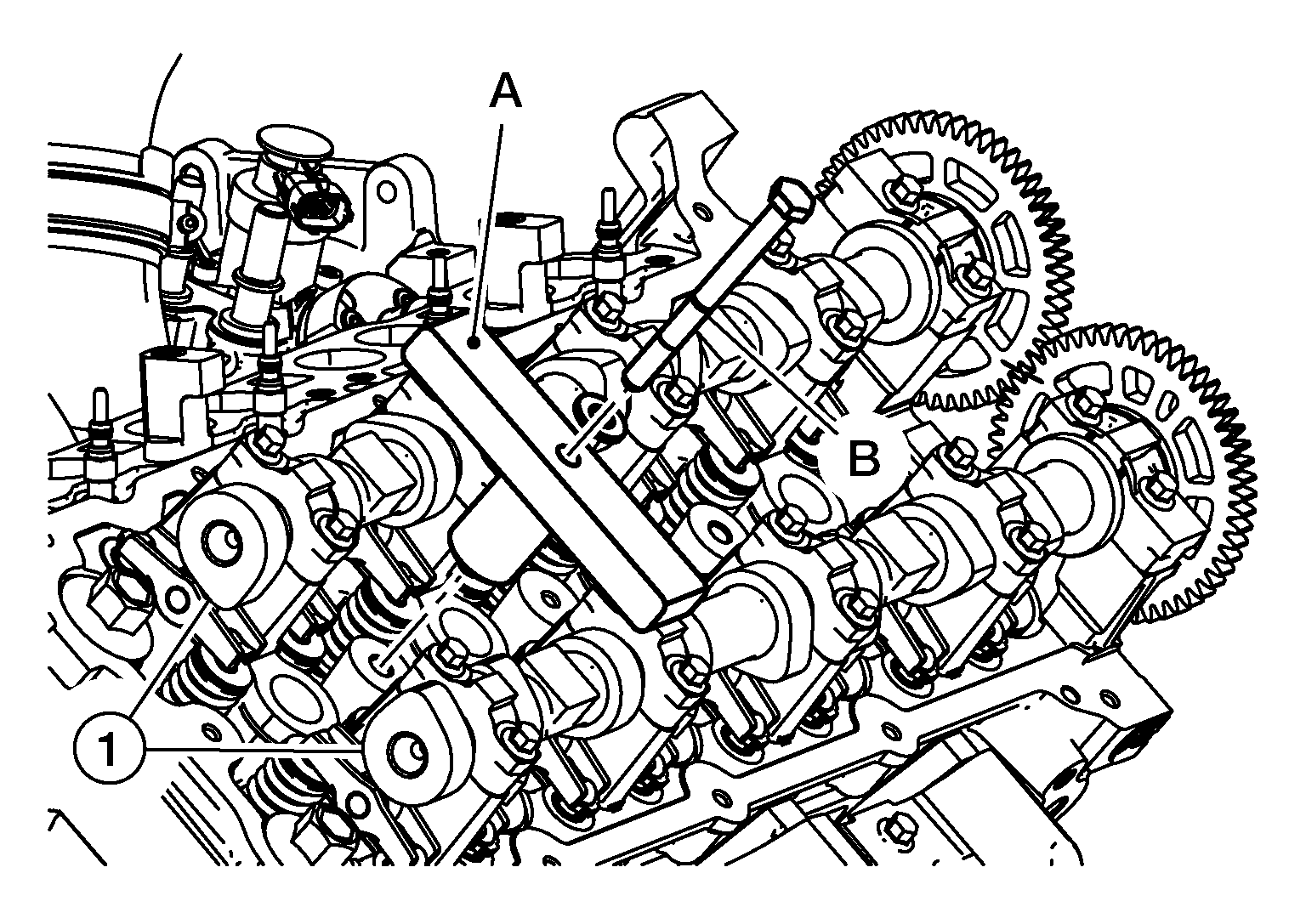

  2. Install the Tool (A) on the camshafts (1) for bank 1 and bank 2.
    GNSALBIA2354Z-354Courtesy of NISSAN NORTH AMERICA, INC.

    Tool (A)

    :-- - (J-54409)

    Bolt (B)

    : 25 N.m (2.6 kg-m, 18 ft-lb)

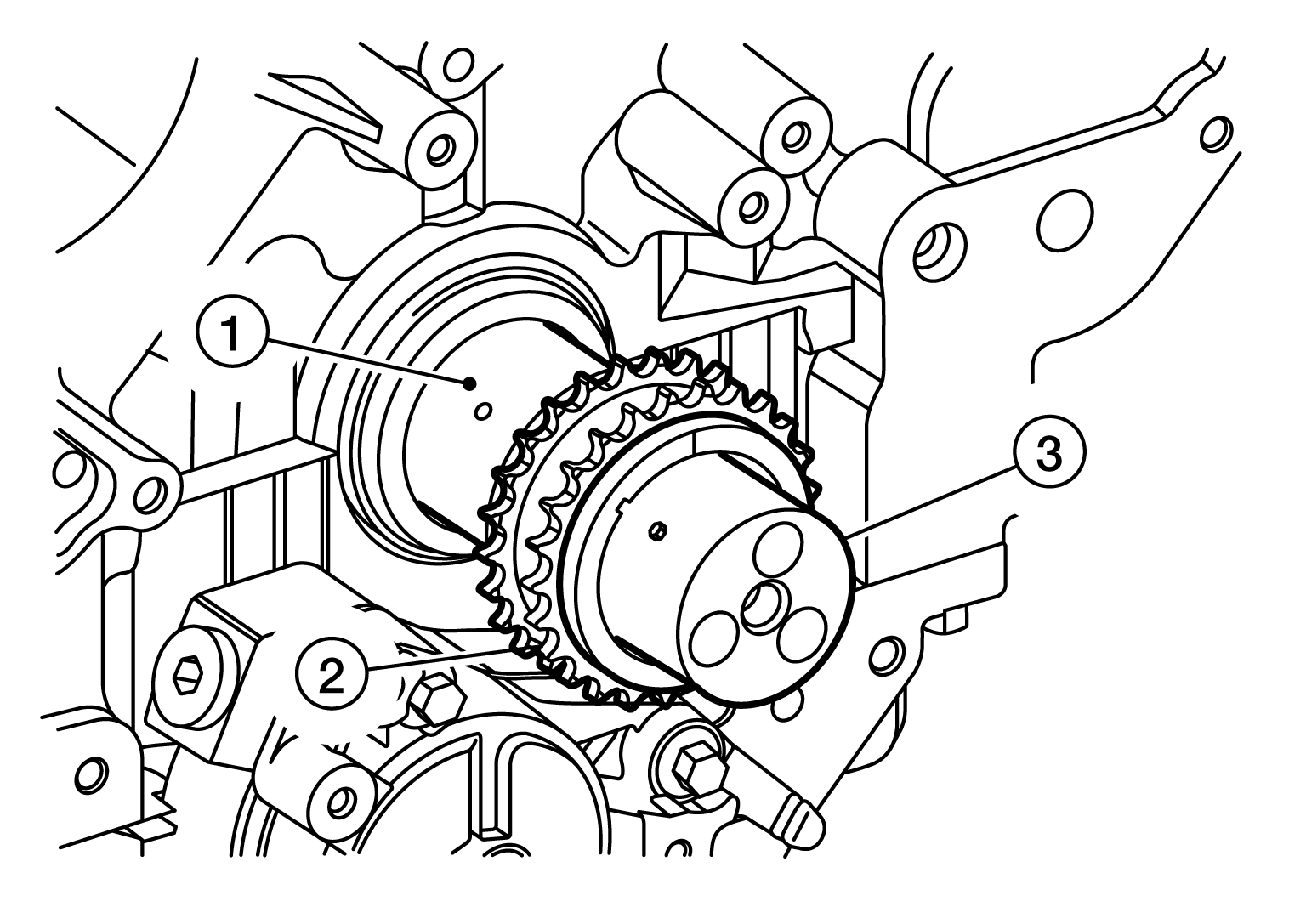

  3. Align the rear crankshaft sprocket (2) with the crankshaft dowel pins (1) and slide onto the crankshaft (3).
    GNSALBIA2821Z-821Courtesy of NISSAN NORTH AMERICA, INC.
  4. Install the camshaft timing chain [bank 2 (1)] first and then install the camshaft timing chain [bank 1 (2)].

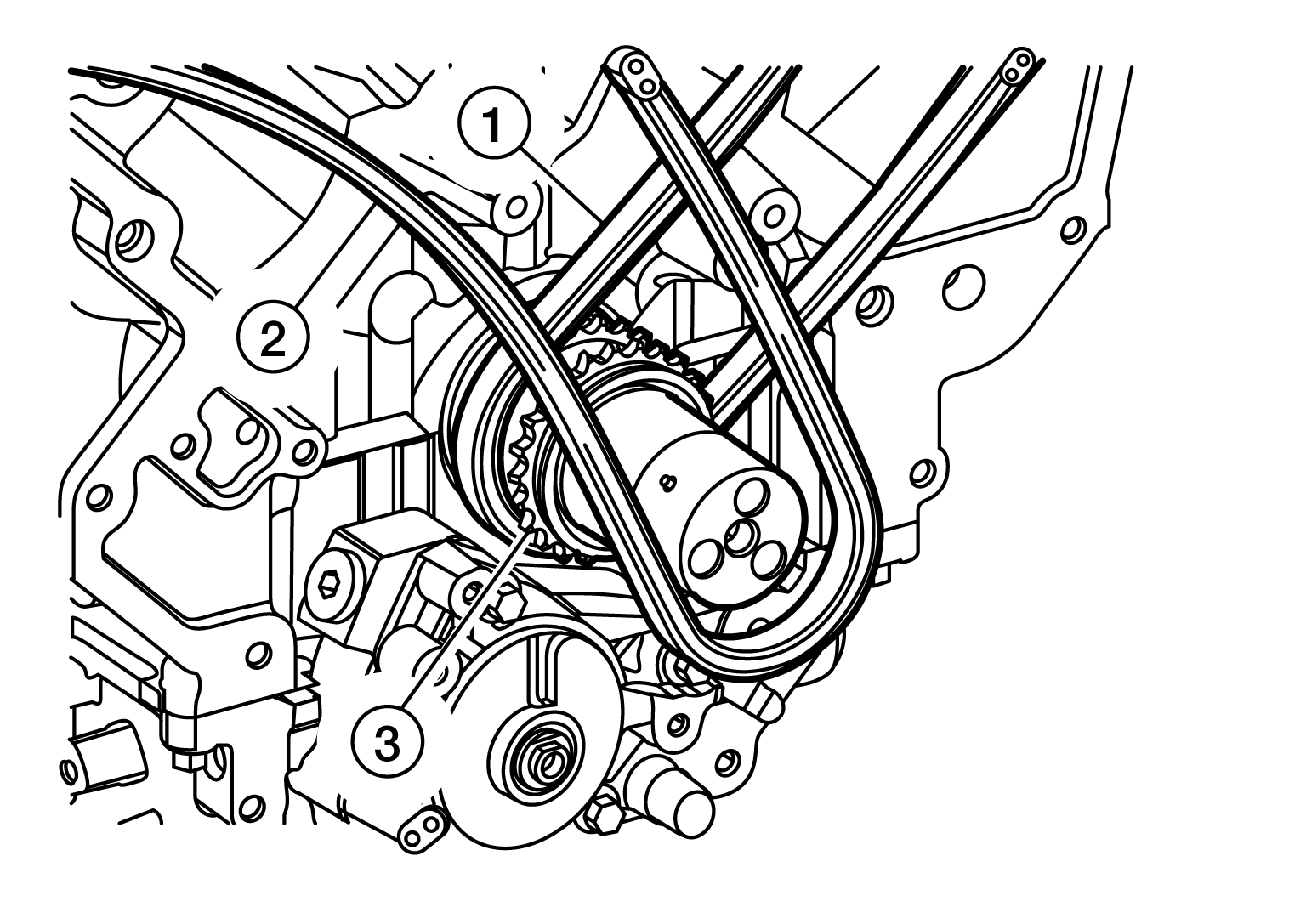

    GNSALBIA2373Z-373Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The camshaft timing chain (bank 2) goes on the rear teeth of the crankshaft sprocket (3).

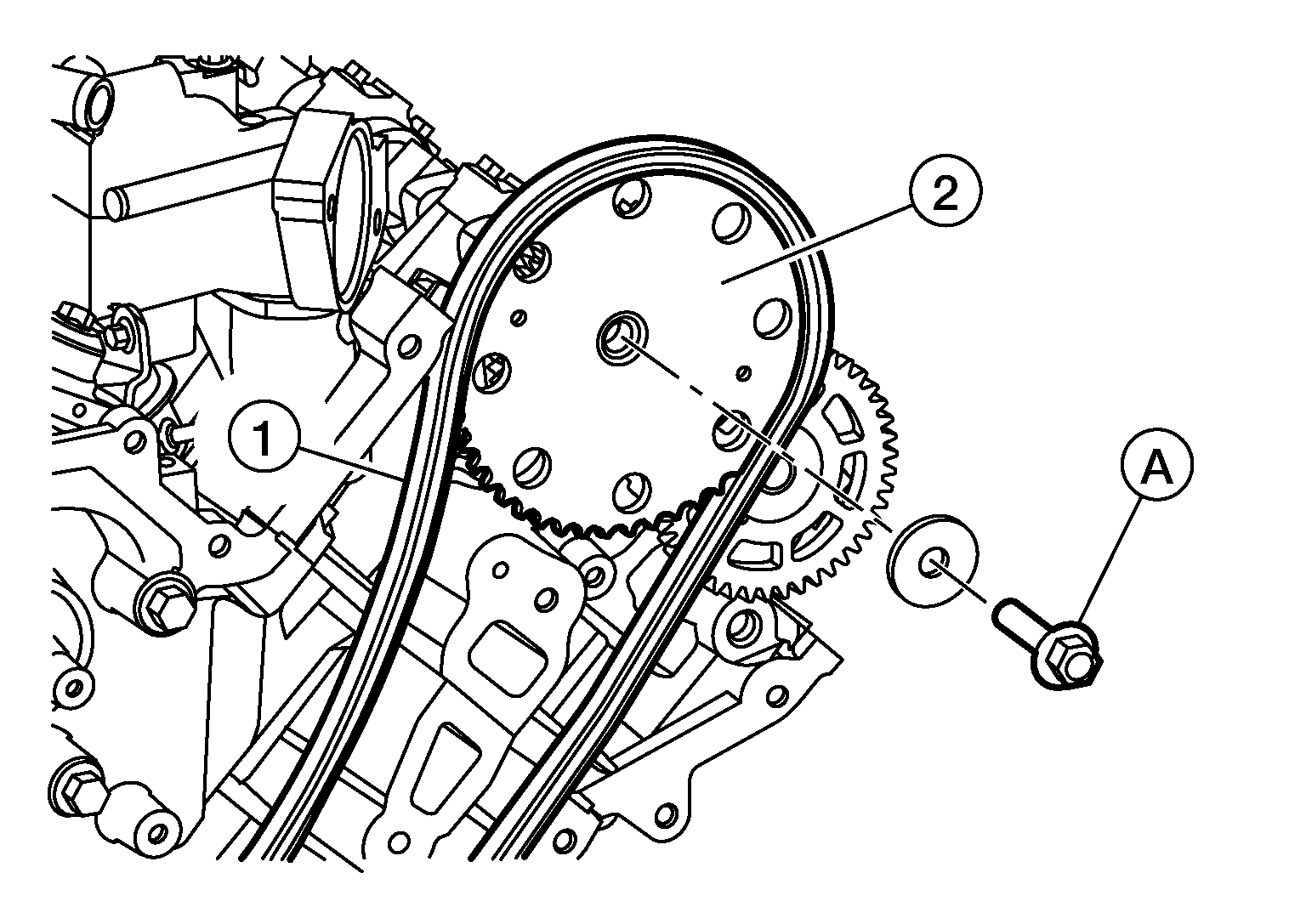

  5. Install the camshaft timing chain [bank 2 (1)] to the camshaft sprocket [bank 2 (1)]. Hand tighten bolt (A).
    GNSALBIA2374Z-374Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • To avoid possible camshaft damage, ensure the camshaft and camshaft sprocket are properly seated before tightening the camshaft sprocket bolt.
    • To avoid possible engine performance issue due to mistiming, do not tighten the camshafts at this time.

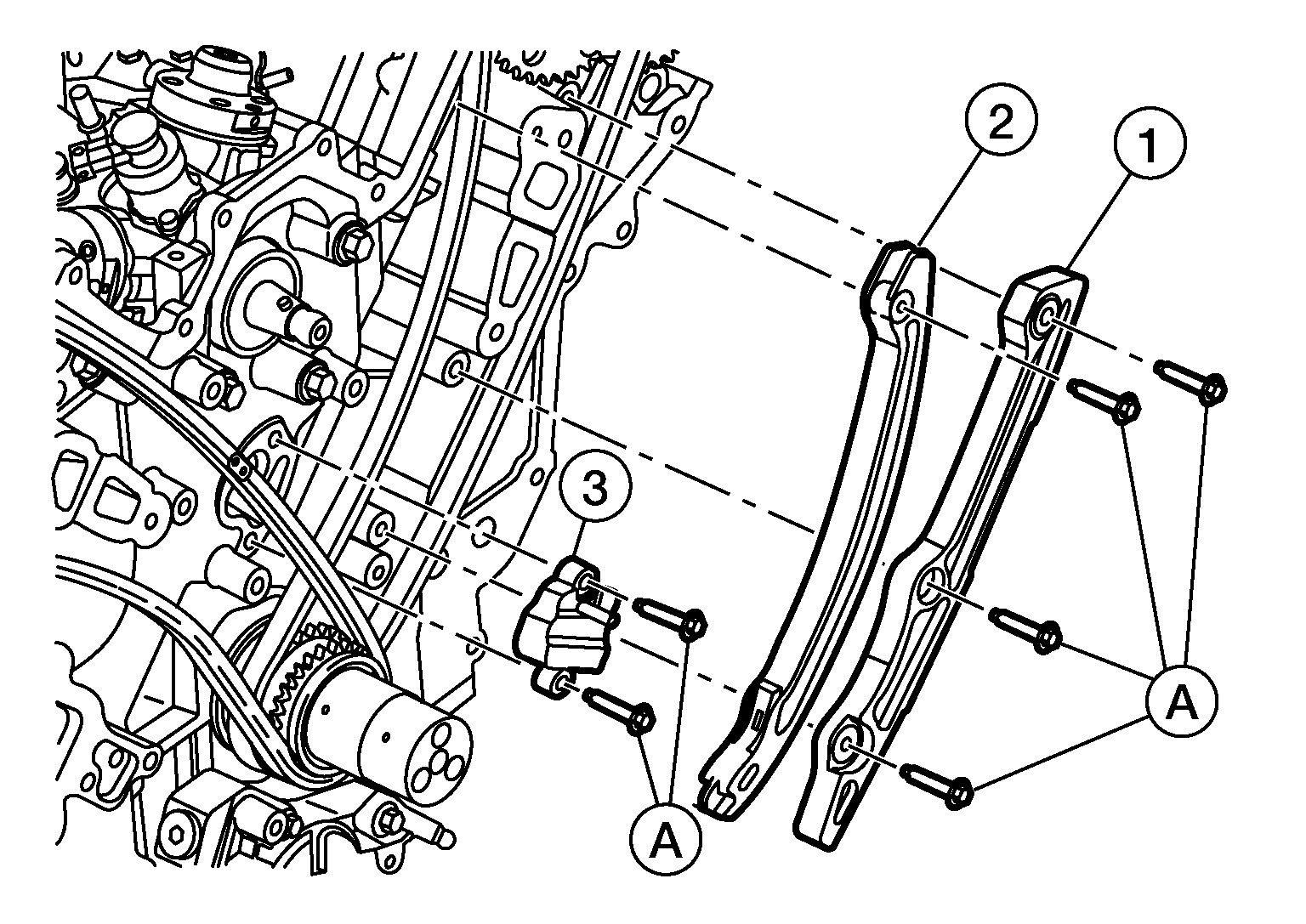

  6. Install the camshaft timing chain tension guide [bank 2 (1)], the camshaft timing chain slack guide [bank 2 (2)], the camshaft timing tensioner [bank 2 (3)], and tighten bolts (A). Verify that the left camshaft drive chain runs across the camshaft tension guide and camshaft chain tensioner.
    GNSALBIA2375Z-375Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:
    • Make sure bushings are installed in camshaft timing chain tension guide (bank 2) before installation.
    • Make sure the bushing are installed in camshaft timing chain slack guide [bank 2 (1)] before installation.

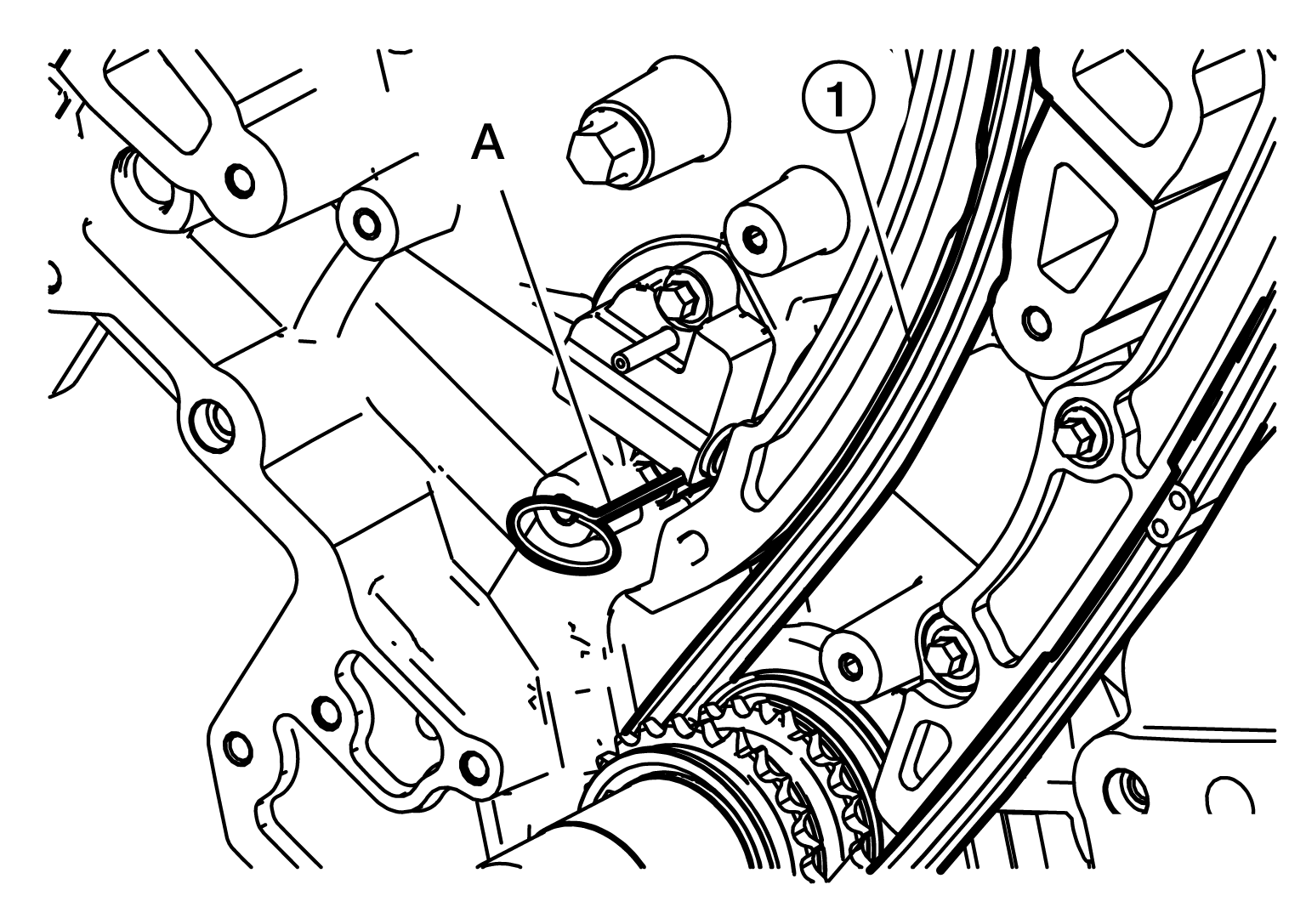

  7. Remove the Tool (A) to apply tension to the camshaft timing chain (1).
    GNSALBIA2376Z-376Courtesy of NISSAN NORTH AMERICA, INC.

    Tool

    :-- - (J-54418)

  8. Install the camshaft timing chain [bank 1 (1)] on the camshaft sprocket [bank 1 (2)]. Hand tighten the camshaft bolt (A).

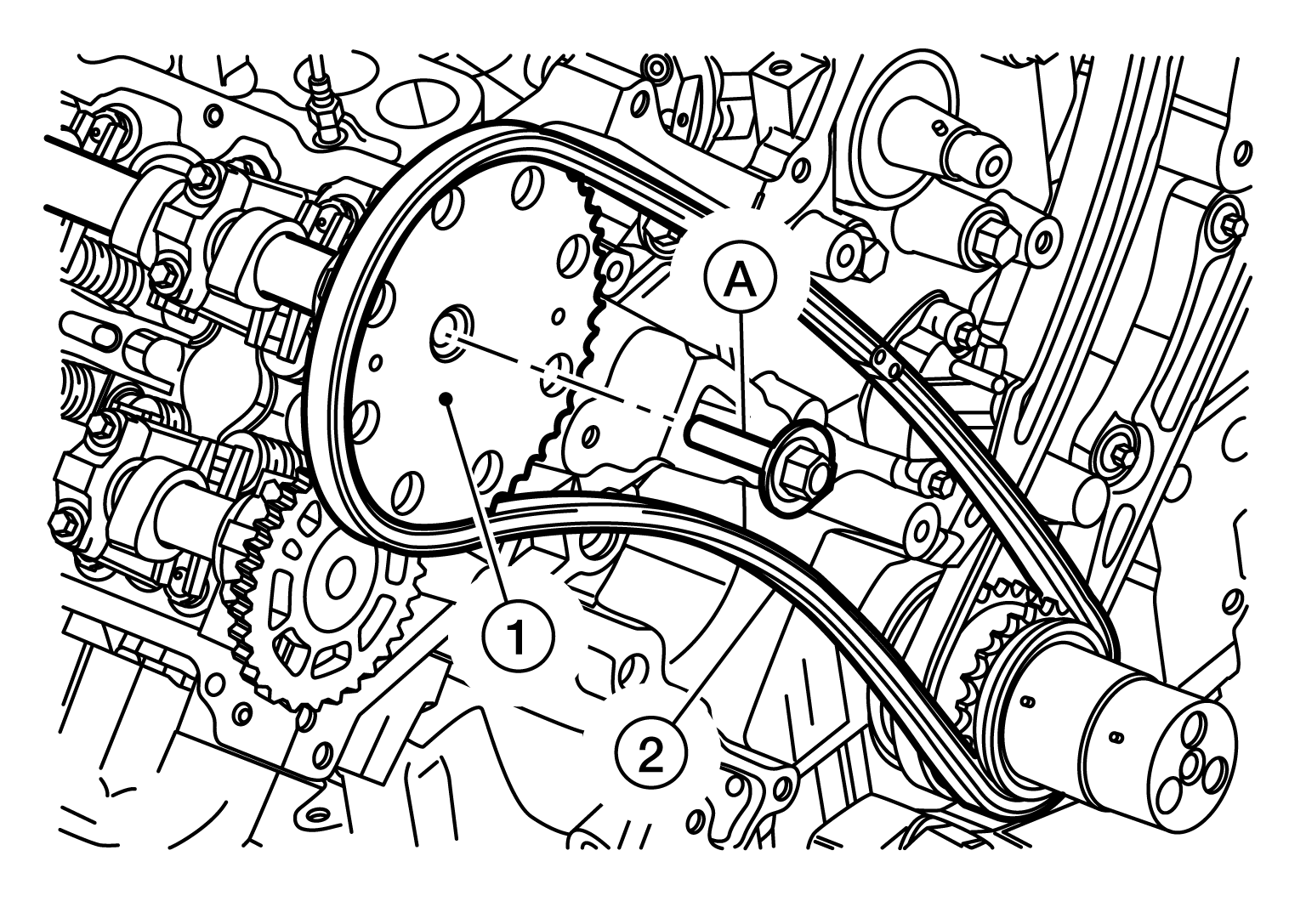

    GNSALBIA2377Z-377Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • To avoid possible camshaft damage, ensure the camshaft and camshaft sprocket are properly seated before tightening the camshaft sprocket bolt.
    • To avoid possible engine performance issue due to mistiming, do not tighten the camshafts at this time.
  9. Install the camshaft timing chain tension guide [bank 1 (1)] and slack guide [bank 1 (2)] and tighten the bolts (A).

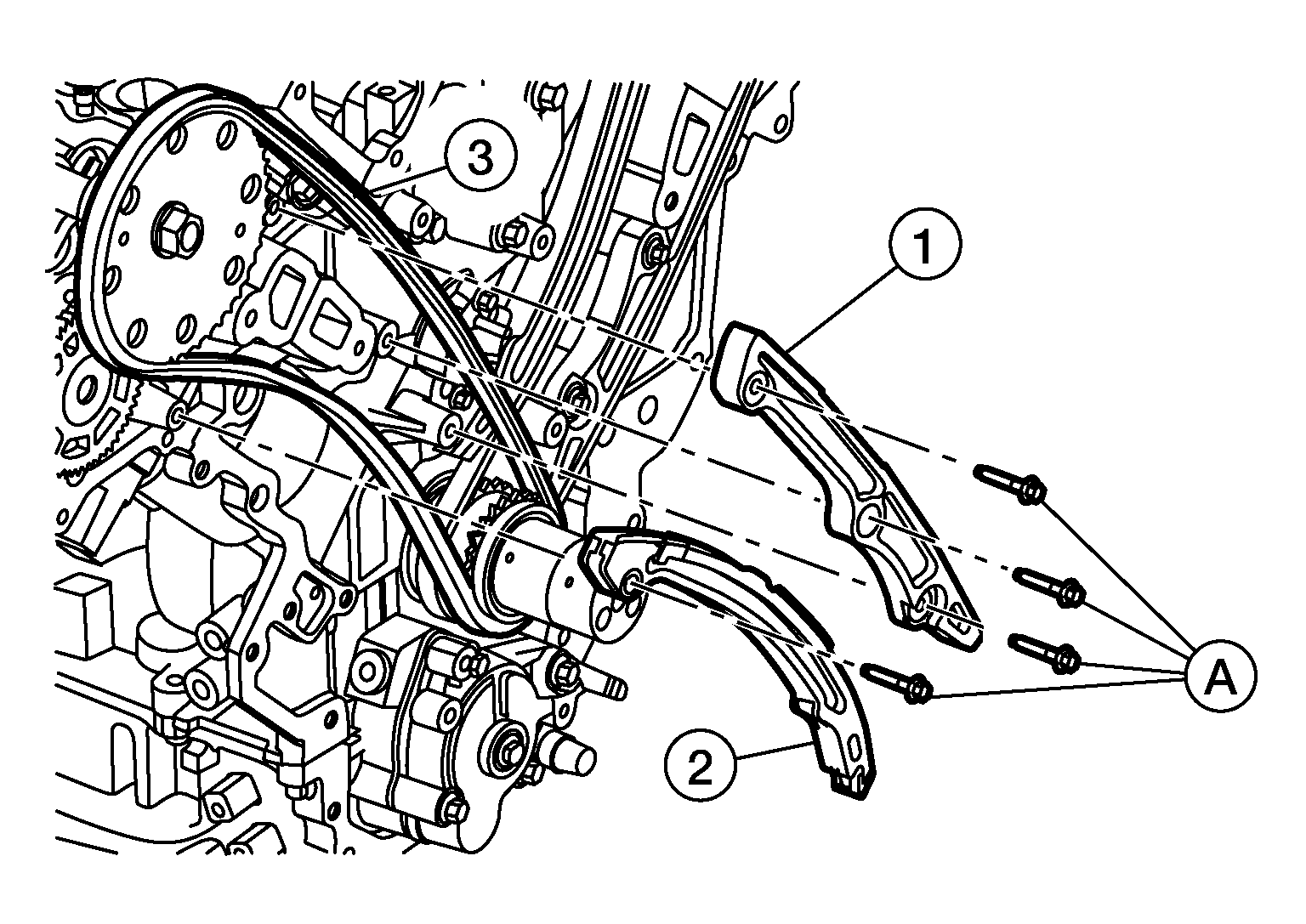

    GNSALBIA2378Z-378Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Verify that the camshaft timing chain [bank 1 (3)] runs across the slack guide (2) and tension guide (1).

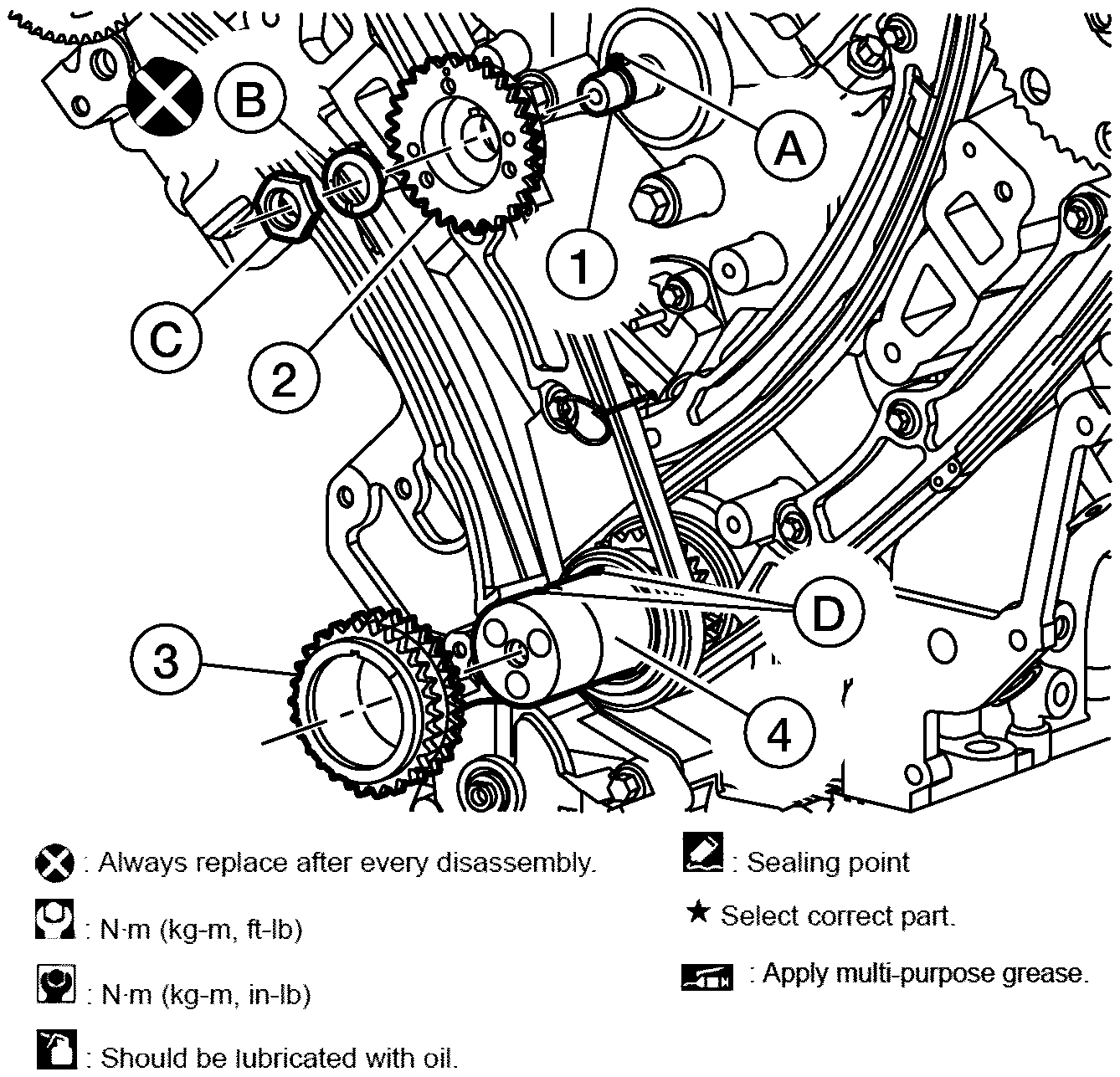

  10. Align the crankshaft sprocket (3) with the crankshaft dowel pins (D) and install the crankshaft sprocket on the crankshaft (4).
    GNSALBIA2379Z-379Courtesy of NISSAN NORTH AMERICA, INC.
  11. Align the fuel pump sprocket (2) with the fuel pump dowel pin (A) and install it on the fuel pump (1).
  12. Hand tighten the fuel pump sprocket nut (C).
    CAUTION: Do not reuse the washer (B).

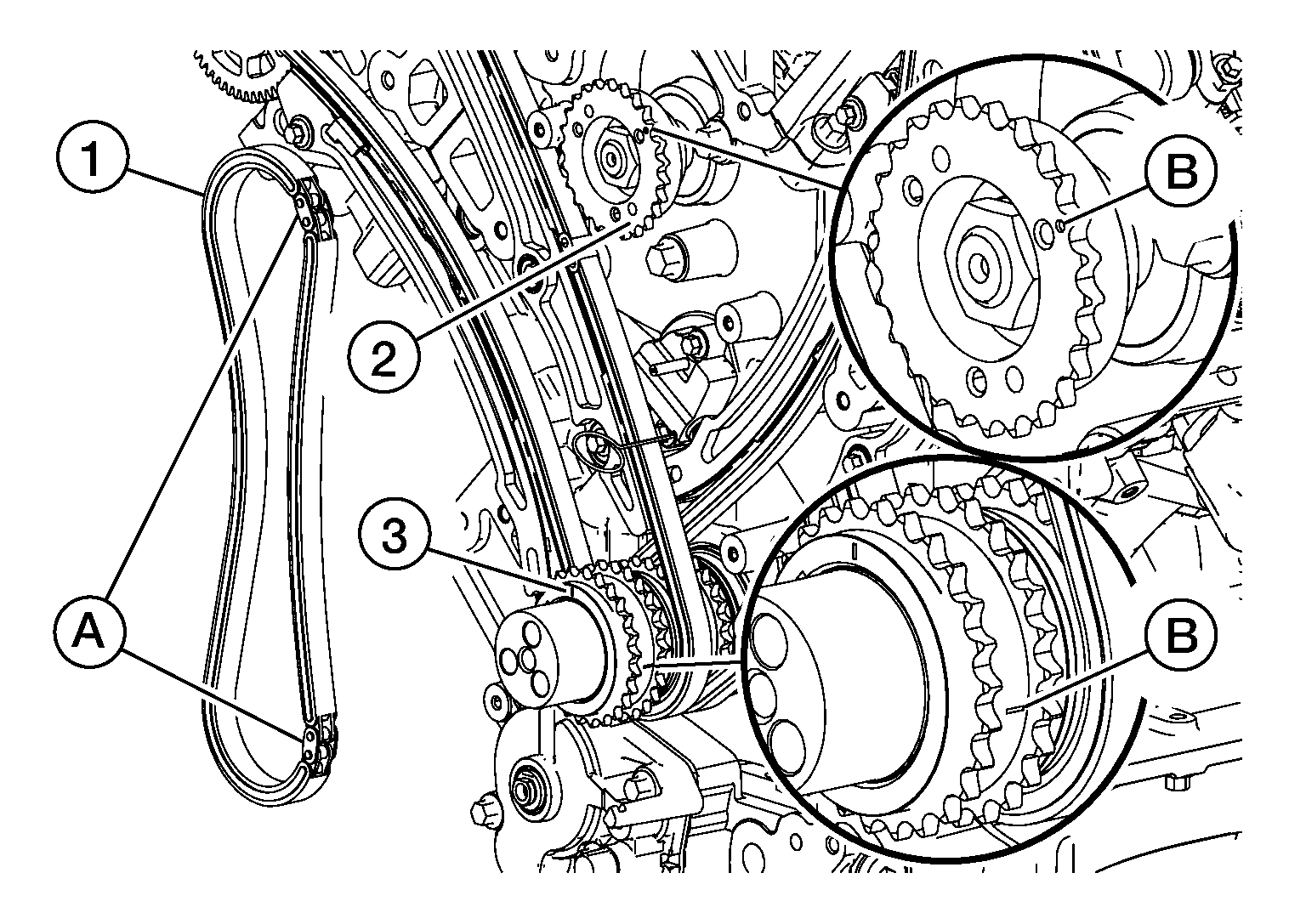

  13. Install the fuel pump timing chain (1) on the fuel pump sprocket (2) and the crankshaft sprocket (oil/fuel pump) (3). Place the fuel pump timing chain on the rear teeth of the crankshaft sprocket (oil/fuel pump). Match the blue links (A) with the timing marks (B) on both sprockets.
    GNSALBIA2380Z-380Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: The fuel pump shaft and sprocket may have turned slightly during disassembly. To align the fuel pump with cylinder number 1 TDC, it can be necessary to put the sprocket on and align it using a suitable tool.

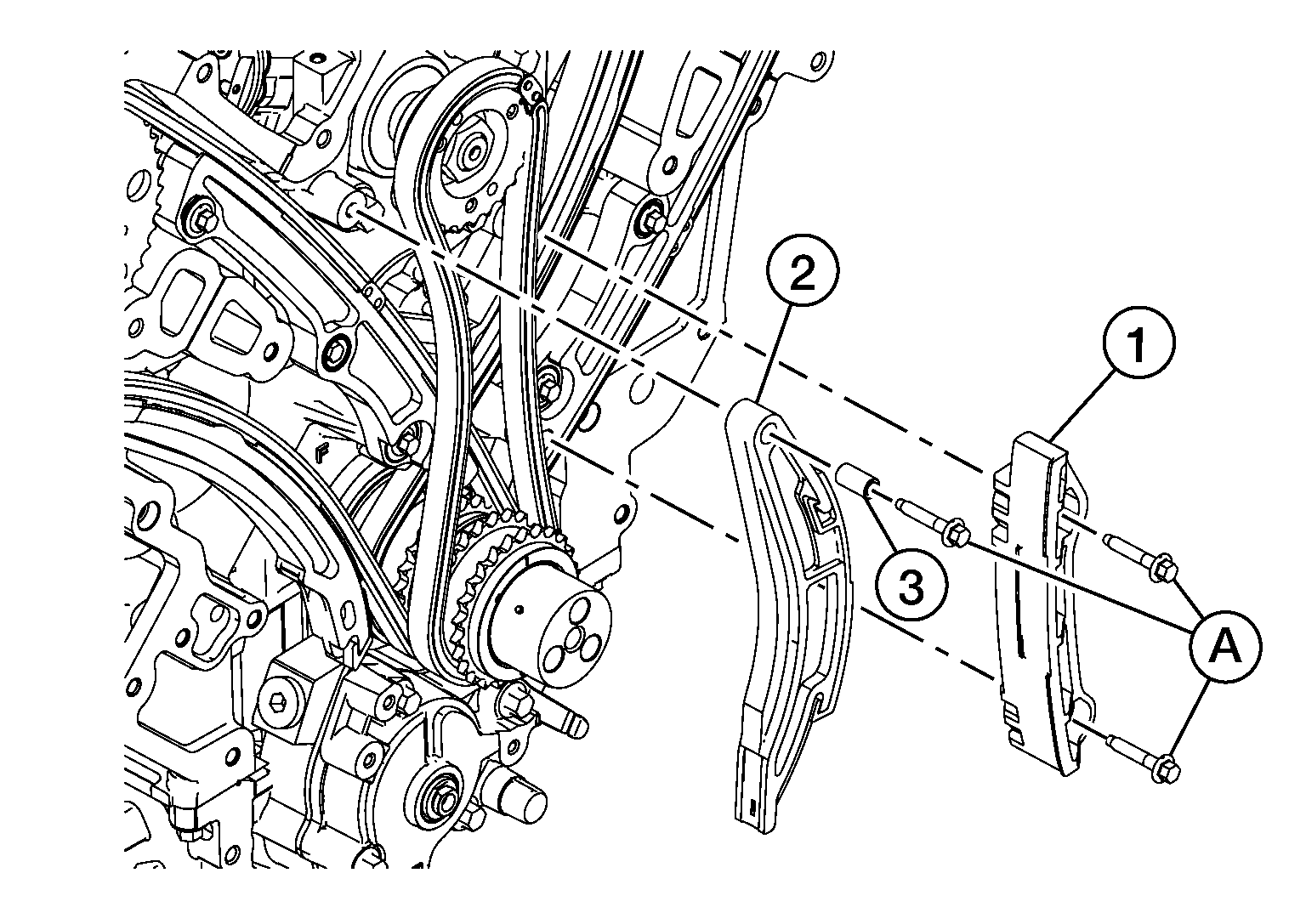

  14. Install the fuel pump tension guide (1), slack guide (2) and tighten the bolts (A) to the specified torque.
    GNSALBIA2381Z-381Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:
    • Make sure bushing (3) is installed in the fuel pump chain slack guide (2) before installation.
    • Verify that the fuel pump chain runs across the guide and tensioner arm.
  15. Tighten the nut for the fuel pump sprocket (1) while holding the sprocket with a suitable tool (A).

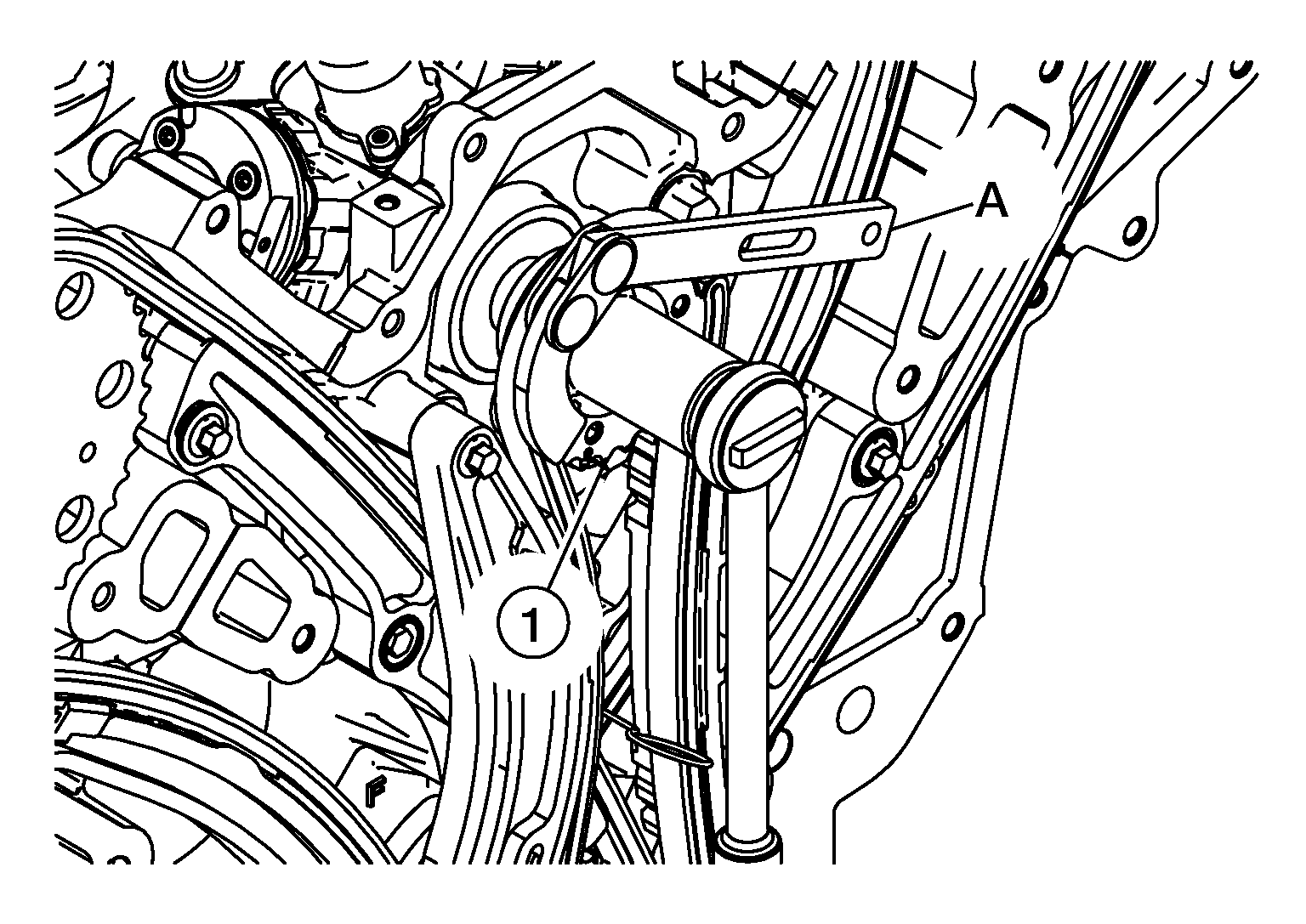

    GNSALBIA2382Z-382Courtesy of NISSAN NORTH AMERICA, INC.

    Bolt (A)

    : 80 N.m (8.2 kg-m, 59 ft-lb)

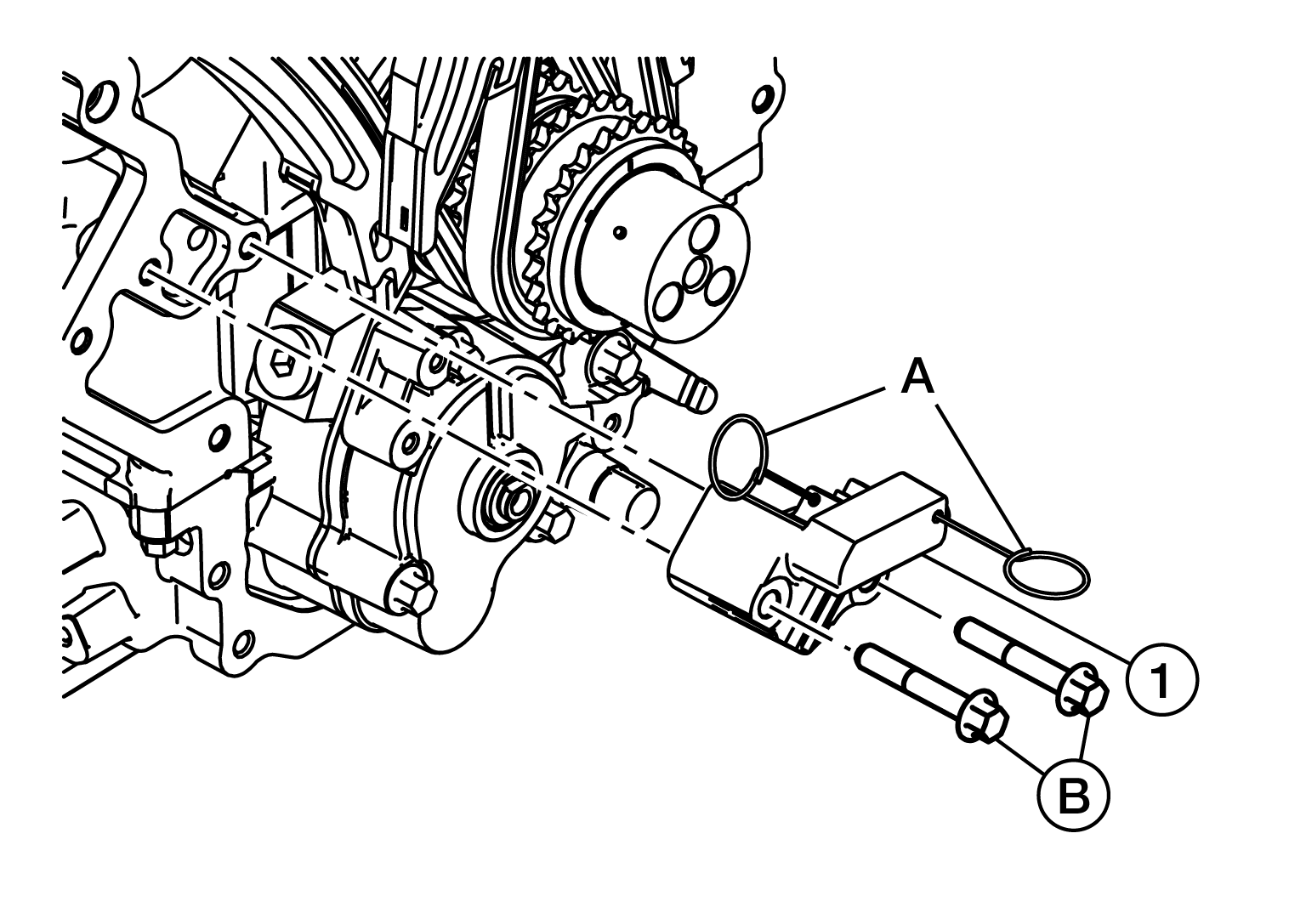

  16. Install the dual timing chain tensioner [bank 1 (1)] and tighten bolts (B).
    GNSALBIA2383Z-383Courtesy of NISSAN NORTH AMERICA, INC.

    Bolts (B)

    : 22 N.m (2.2 kg-m, 16 ft-lb)

  17. Remove Tool (A) from the dual timing chain tensioner [bank 1 (1)] to apply tension to the chains.
    NOTE: Check that the slack has been removed from the chains.

    Tool

    :-- - (J-54418)

  18. Install the oil pump sprocket (1) and hand tighten bolt (A). Install the oil pump drive chain (2) on the oil pump sprocket and crankshaft sprocket (oil /fuel pump).
    GNSALBIA2796Z-796Courtesy of NISSAN NORTH AMERICA, INC.
  19. Install the oil pump tensioner guide (3) and tighten the bolts (B).
  20. Install the oil pump tensioner and oil pump slack guide (4) and tighten bolt (C).
  21. Install the leg (D) of the tensioner spring in the slot in the arm.
    NOTE: Verify that the oil pump chain runs across the slack guide and tension guide. Check for excessive slack in the oil pump chain.
  22. Tighten the bolt for the oil pump sprocket (1) while holding the sprocket with a suitable tool (A).

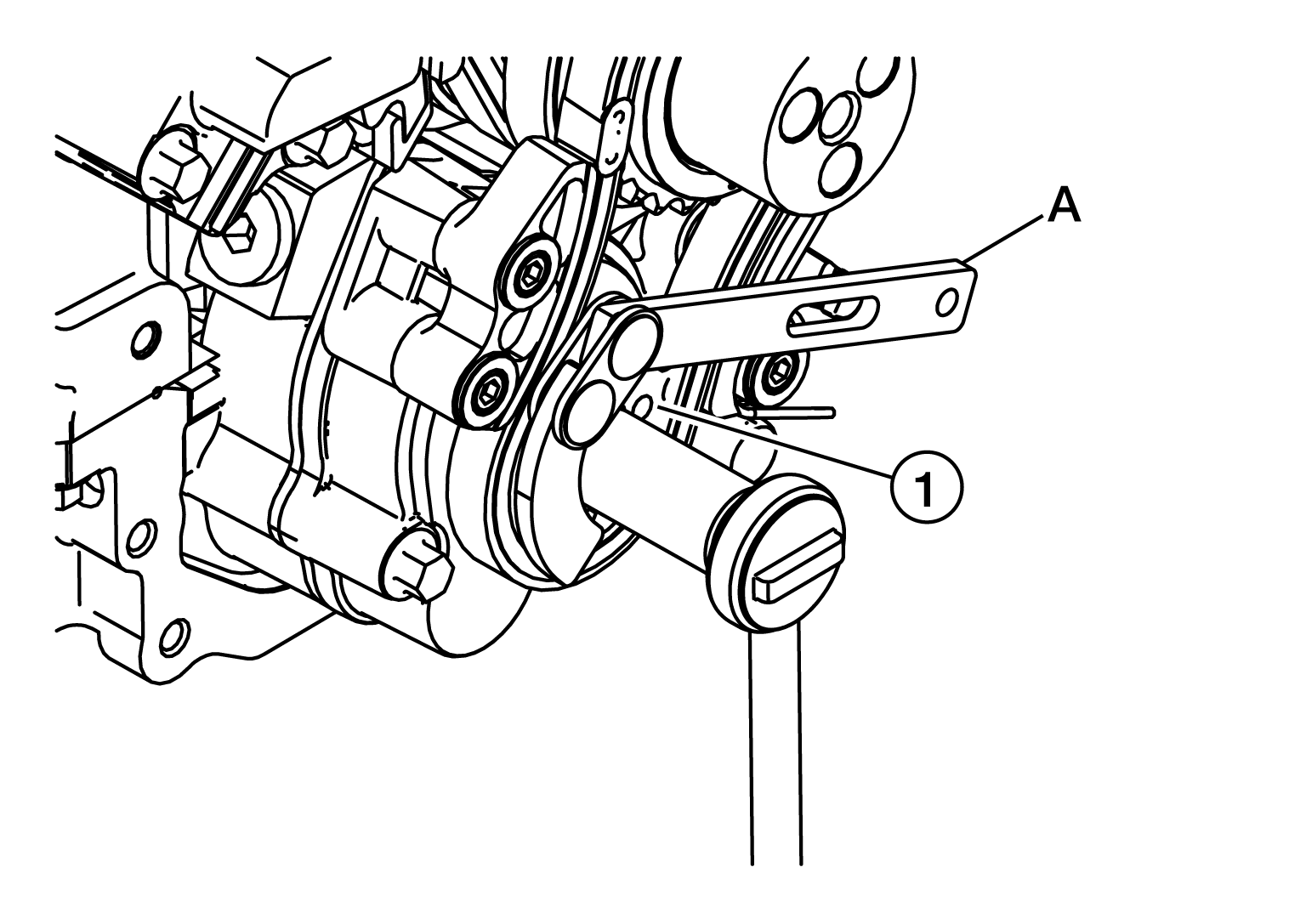

    GNSALBIA2384Z-384Courtesy of NISSAN NORTH AMERICA, INC.

    Bolt

    : 23 N.m (2.3 kg-m, 17 ft-lb)

  23. Check that Tools (A) have been removed from chain tensioners.

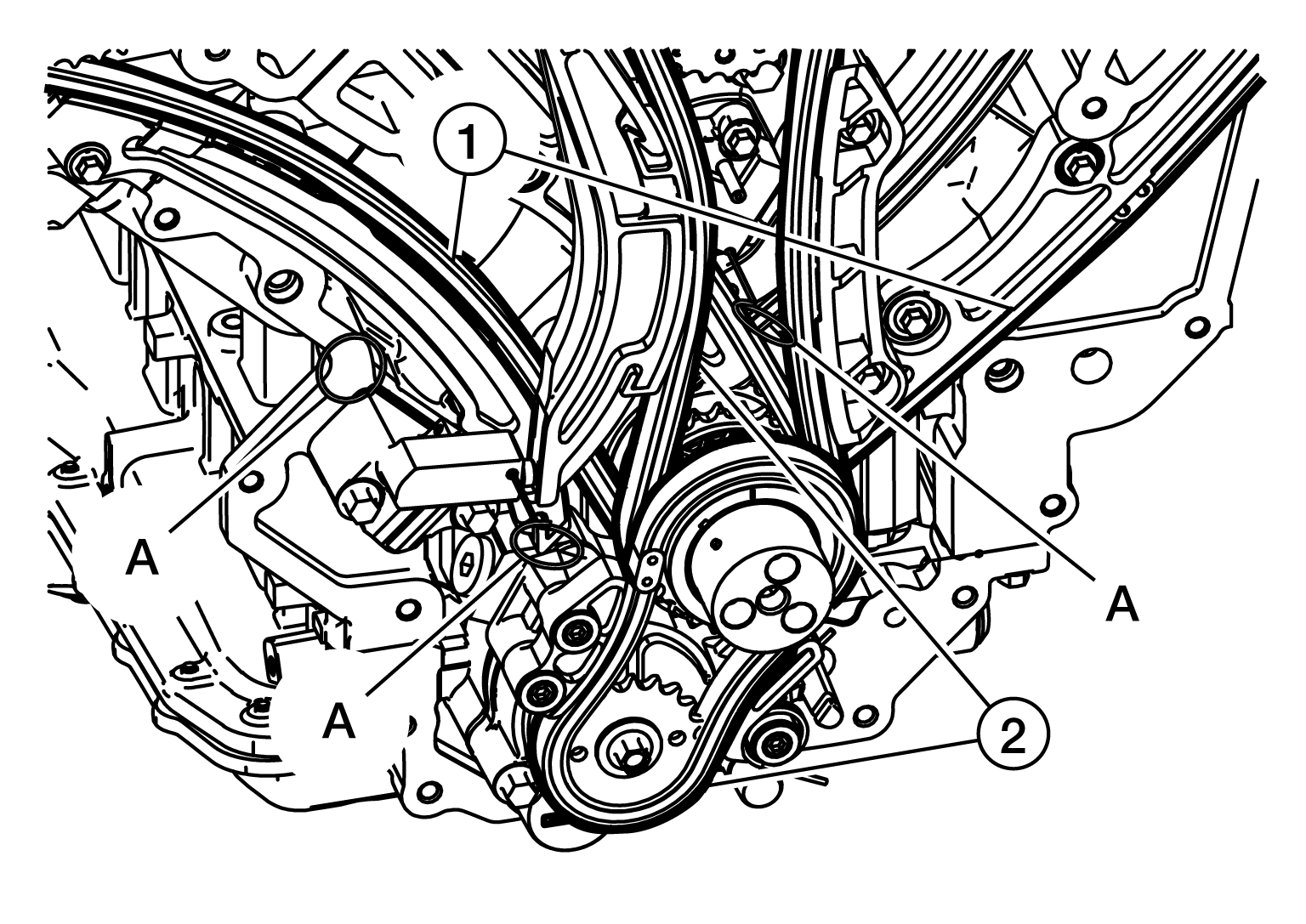

    GNSALBIA2385Z-385Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION:
    • To avoid possible engine performance issues, release chain tension by releasing and tightening the right and left camshaft sprockets.
    • To avoid possible camshaft damage, ensure the camshaft and camshaft sprocket are properly seated before tightening the camshaft sprocket bolt.

    Tool

    :-- - (J-54409)

    NOTE: Check for slack in the camshaft timing chains [bank 1 (1)] and [bank 2 (1)], fuel pump timing and oil pump drive chains (2).
  24. Tighten the camshaft sprocket bolts [bank 1 (1)] and [bank 2 (2)] while holding the camshaft sprocket (1) with a suitable tool (A).

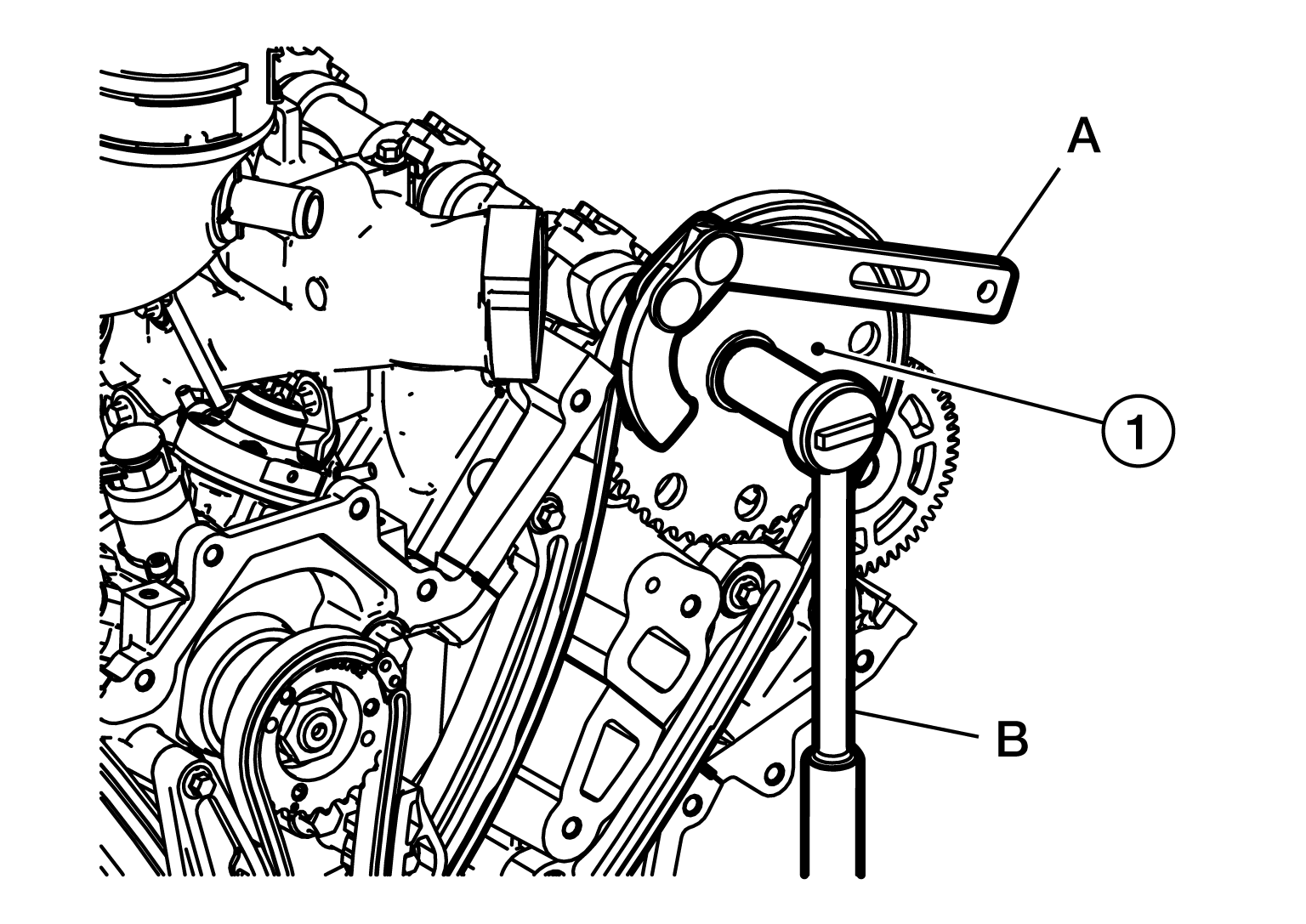

    GNSALBIA2849Z-849Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: To avoid possible chain damage, loosening and tighten camshaft, oil pump and fuel pump sprocket bolts with the aid of the spanner wrench.
    • It is very important to avoid loading the chain while loosening and tightening the bolts on the camshaft, fuel and oil pump sprockets. Always hold the sprockets with a suitable tool (A) when loosening or tightening the bolts with a suitable tool (B).
    NOTE: Bank 1 shown, Bank 2 similar.

    Camshaft sprocket bolt

    : 120 N.m (12 kg-m, 89 ft-lb)

  25. Remove the bolt (B) and remove Tool (A) from the camshafts (1).
    GNSALBIA2354Z-354Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE:
    • Bank 1 shown, Bank 2 similar.
    • After removing Tool, rotate the engine over two full revolutions using Tool and observe to make sure the timing chains operate smoothly.

    Tool

    :-- - (J-54409)

    :-- - (J-54401)

  26. Installation of the remaining components is in the reverse order of removal.
    NOTE:
    • If the drive chain was removed and reinstalled or removed and replaced, in CONSULT click the Timing button on the Fuel or Timing System Table Reset in Work Support. Refer to CONSULT Function .
    • Operate the engine and check for leaks.
