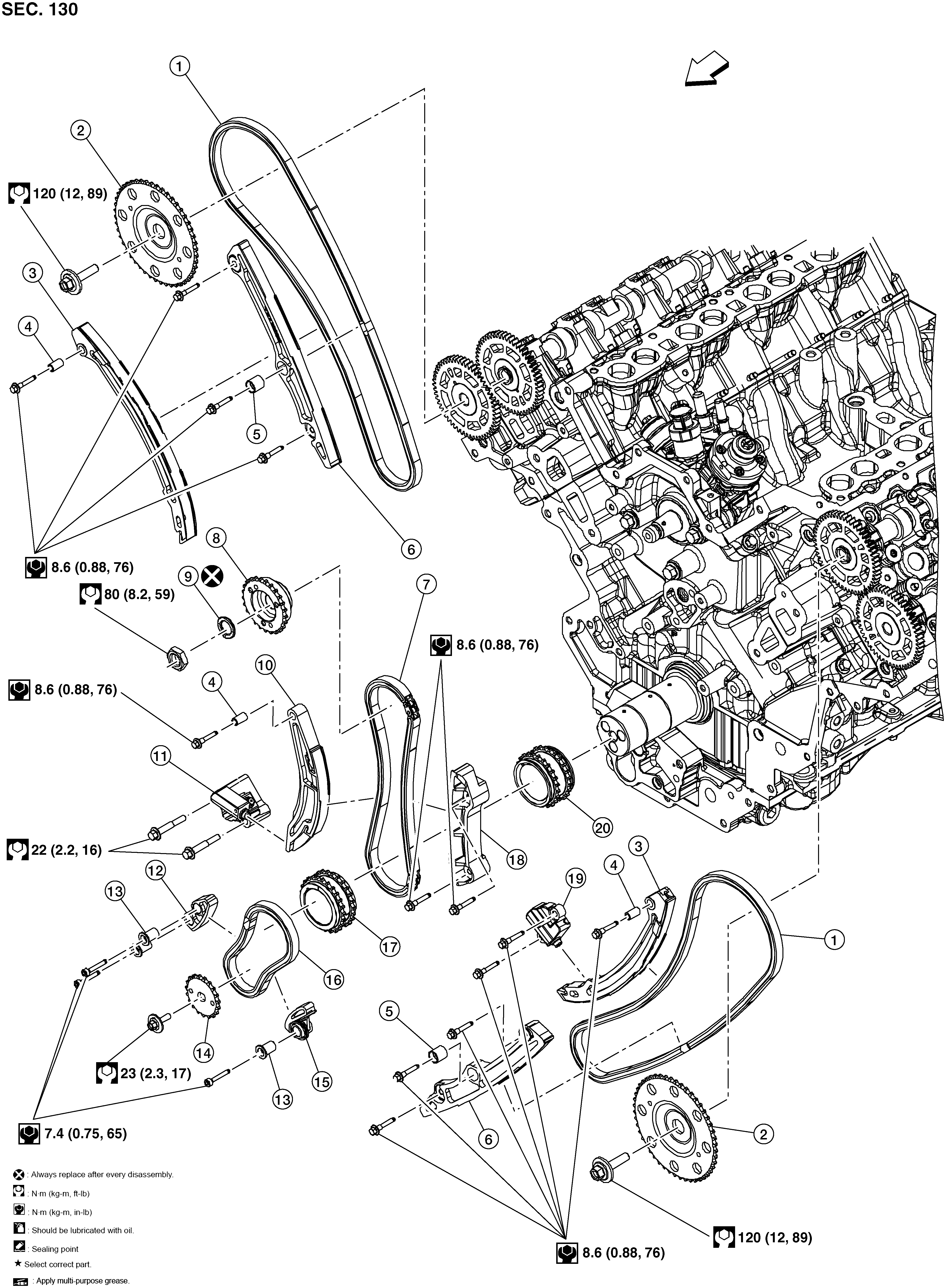

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Camshaft timing chain |
2. |
Camshaft sprocket |
3. |
Slack guide |
|
4. |
Bushing |
5. |
Bushing |
6. |
Camshaft tension guide |
|
7. |
Fuel pump timing chain |
8. |
Fuel pump sprocket |
9. |
Washer |
|
10. |
Fuel pump tensioner guide |
11. |
Dual timing chain tensioner (bank 1) |
12. |
Oil pump tensioner guide |
|
13. |
Bushing |
14. |
Oil pump sprocket |
15. |
Oil Pump Chain Tensioner / Guide |
|
16. |
Oil pump drive chain |
17. |
Crankshaft sprocket (oil/fuel pump) |
18. |
Fuel pump slack guide |
|
19. |
Camshaft chain tensioner (bank 2) |
20. |
Crankshaft sprocket (camshaft) |
|
Front |
