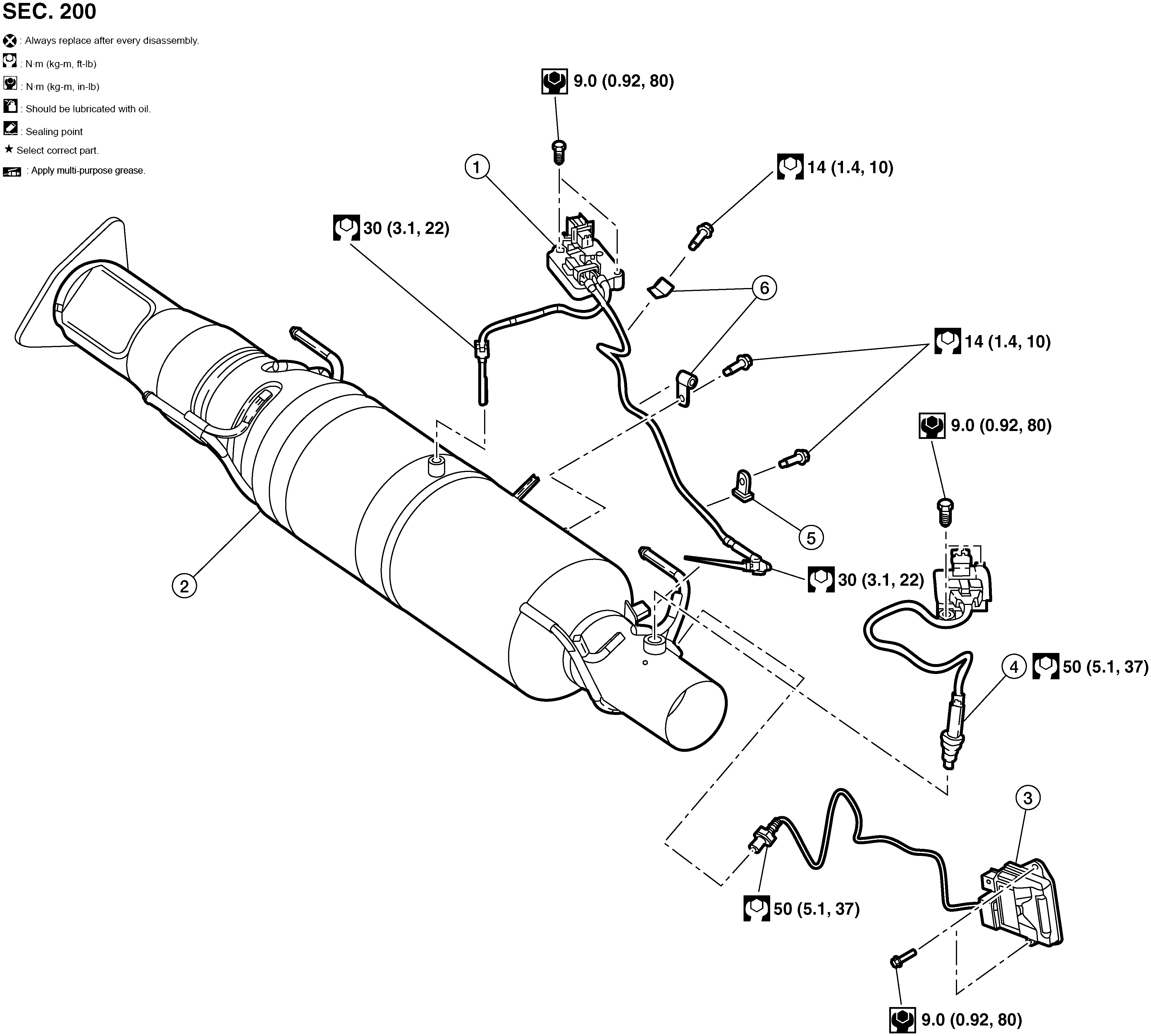

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
SCR temperature sensor module
|
2.
|
Decomposition tube and SCR catalyst assembly
|
3.
|
Particulate matter sensor
|
|
4.
|
Outlet NOx sensor
|
5.
|
Clamp
|
6.
|
Clamp
|
