Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

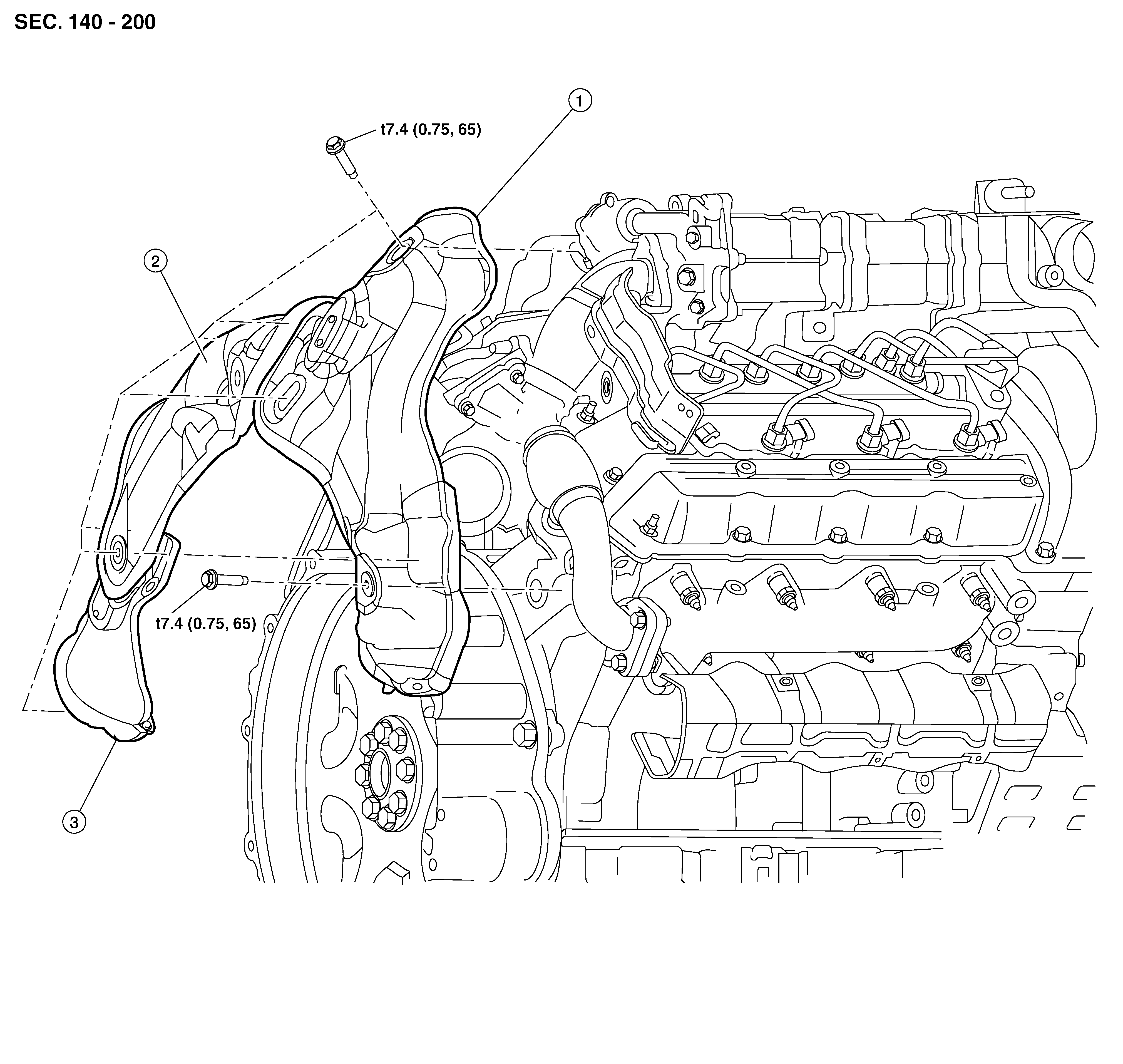

GNSALBIA1389Z-389Courtesy of NISSAN NORTH AMERICA, INC.

1.

Heat shield (RH)

2.

Center heat shield

3.

Heat shield (LH)
