Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center heat shield. Refer to Removal and Installation .
  2. Remove the V-band clamp (3) connecting the exhaust downpipe (1) to the turbocharger turbine outlet (2).
    GNSALBIA1381Z-381Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the nuts (A) of the flange connecting the exhaust downpipe (1) to the DOC and DPF assembly (2) inlet.
    GNSALBIA1380Z-380Courtesy of NISSAN NORTH AMERICA, INC.
  4. Remove the fender protector. Refer to Removal and Installation - Front Fender Protector .

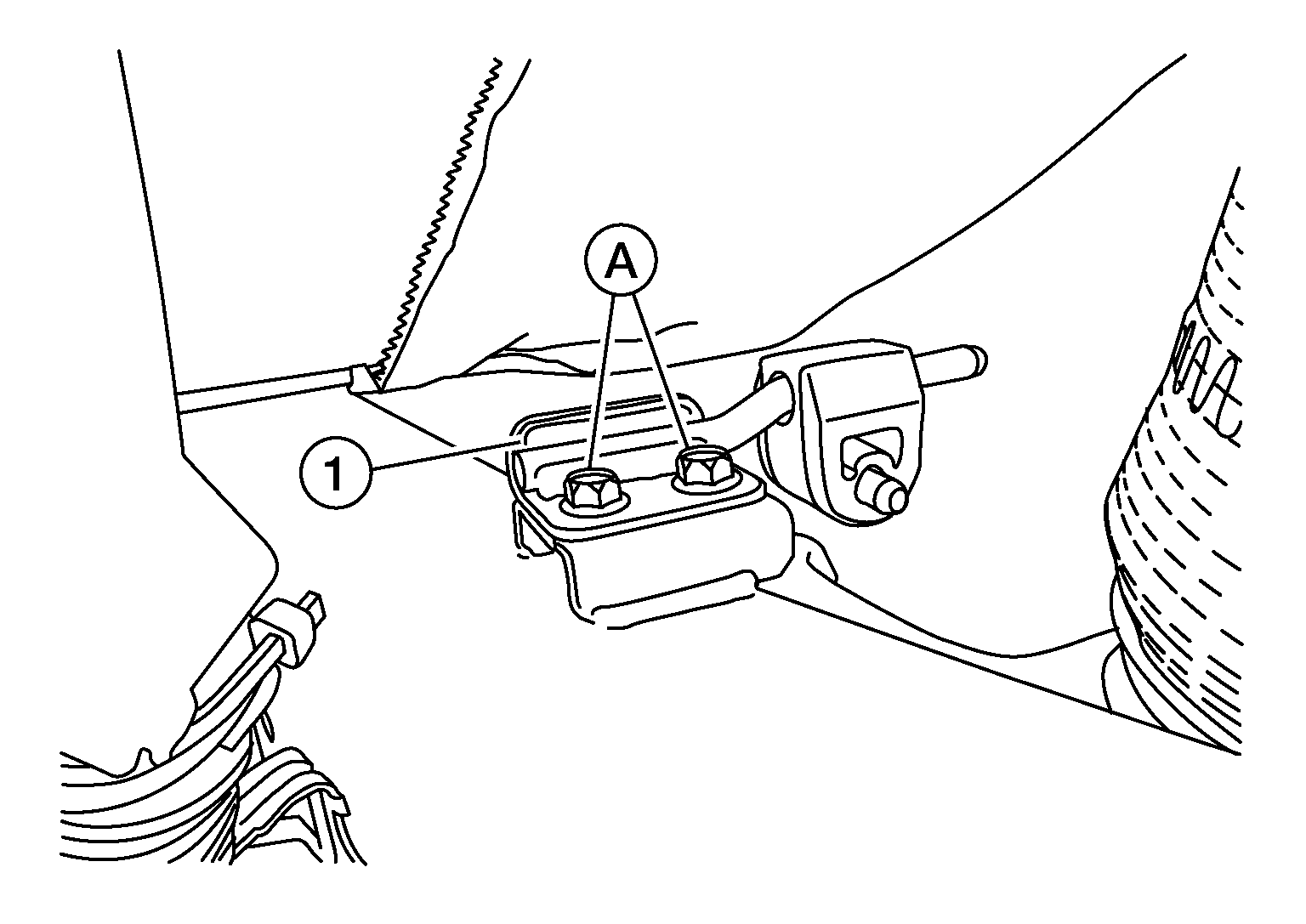

  5. Remove the bolts (A) from the exhaust downpipe hanger (1).
    GNSALBIA1610Z-610Courtesy of NISSAN NORTH AMERICA, INC.
  6. Remove exhaust downpipe and exhaust downpipe hanger as an assembly.
  7. Remove exhaust downpipe hanger and insulator from exhaust downpipe (if necessary).
