Removal and Installation: Installation

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not reuse gaskets.

Install the exhaust downpipe and exhaust downpipe hanger as an assembly.
Install the bolts (A) for the exhaust downpipe hanger (1).

Courtesy of NISSAN NORTH AMERICA, INC.

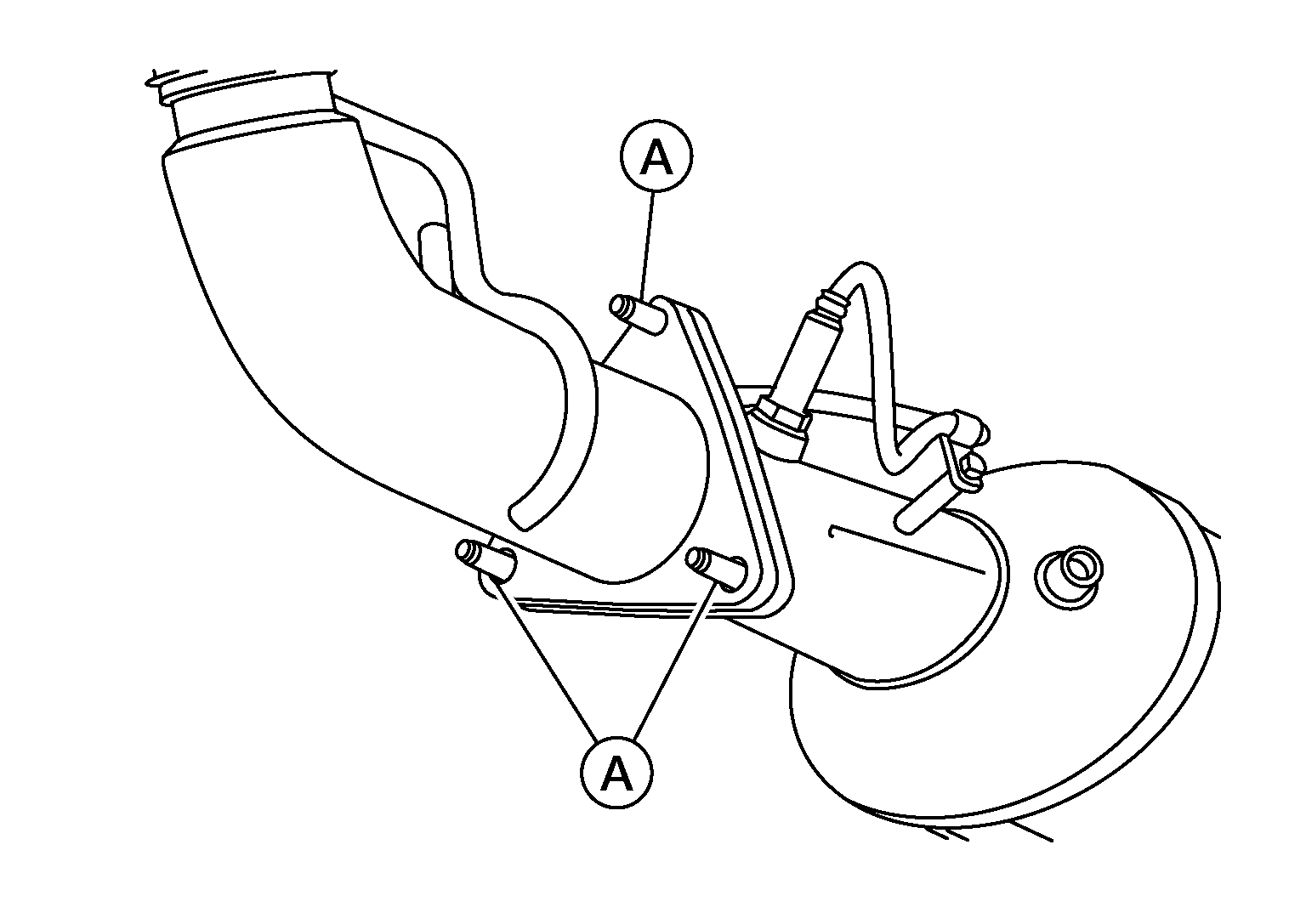

Apply a coating of anti-seize compound to the three studs (A) and loosely connect the three bolt flange to the DOC inlet.

Courtesy of NISSAN NORTH AMERICA, INC.
Connect the exhaust downpipe (1) to the turbocharger turbine outlet (2) with the V-band clamp (3). Refer to Exploded View .

Courtesy of NISSAN NORTH AMERICA, INC.
Tighten the nuts (A) connecting the exhaust downpipe (1) to the DOC and DPF assembly (2). Refer to Exploded View .

Courtesy of NISSAN NORTH AMERICA, INC.
Operate the engine and check for leaks.
