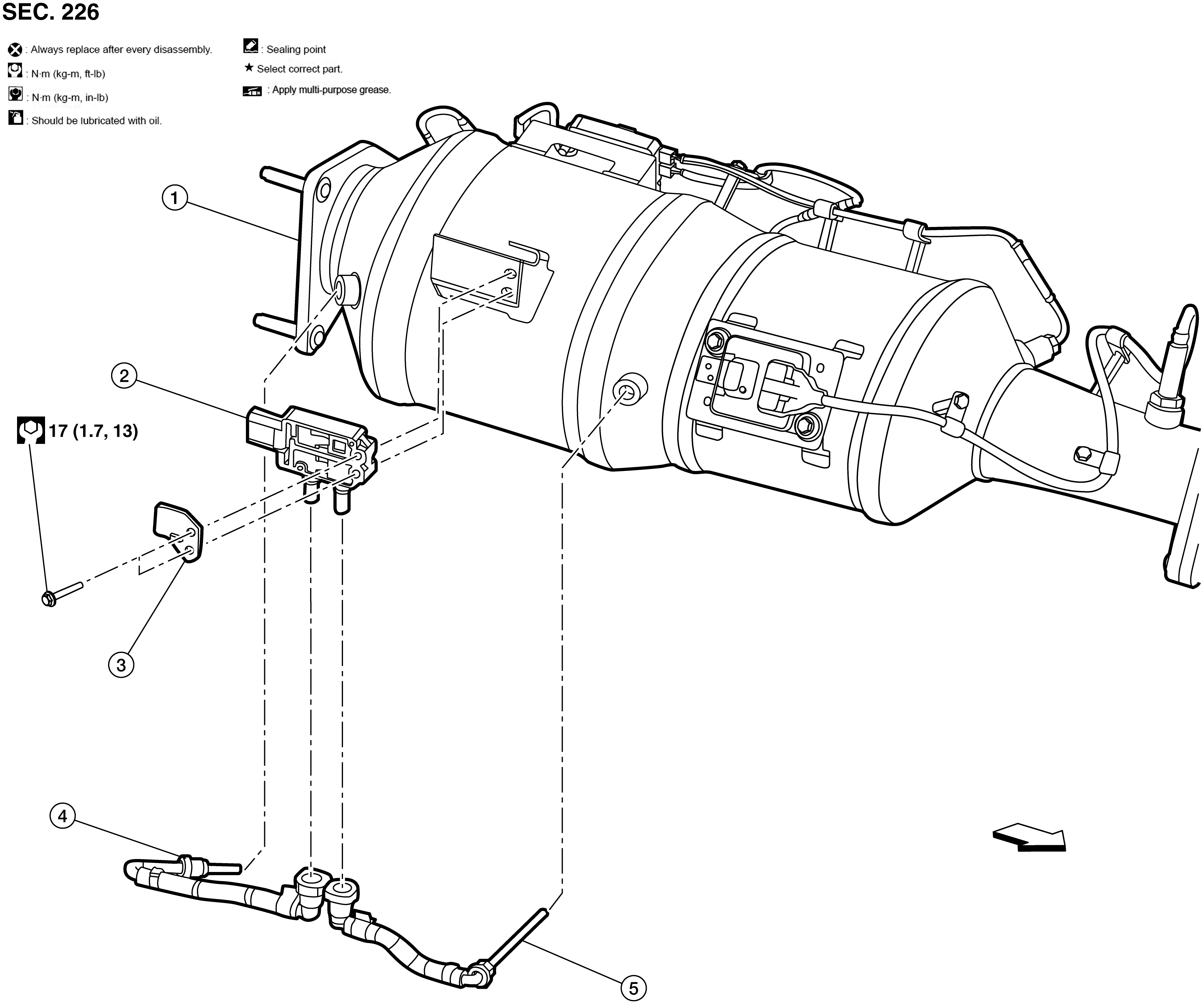

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
DOC and DPF assembly
|
2.
|
DPF differential pressure sensor
|
3.
|
Cover
|
|
4.
|
DPF differential pressure sensor downstream tube
|
5.
|
DPF differential pressure sensor upstream tube
|
|
Front
|
