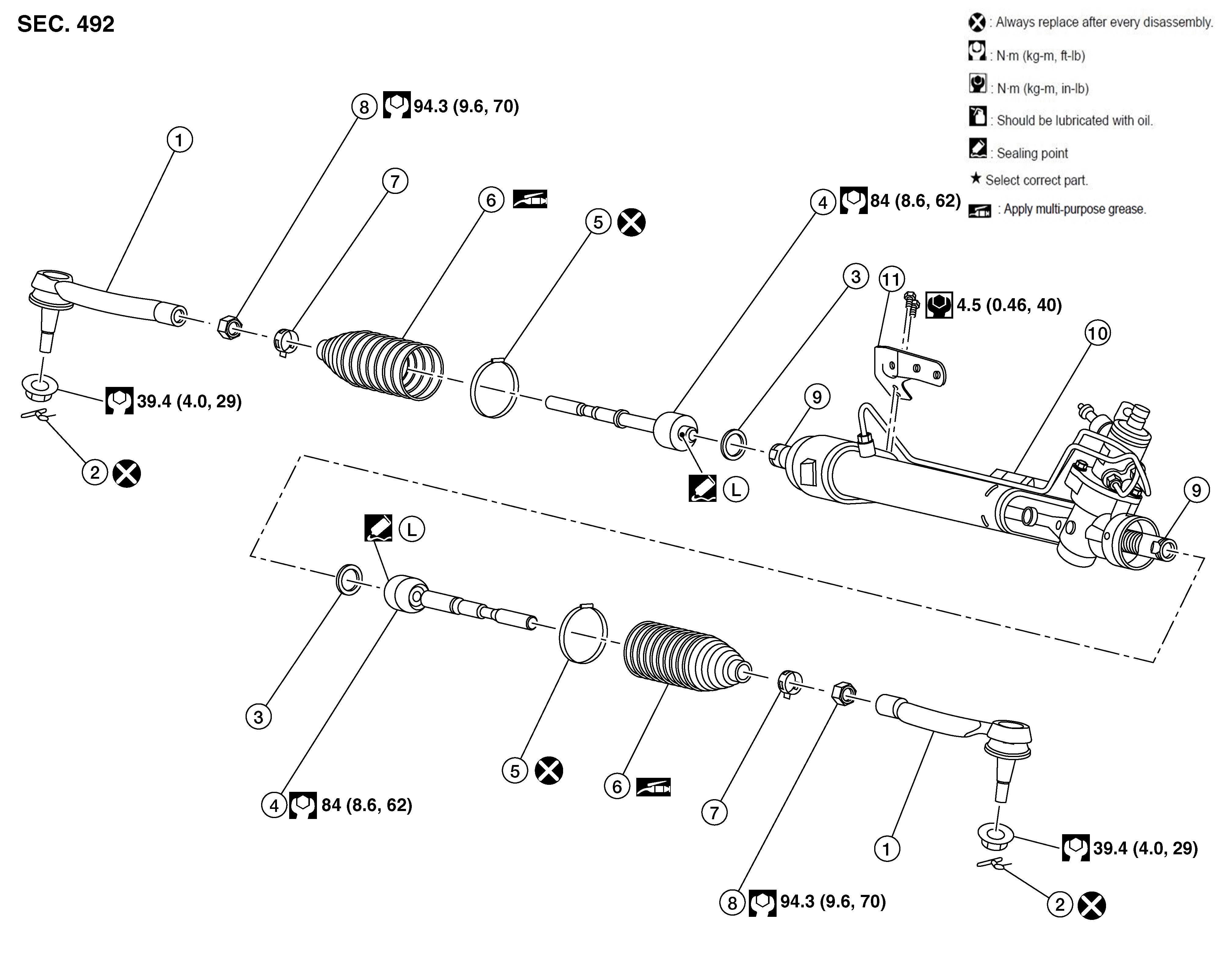

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Outer socket
|
2.
|
Cotter pin
|
3.
|
Spacer
|
|
4.
|
Inner socket
|
5.
|
Large boot clamp
|
6.
|
Boot
|
|
7.
|
Small boot clamp
|
8.
|
Inner socket lock nut
|
9.
|
Rack bar (not serviceable)
|
|
10.
|
Steering gear
|
11.
|
Bracket
|
