Rack Stroke

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Unit: mm (in)

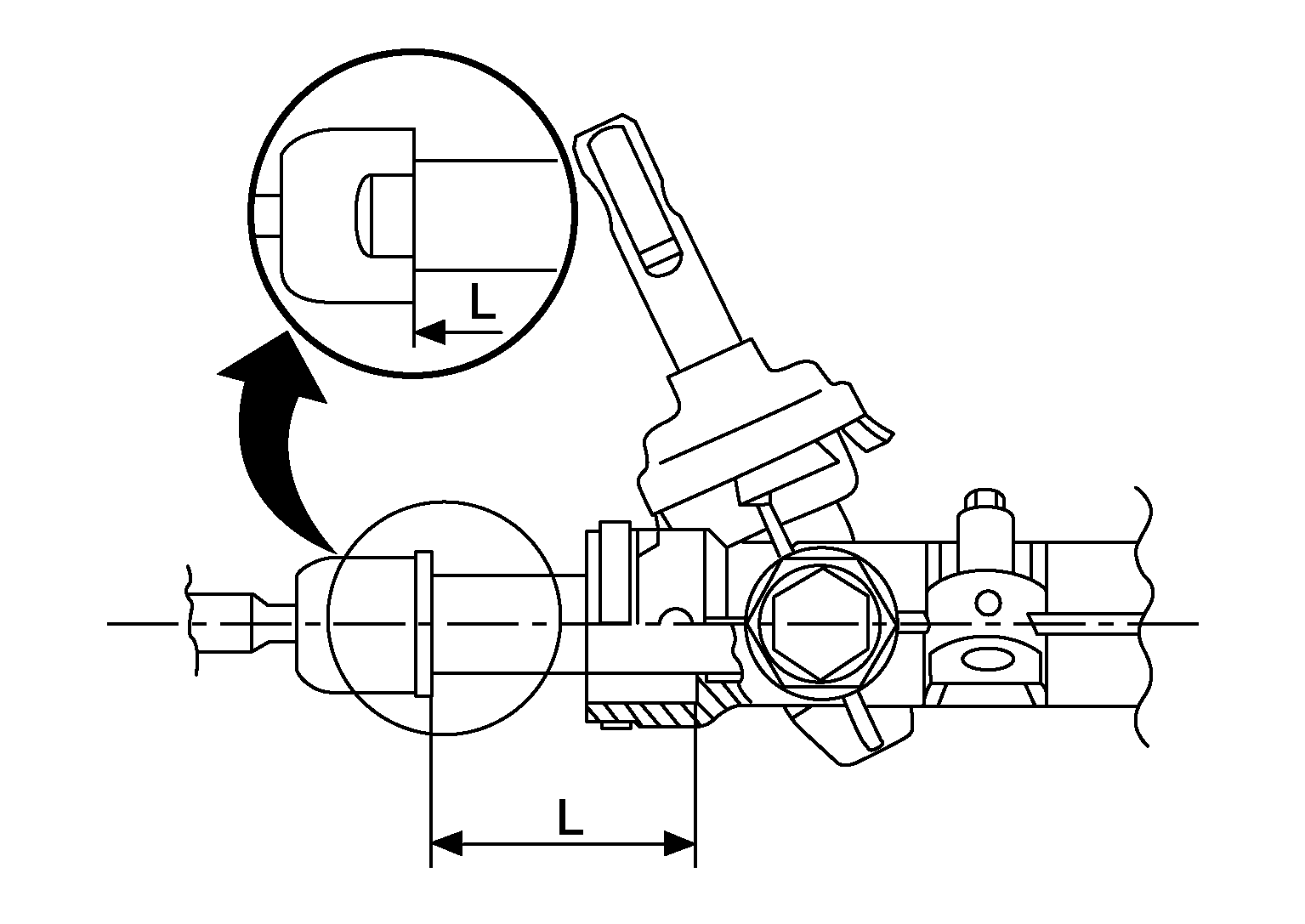

GNSAWGIA0380Z-380Courtesy of NISSAN NORTH AMERICA, INC.
Rack Stroke in neutral Position (L) 70 (2.76)
