Removal and Installation: Removal
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
- Drain power steering fluid. Refer to Draining and Refilling .

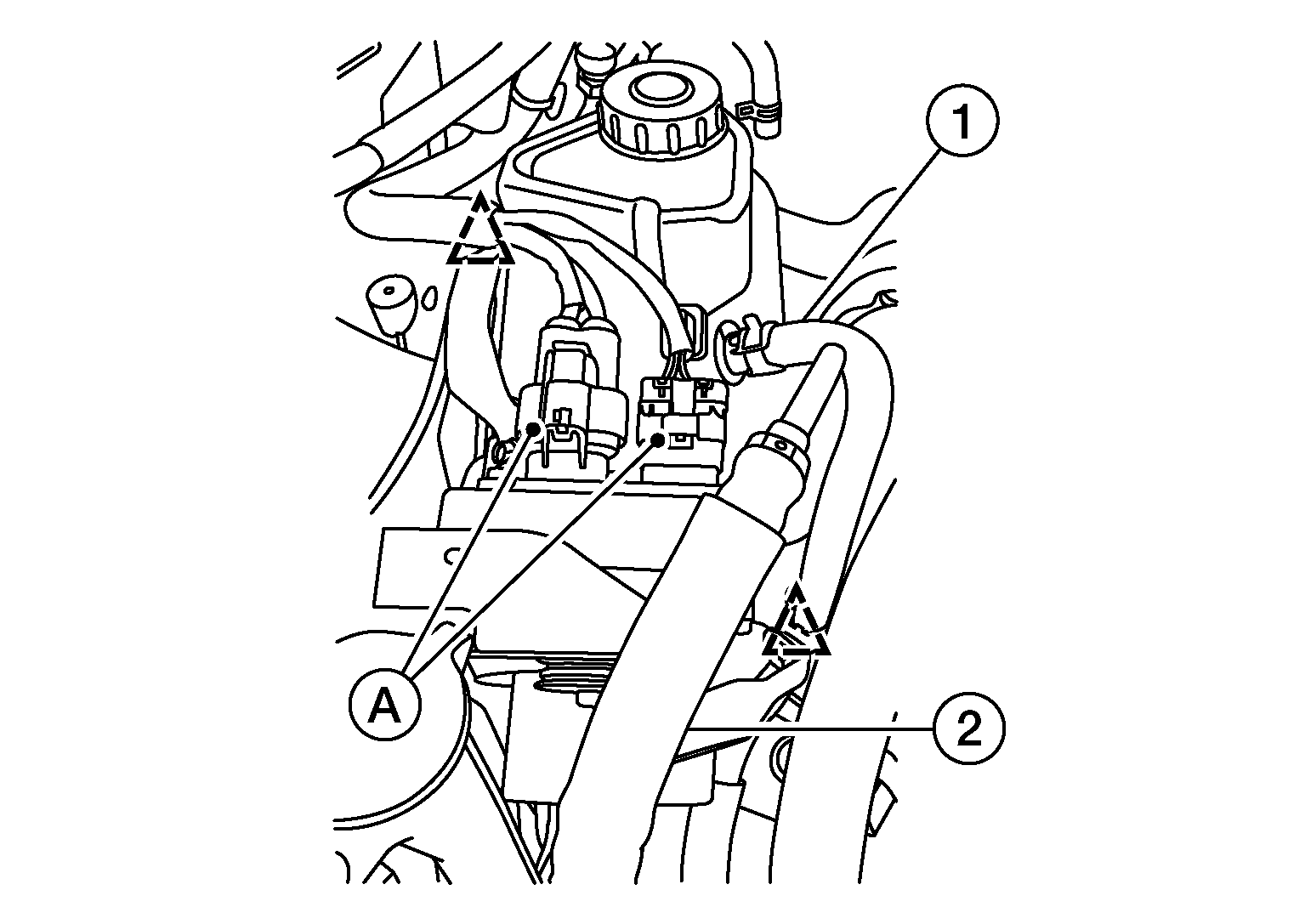

- Disconnect the harness connectors (A) from the power steering oil pump.
- Remove the harness retainer from the power steering oil pump bracket.
- Remove the line retaining bolt from bracket.
- Separate the-high pressure piping (2) and low-pressure piping (1) from the power steering oil pump.
- Separate the clips from the power steering oil pump.
Clip
- Remove nut and bolts and remove the power steering oil pump.
