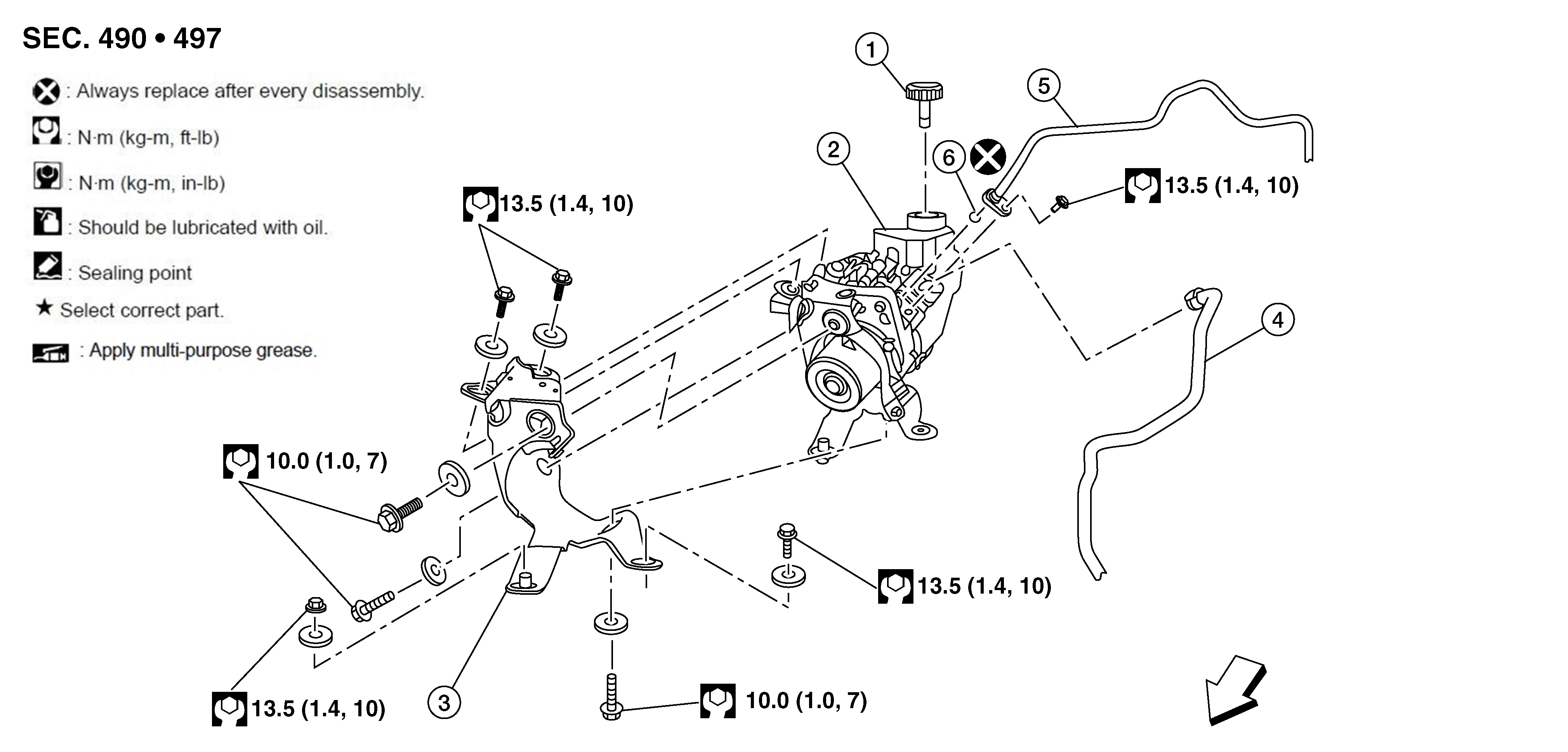

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Power steering reservoir cap
|
2.
|
Power steering oil pump
|
3.
|
Power steering oil pump bracket
|
|
4.
|
Low-pressure piping
|
5.
|
High-pressure piping
|
6.
|
O-ring
|
|
|
Front
|
