Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument lower panel LH. Refer to Removal and Installation .

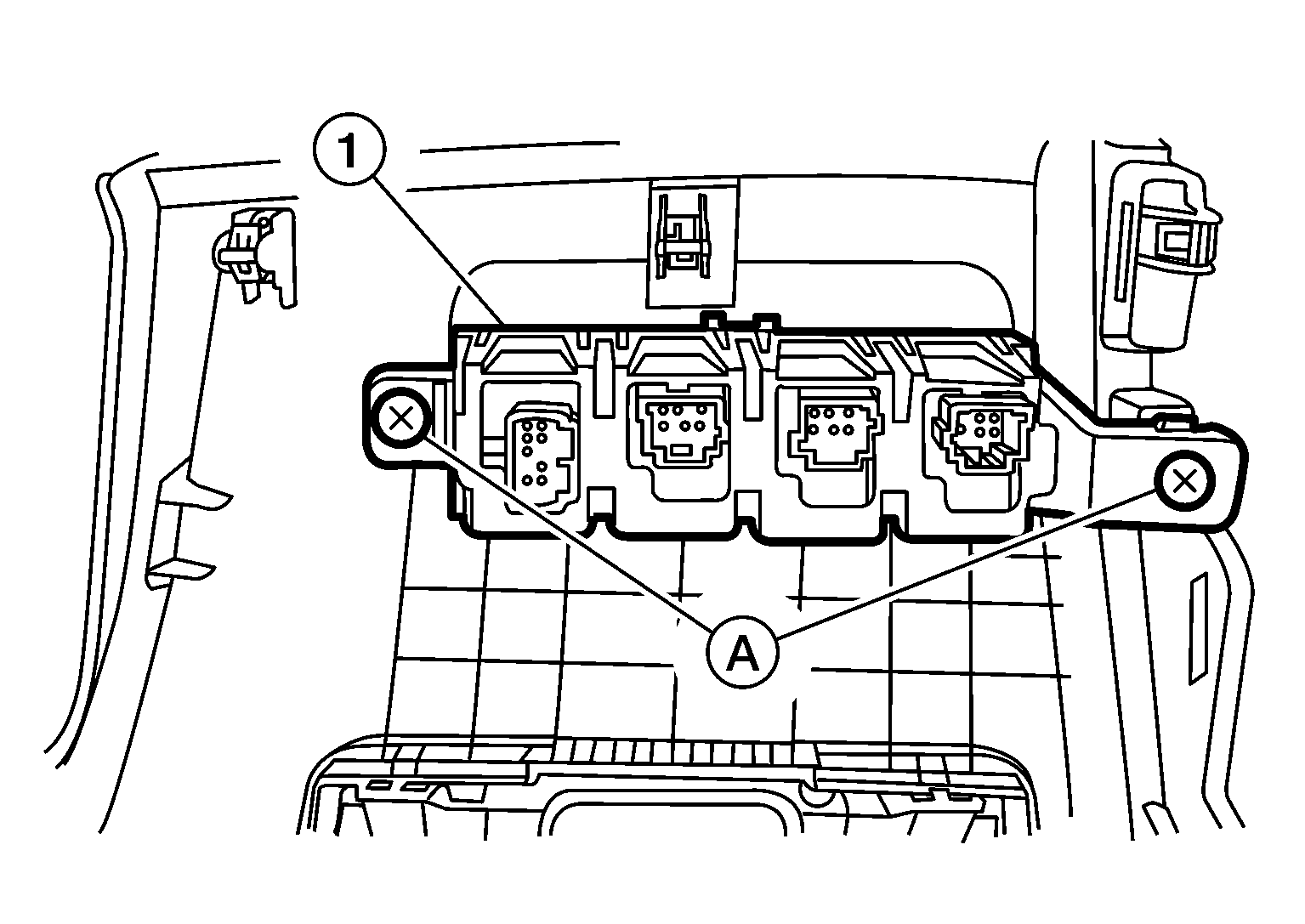

  2. Remove screws (A) and switch carrier (1) from instrument lower panel LH.
    GNSALJIA1726Z-726Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release pawls using suitable tool and remove heated steering wheel switch from switch carrier.
    GNSALJIA1522Z-522Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
