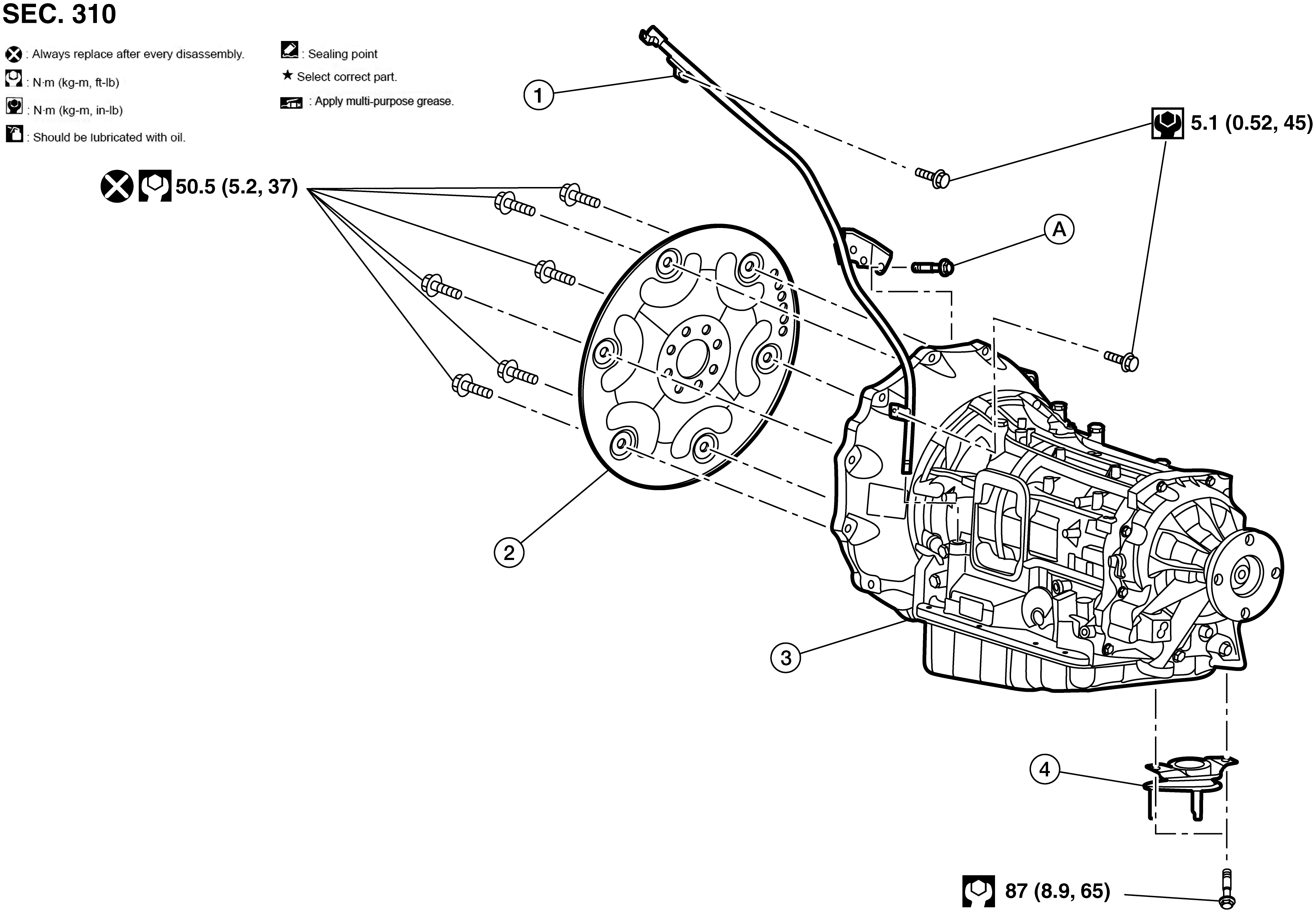

Exploded View
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Oil charging pipe |
2. |
Drive plate |
3. |
A/T assembly |
|
4. |
Engine insulator bracket (rear) |
A. |
Refer to INSTALLATION . |
