Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

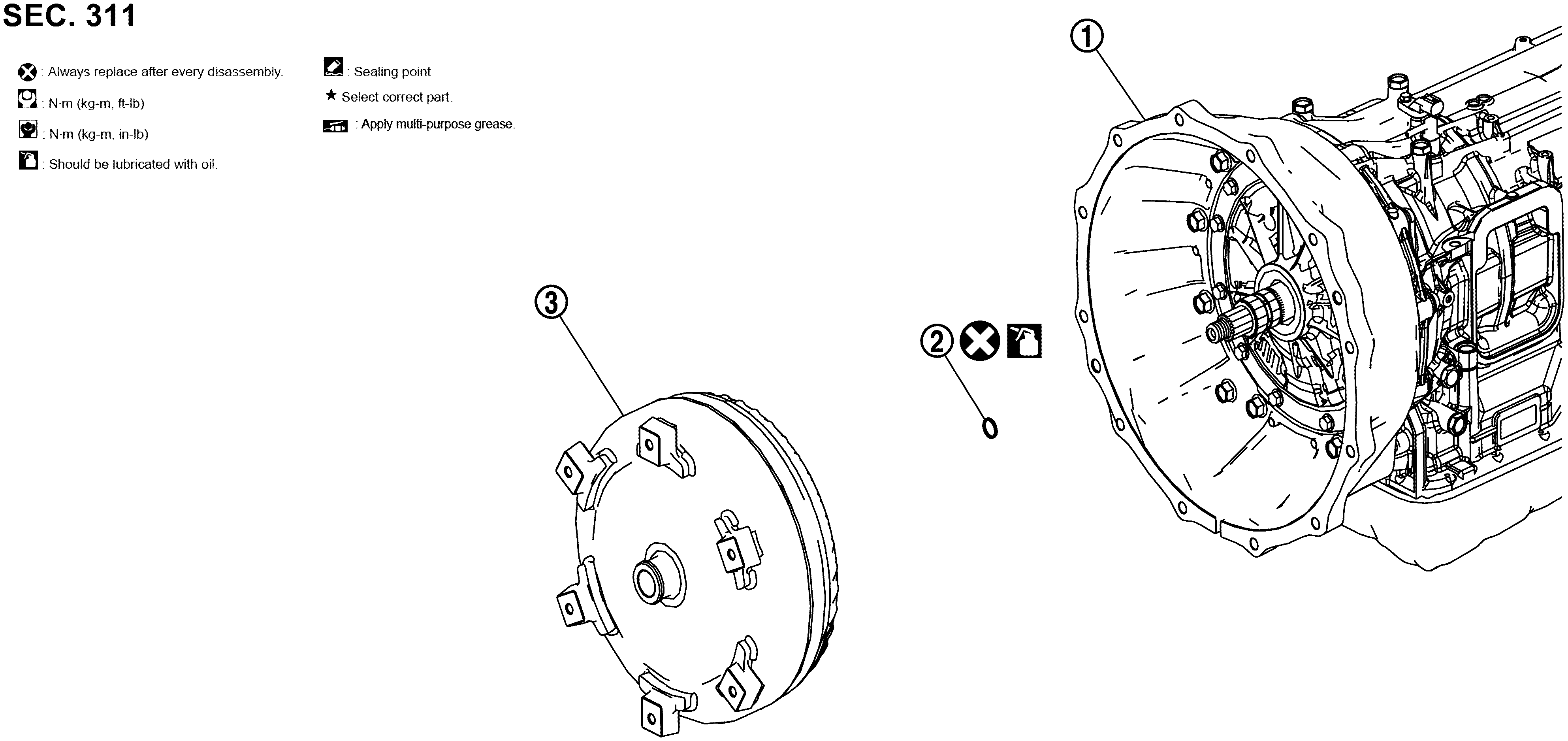

GNSJSDIA9077Z-077Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Transmission assembly

SYMBOL

Input shaft oil seal

SYMBOL

Torque converter

SYMBOL

: Always replace after every disassembly.

SYMBOL

: A/T fluid
