Removal and Installation: Remove

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Shift the A/T shift selector to P position.

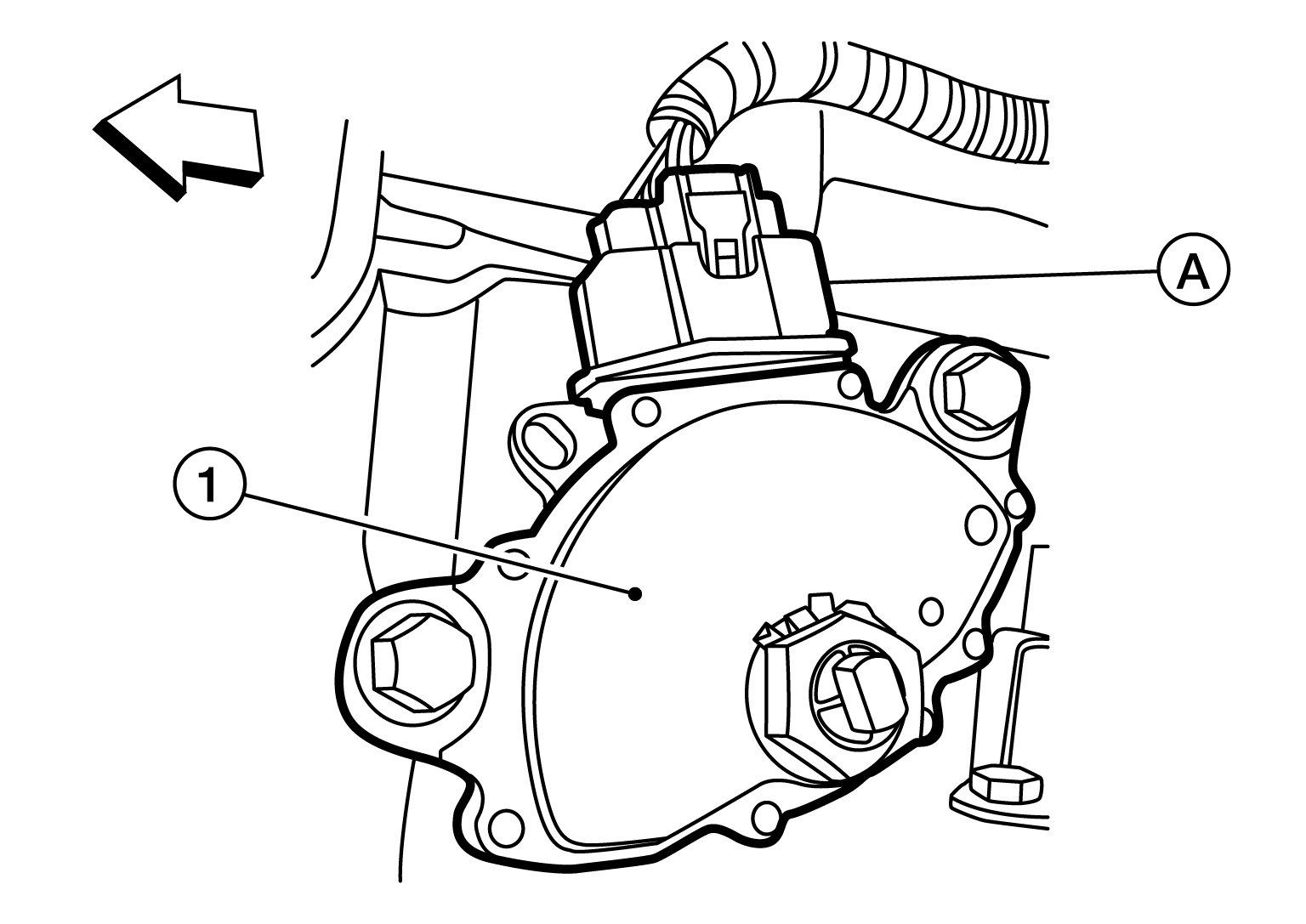

  2. Disconnect the harness connector (A) from the transmission range switch (1).
    GNSALDIA0798Z-798Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

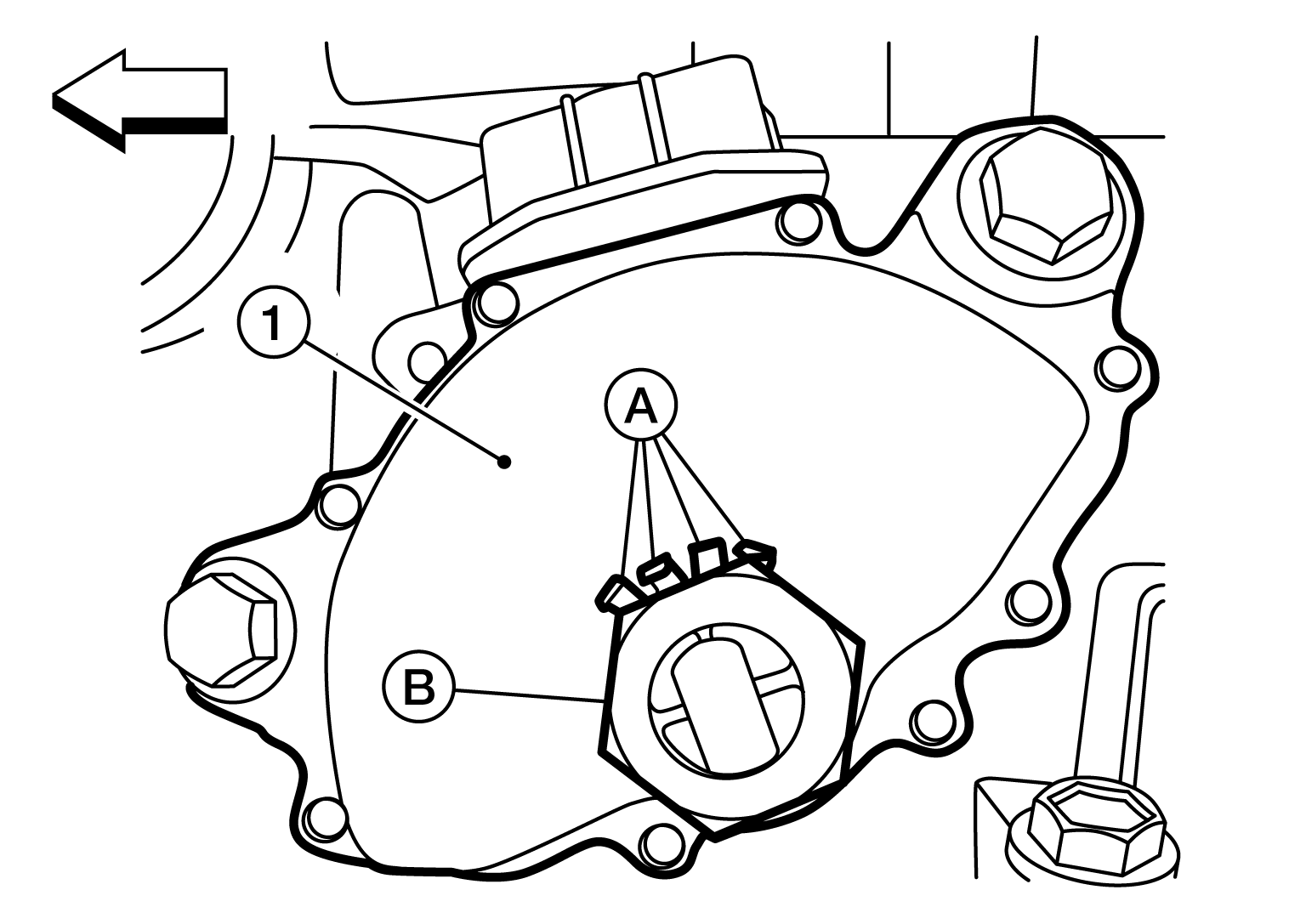

  3. Release tabs on lock washer (A) remove transmission range switch nut (B) and lock washer (A) and remove transmission range switch (1).
    GNSALDIA0797Z-797Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

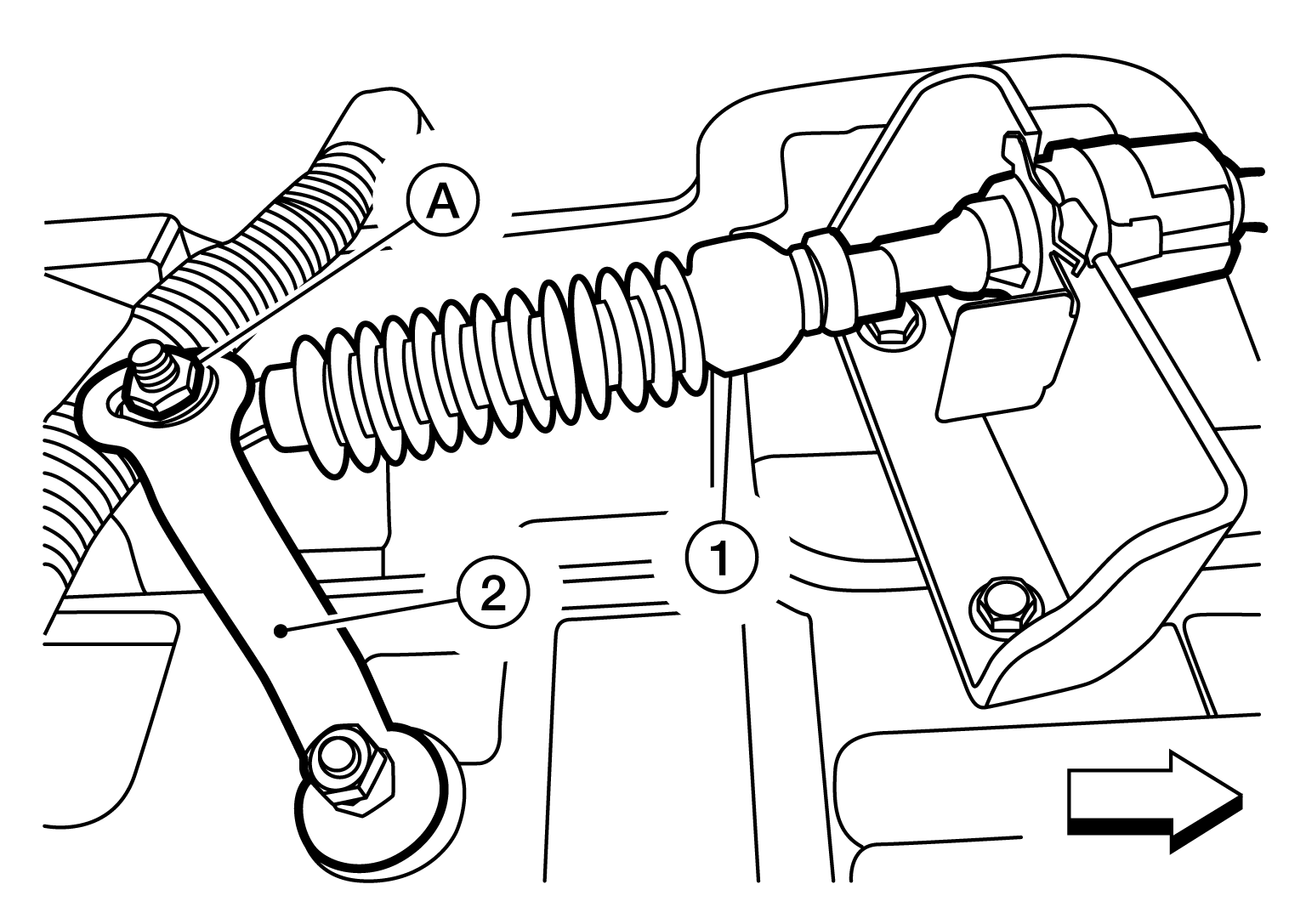

  4. Remove the control cable nut (A) and remove the control cable (1) from the manual lever (2).
    GNSALDIA0795Z-795Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Front

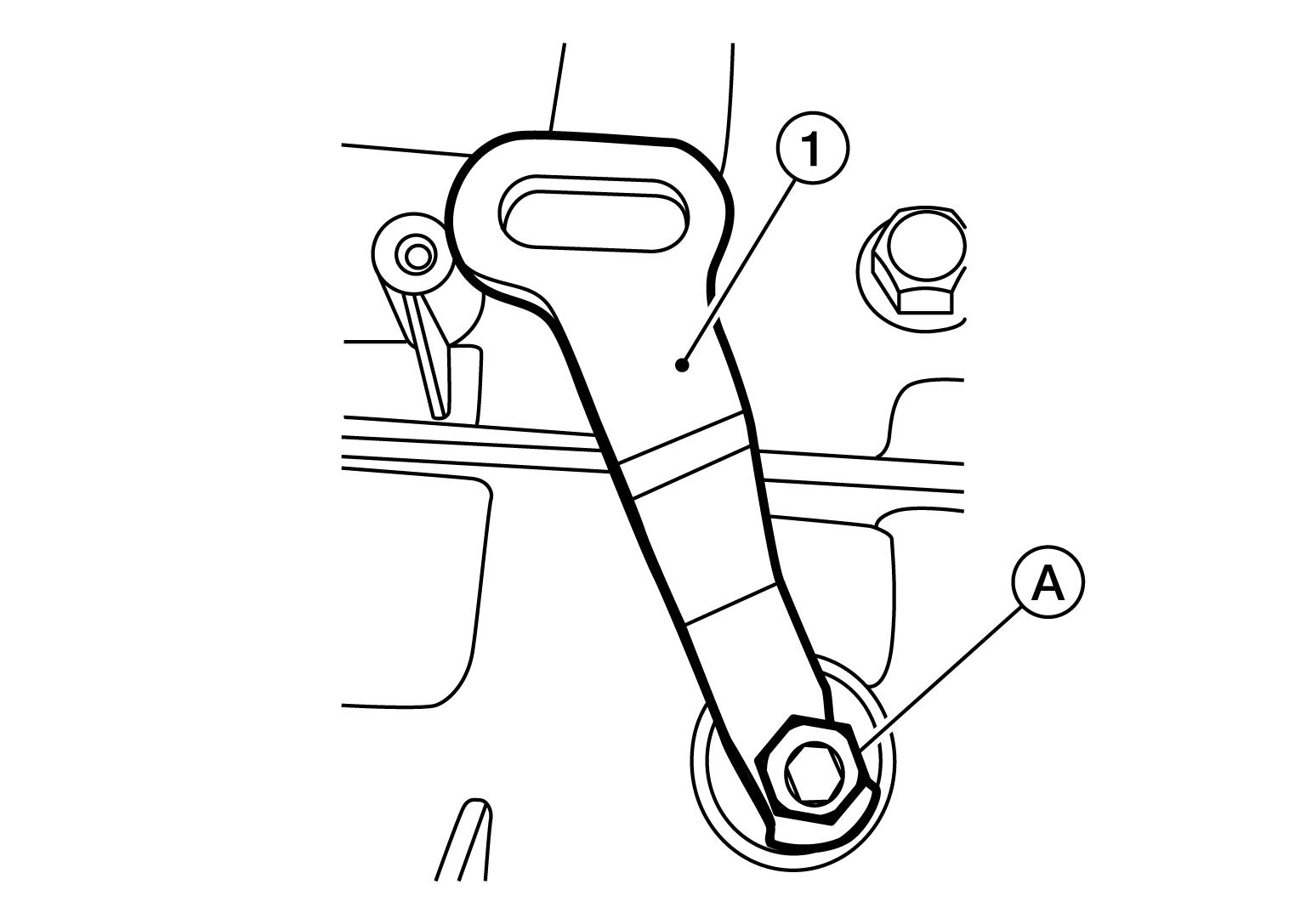

  5. Remove manual lever nut (A) and remove manual lever (1).
    GNSALDIA0796Z-796Courtesy of NISSAN NORTH AMERICA, INC.
