Exploded View

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.

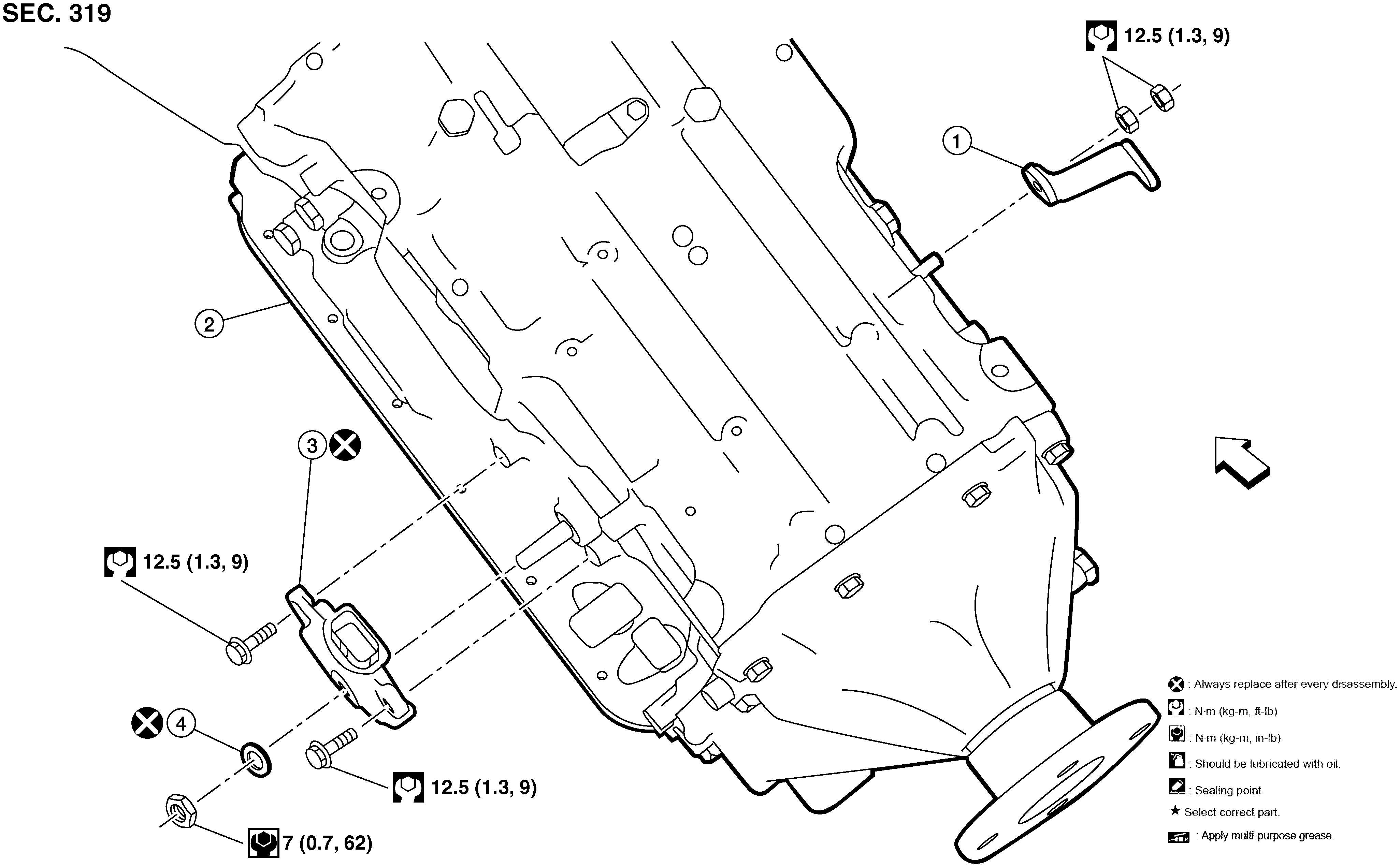

Fig 1: Transmission Range Switch With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Manual lever	2.	Transaxle assembly	3.	Transmission range switch
4.	Lock washer		Front
