Removal and Installation: Removal

WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove rear propeller shaft. Refer to Removal and Installation .

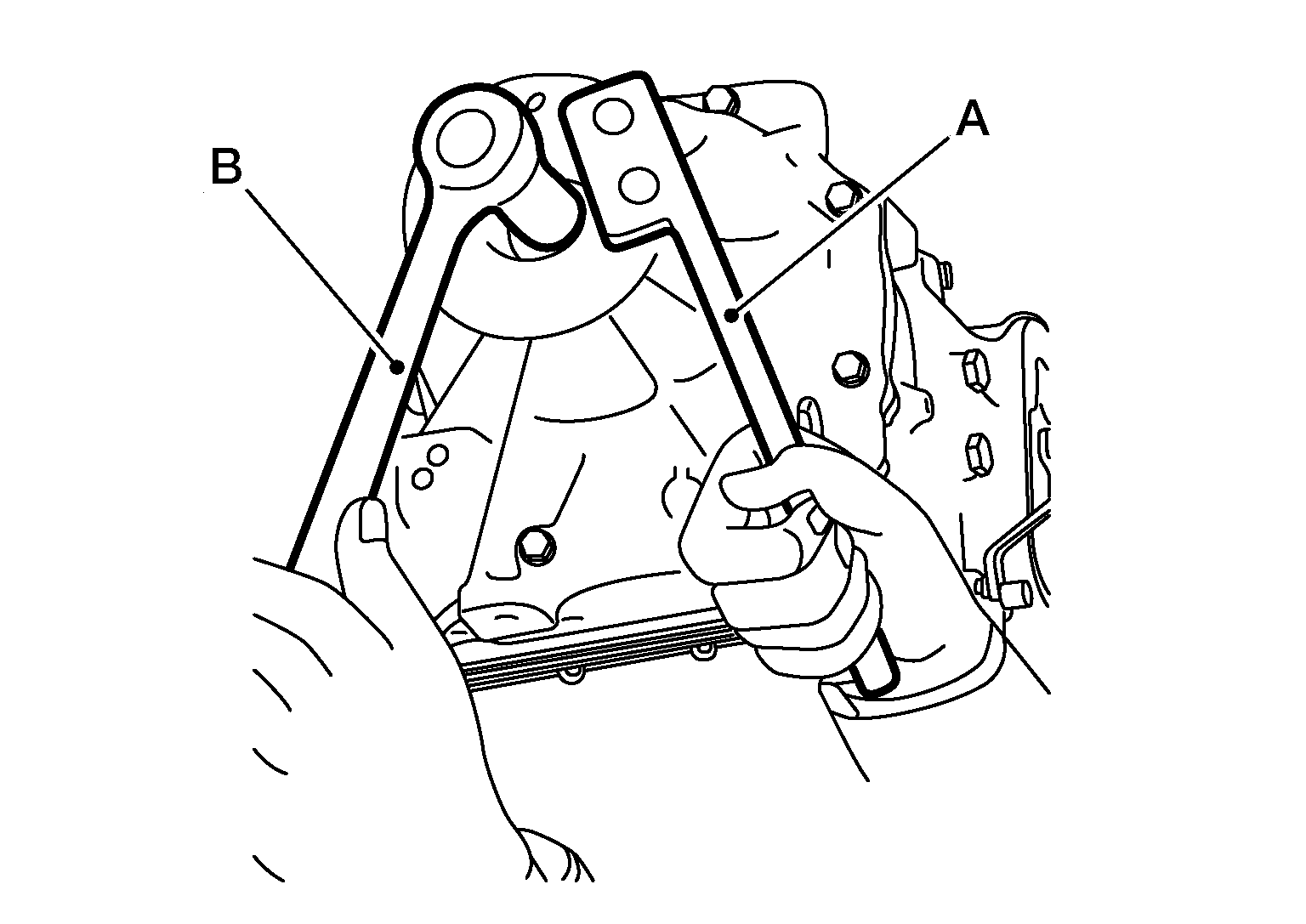

  2. Use suitable tool (A) to hold companion flange while removing companion flange lock nut with suitable tool (B).
    GNSDB116618Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse companion flange lock nut.

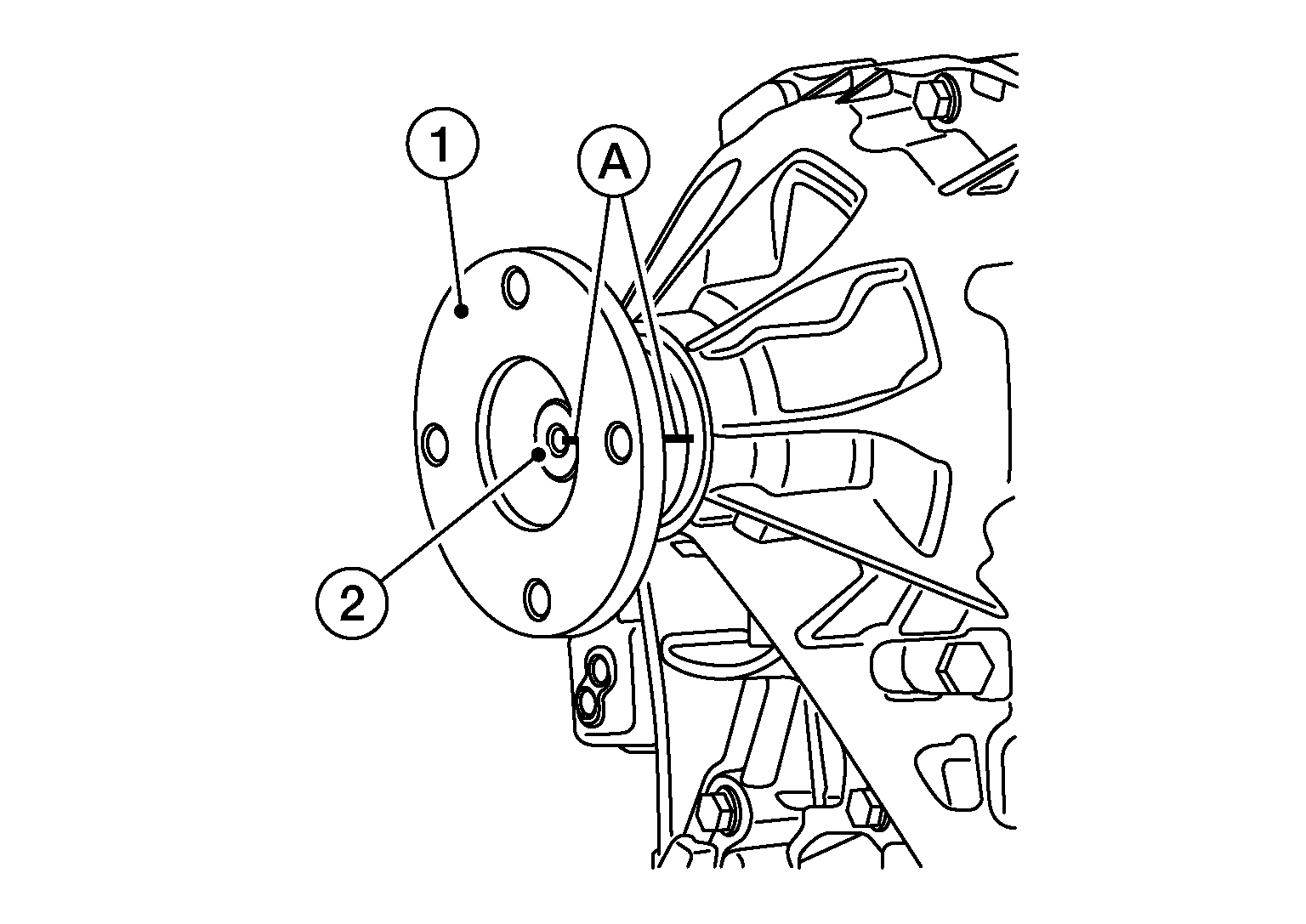

  3. Put matching marks (A) on the companion flange (1) an output shaft (2).
    GNSDB117915Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Use paint to make the matching marks. Do not damage the companion flange or output shaft.

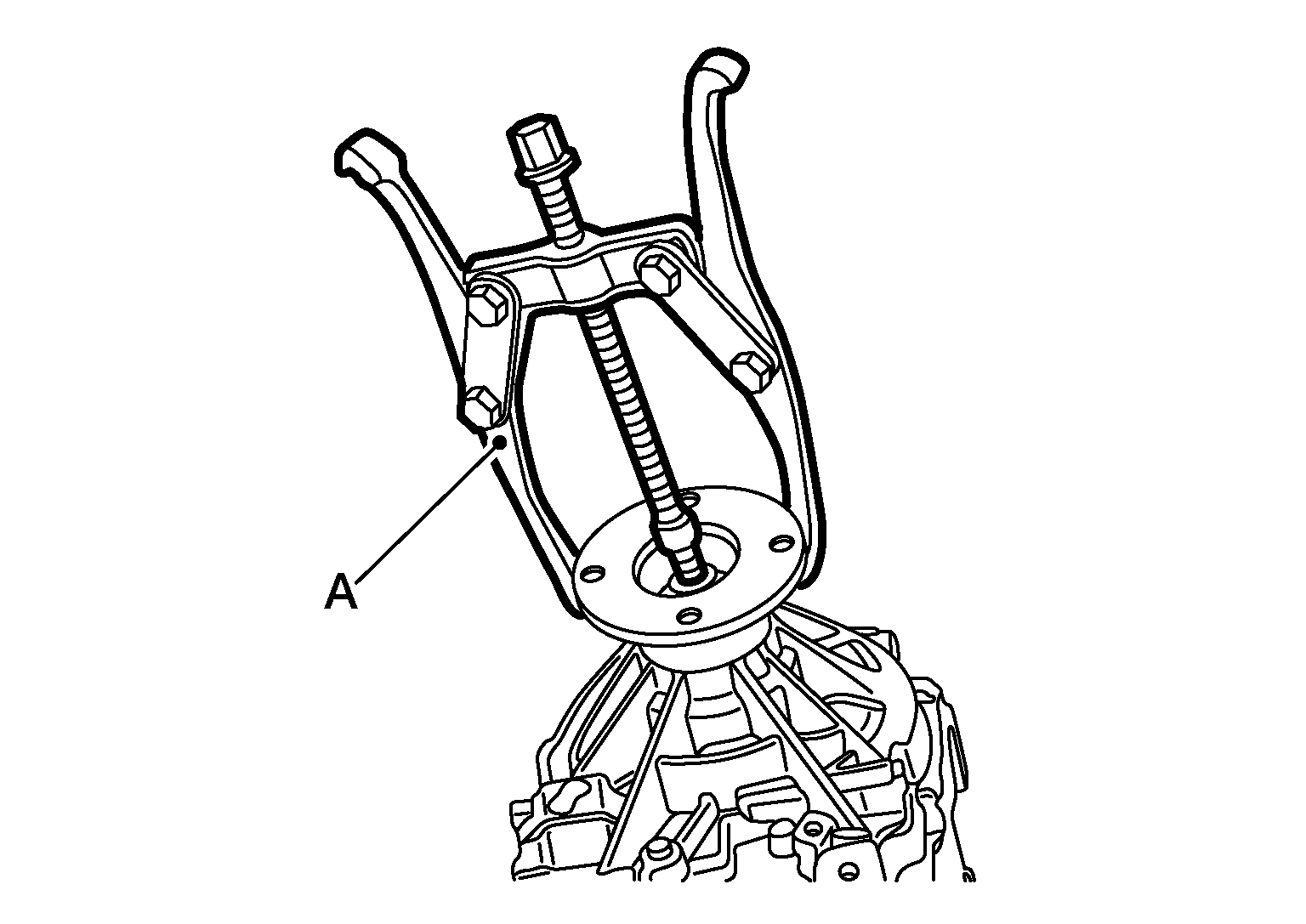

  4. Remove companion flange using suitable tool (A).
    GNSALDIA0861Z-861Courtesy of NISSAN NORTH AMERICA, INC.

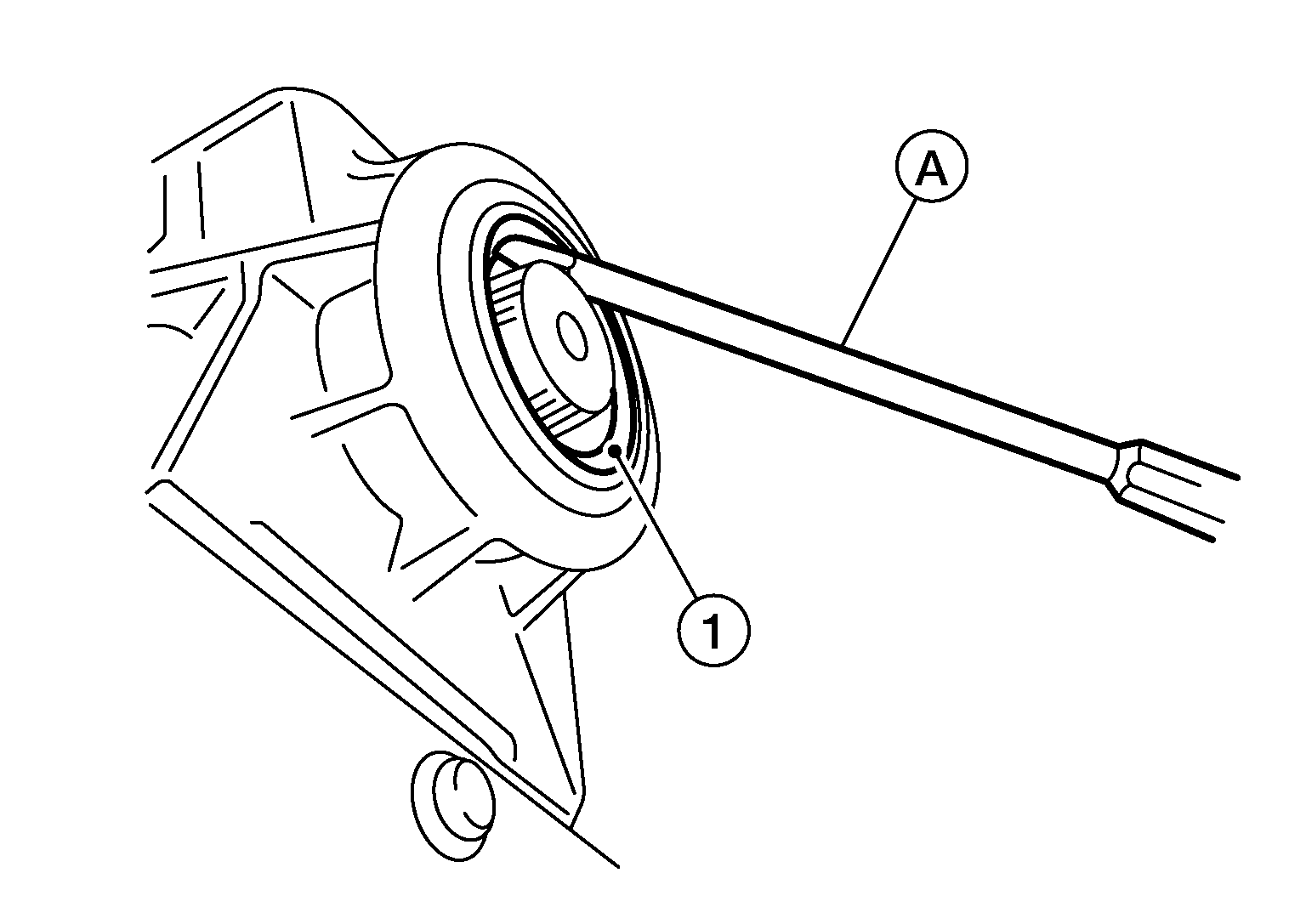

  5. Remove rear oil seal (1) using suitable tool (A).
    GNSAWDIA1330Z-330Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Do not reuse rear oil seal.
