Removal and Installation: Installation
WARNING: This page is about a different car, the 2018 Nissan Titan XD. However, it is still accessible from the selected car via links, so may be relevant.
Installation is in the reverse order of removal.

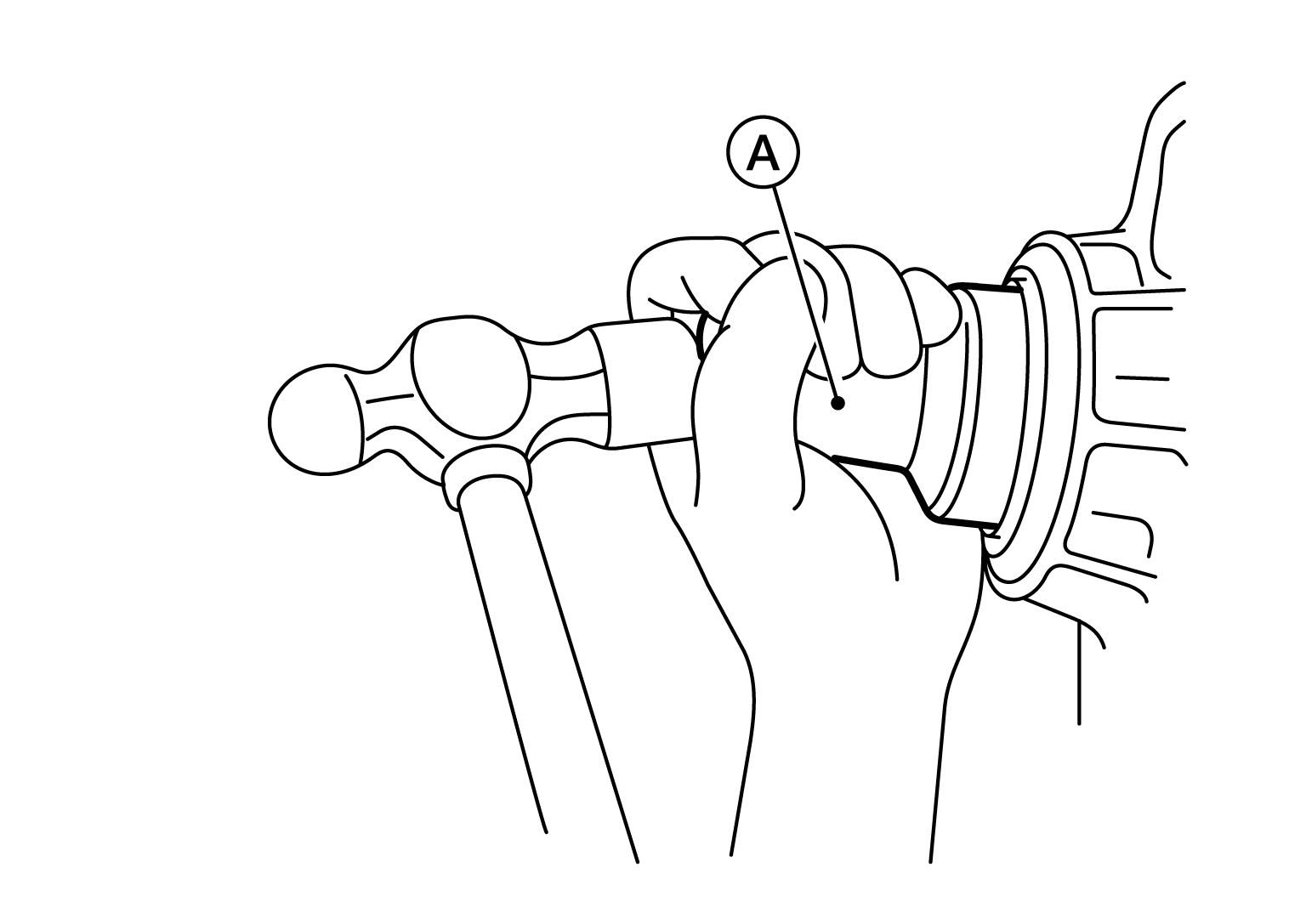

- As shown in the figure, use Tool (A) to drive rear oil seal into rear extension assembly until it is flush.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Tool (A)
|
: ST33400001 (J-26082)
|
CAUTION:
- Do not reuse rear oil seal.
- Apply ATF to rear oil seal.
